absoluteBLACK SRAM 1x Boost 148 Direct Mount Oval Chainring
🚚 Delivery Estimated between 26 February and 02 March.
The Original one and only absoluteBLACK premium Sram compatible Direct mount BOOST148 1X Oval narrow wide chainrings are designed for GXP, DUB and Long BB30 spindle cranks. Chainring is dedicated for Boost148 bikes ONLY. Converts a regular Sram crank into a Boost specific setup. (3mm offset). They are also 100-percent optimized for Eagle.
This oval chainring with special 3mm offset converts any Sram crank into Boost148 specific setup needed in Boost equipped bikes. Boost and non-Boost Sram cranks are identical. All the offset is achieved by the chainring itself, so you can use any Sram crank for this conversion. Our regular OVAL chainrings for Sram cranks have 6mm offset whether this one has 3mm, but both chainrings look very similar.
SRAM AXS, XX1, XX1 Eagle, X01, X01 Eagle, GX Eagle, NX Eagle, SX Eagle, X1, X0, X9, X7, S2210, S1400, Descendant, Stylo, Truvativ AKA and all DUB cranks.Cane Creek eeWings. GXP and Long spindle BB30. BOOST148 bikes ONLY. 9, 10, 11 and 12spd Eagle compatible.
cnc machined 7075 Txxx Aluminum. Long-lasting construction. Mud optimized
type II anodizing
52mm BOOST148 specific chainline. 3mm offset
Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
26T: 118mm ; 28T: 127mm ; 30T: 134mm ; 32T: 143mm ; 34T: 151mm
HOW TO MOUNT OUR OVAL CHAINRING TO SRAM GXP AND BB30 CRANK:
You need to unscrew these 3 torx t-25 bolts from the crank. Then remove the spider+chainring combo you currently have there. Clean the splines and put some grease on them. Position the chainring in place (note there is only one way to fit this chainring to Sram crank, so you don't have to worry how to do it). Close all 3 bolts to about 5-7Nm.

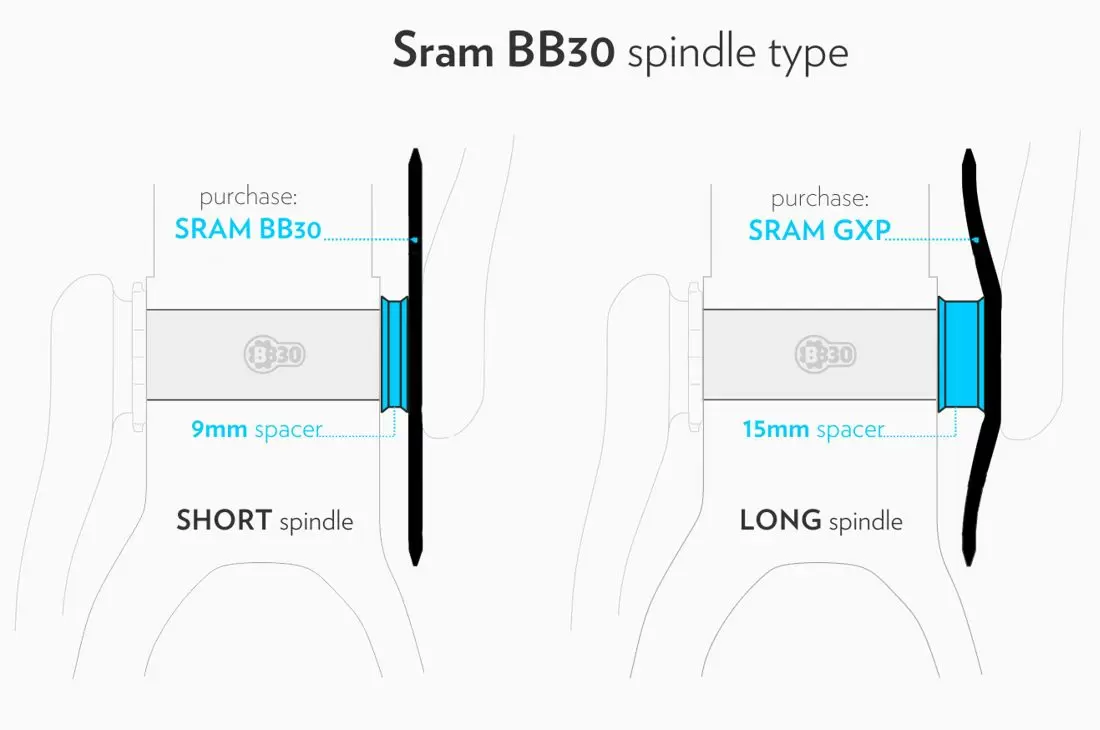

Check below which Sram compatible oval narrow wide chainring you will require for your Sram crank type. All Sram Cranks have exactly same mounting interface regardless the model or axle type. The only thing you need to determine is chainring offset.
It is ideal for 1x 9/10/11/12 system and Singlespeeds!. Oval (elliptical) chainring does not compromise the work of clutch mechanism in rear derailleur(video at the bottom). It also does not require chain tensioner when using in singlespeed application. Riding out of saddle on the uphill will become more pleasant. These chainrings also help you to recover after knee injuries as pedaling becomes smoother and less exhausting. It is the most advanced oval chainring currently on the market.
The most advanced, Patent Pending alternate wide and narrow teeth profile currently produced, guarantee minimum 12 months of excellent chain retention capabilities! We mean it. Always use a new chain with a new chainring.
The World's best oval (elliptical) mtb spiderless traction chainring - period!. Non circular chainrings, Non-round chainrings. Asymmetrical chainrings.
Designed in UK. Manufactured in Poland (EU).
10, 11 or 12spd chain for geared bike or 6-8 spd for SS. If used in 1x9 drivetrain - 10spd chain must be used to obtain the performance. (yes - 10spd chain will work great on 9spd cassette)
No. But if you want one then chain guide should have 2 teeth more capacity than nominal oval ring size.
ADVANTAGES OF OUR SPECIAL DIRECT MOUNT NARROW WIDE CHAINRINGS:
- Finest design to provide excellent weight to strength ratio
- One of a kind special oval shape (Patent Pending)
- Greatly improves traction and climbing abilities
- Unique Patent Pending alternate wide and narrow teeth profiles to keep your chain in place for minimum 12 months!
- Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
- They save weight because they don't need the spider and chainring bolts.
- The ability of installation of a smaller ring sizes that can't be mounted on regular spider.
- Superb quality and great look.
- You will ride faster using ovals. If you keep using round ring then others will get quicker.
- You will not "feel" the oval shape at all
- Reduces stress on knees
- We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.
