BMC Roadmachine ONE (White)
Regular priceRs. 575,000
Tax included.
🚚 Delivery Estimated between 05 December and 10 December.
Description
The Roadmachine’s frame and fork are constructed with our Premium Carbon, using TCC Endurance technology. Internal cable routing replaces the Roadmachine 01’s ICS technology, but the Premium Carbon D-Shape seatpost remains, for optimum seated compliance. This model has an ICS1 stem, compact aluminium bar, and Shimano’s latest Ultegra Di2 12-speed compact groupset, with CRD-321 Carbon tubeless ready wheels and 28mm tires for comfort and traction.
Features
- The most Capable version of our TCC Technology, Take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast

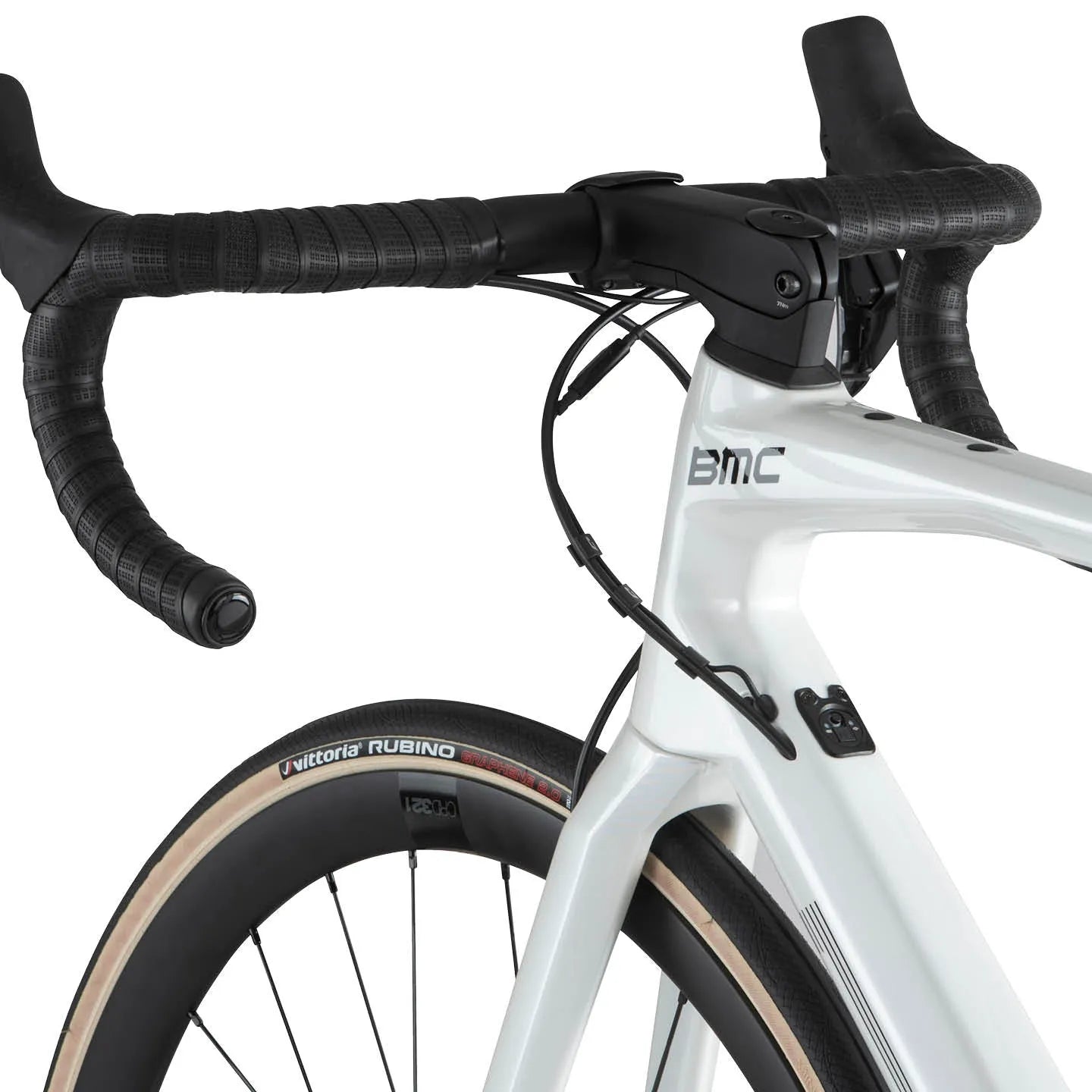

- The aesthetic simplicity and innovative functionality of the integrated cockpit is the epitome of swiss engineering and design. ICS keeps shifter wires and brake lines in thier place - out of sight

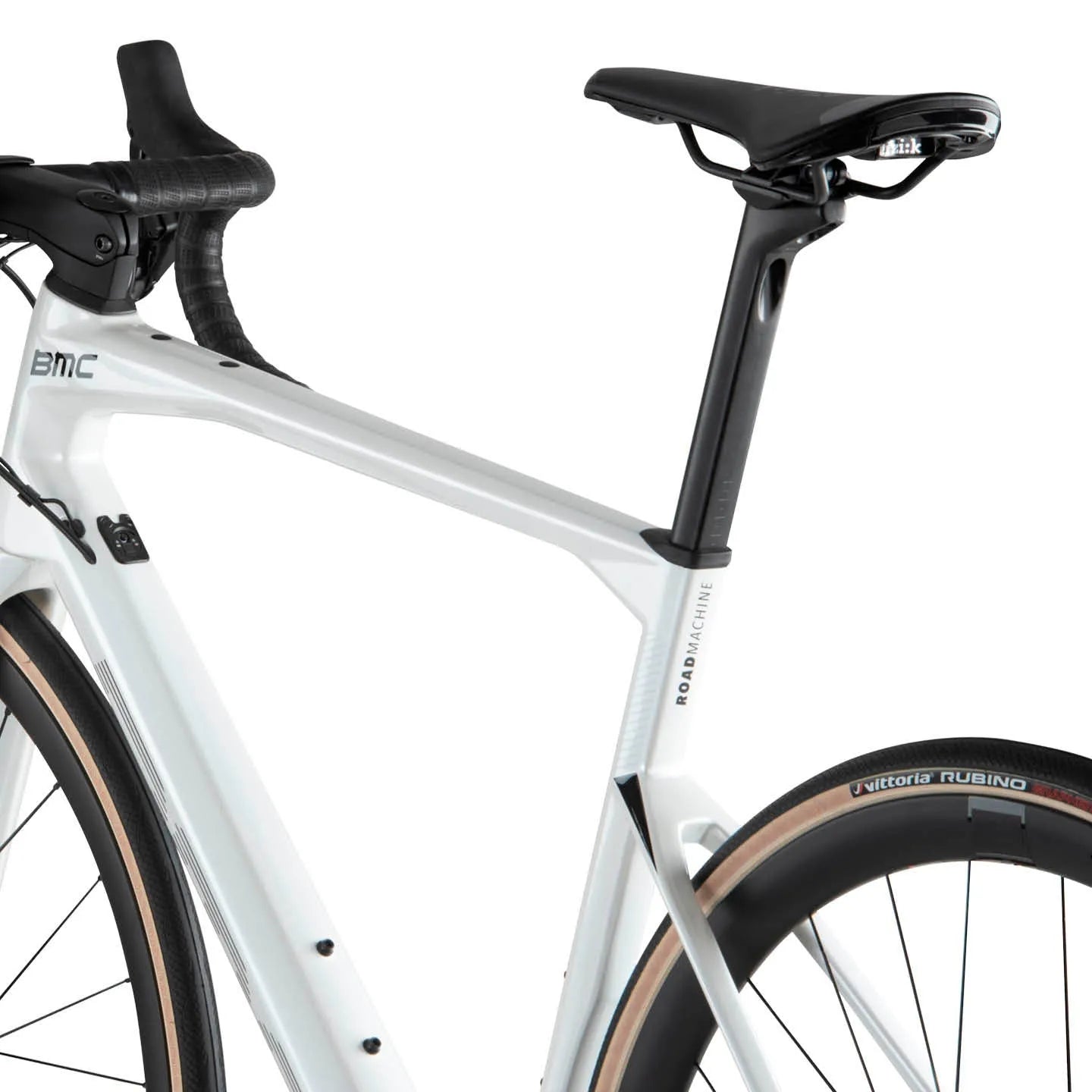

- The new D Shaped Compliance post's carbon layup was dsigned using TCC endurance technology for tailored comfort
- The seamless and functional integrated seatpost clamp is hidden within the frame
Specifications
- Intended Use- Endurance
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Carbon
- Fork Material- Carbon
Components
- Frame- Roadmachine Premium Carbon with Tuned Compliance Concept, Endurance, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
- Fork- Roadmachine Premium Carbon with Tuned Compliance Concept, Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle, 50mm Offset (Size 47-51) 45mm Offset (Size 54-61)
-
Chain- SHIMANO Ultegra 12spd
- Shift Levers- SHIMANO Ultegra Di2 12spd
- Cassette- SHIMANO Ultegra 12spd 11-34T
- Rear Derailleur- SHIMANO Ultegra Di2 12spd
- Handlebar- BMC RAB 02 Ergo Top Shape Compact Bend
- Stem- BMC ICS1 - Integrated Cockpit Design
- Saddle- Fizik Taiga
- Seatpost- Roadmachine Premium Carbon D-Shaped Seatpost, 15mm Offset
- Front Brake- SHIMANO Ultegra RT-MT800 Rotors (160/140)
- Rear Brake- SHIMANO Ultegra RT-MT800 Rotors (160/140)
- Front Wheel- CRD-321 Carbon Tubeless Ready 35mm
- Rear Wheel- CRD-321 Carbon Tubeless Ready 35mm
- Tire- VITTORIA RUBINO 28mm
Geometry
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
| Rider Height CM | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 516 | 541 | 562 | 586 | 610 | 644 |
| Reach MM (reach) | 374 | 382 | 386 | 390 | 394 | 398 |
| Seat Tube MM (st) | 420 | 457 | 500 | 522 | 539 | 573 |
| Top Tube MM (tt) | 522 | 532 | 546 | 556 | 568 | 583 |
| Head Tube MM (ht) | 112 | 139 | 156 | 181 | 206 | 242 |
| Seat Tube Angle (sa) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Head Angle (ha) | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM (fc) | 583 | 599 | 597 | 609 | 621 | 635 |
| Wheelbase MM (wb) | 982 | 999 | 997 | 1008 | 1020 | 1035 |
| BB Drop MM (drop) | 71 | 71 | 71 | 71 | 71 | 71 |
| Fork Length MM (fl) | 375 | 375 | 375 | 375 | 375 | 375 |
| Fork Rake MM (fr) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height mm | 719 | 750 | 782 | 805 | 825 | 859 |
| Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 430 |
