K-Edge Garmin Integrated Handlebar System Mounts

Description

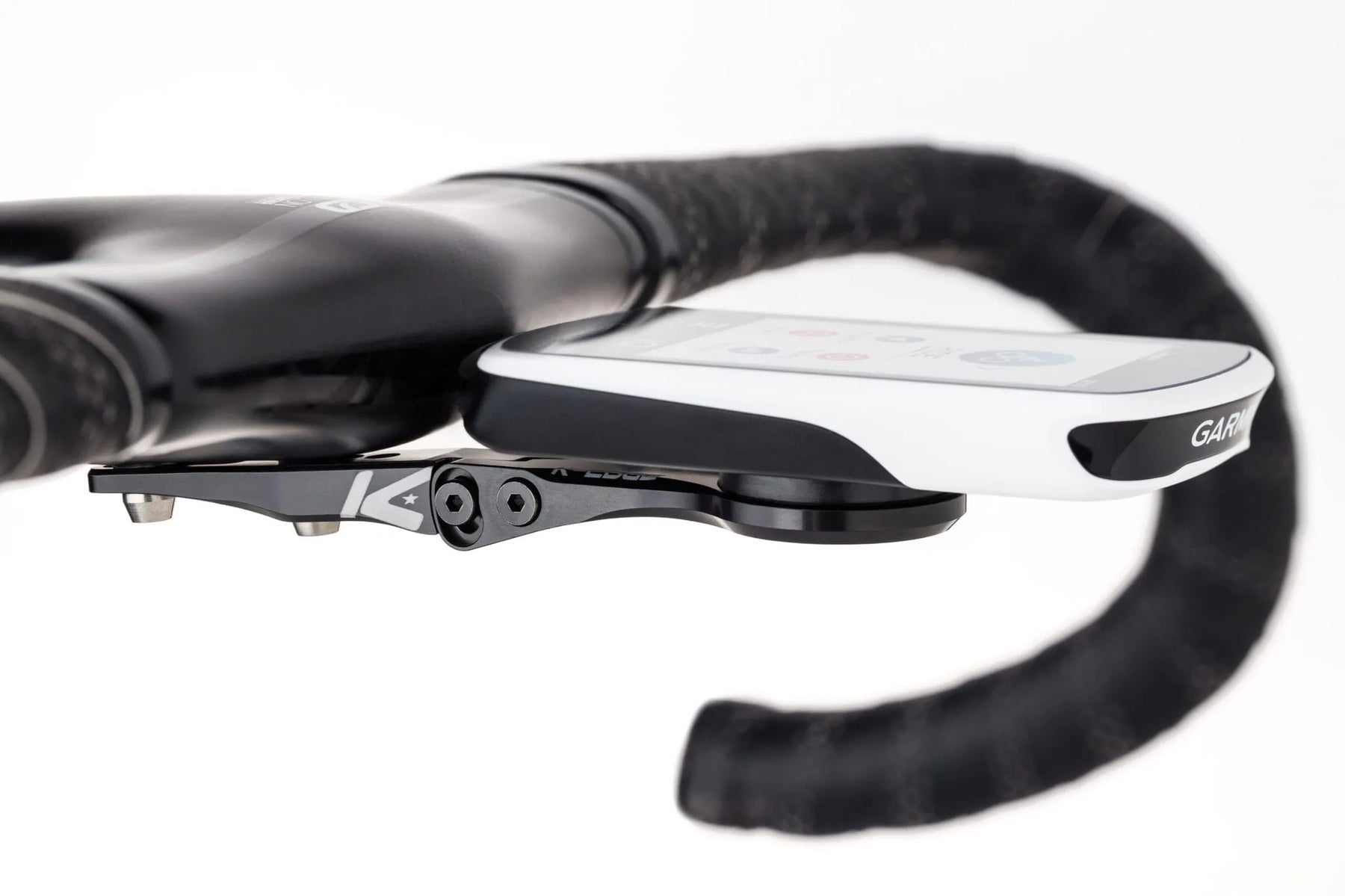

The ultimate one-piece bar/stem systems call for an elite-level mount that positions your computer out front and your light or camera is hidden underneath and aero. Rock-solid camera mount position improves video quality by removing camera shake.

Features

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro-level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• GARMIN-approved replaceable computer insert protects computer tabs
• Not combo compatible
• M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit
• Made in-house. Boise, Idaho USA

• Weight	42 g
  Dimensions	14.5 × 14.5 × 4 cm

Compatibility:

• All Garmin cycling computers.
• Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar). **M4x20mm 0.7 thread pitch hardware not included.**
• Click Here for our Canyon Fit Kit
• Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
• NOT COMPATIBLE WITH: CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM.

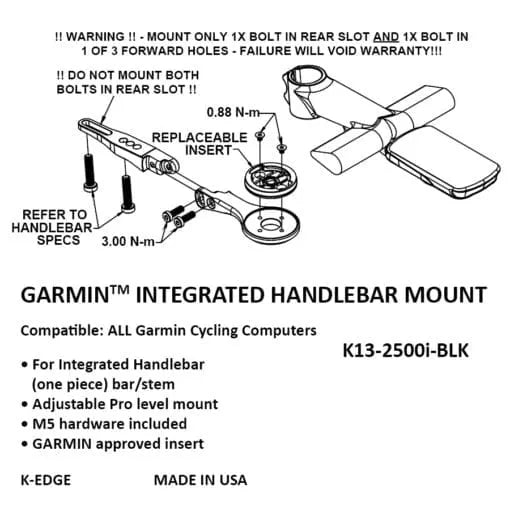

Installation:

• All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.
