Marin Four Corners (Green)
732425005
Regular priceRs. 81,999
Tax included.
🚚 Delivery Estimated between 06 December and 11 December.
Description

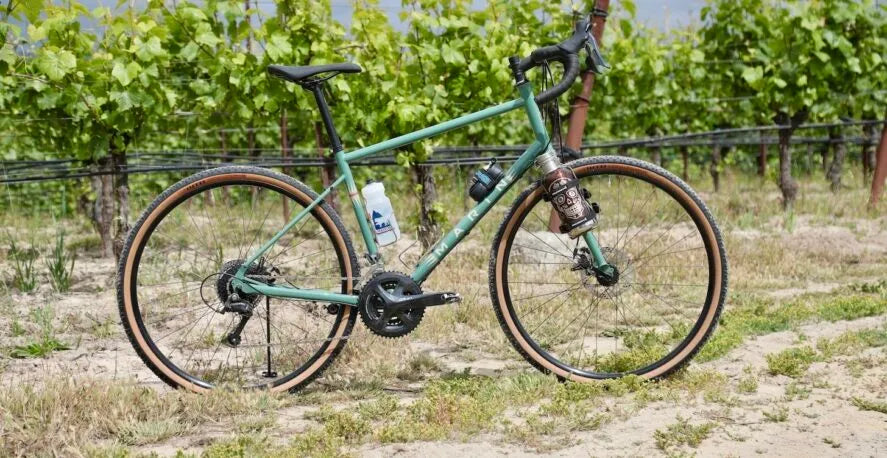

The Four Corners is built for the adventure rider looking to explore deep off of the beaten path, sleep outdoors, and be ready for whatever pavement, dirt road, or light singletrack is around the next corner. The heads-up bar position and generous braze-ons that make it possible to live on the bike for days at a time are equally at home on the daily commute
Specifications
- Intended Use- Gravel
- Wheel Size- 27.5"(XS,S) and 700c(M,L,XL)
- Braking System- Mechanical Disc
- Frame Material- Steel
- Fork Material- Steel
Components
- Frame- Utilitour Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount
- Fork- CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount
- Bottom Bracket- Shimano Hollowtech II
- Chain- KMC X9
- Crank- Shimano Sora Hollowtech II, 50/39/30T
- Shift Levers- Shimano Sora 3x9-Speed
- Cassette- Shimano HG-200-9 9-Speed, 11-34T
- Front Derailleur- Shimano Sora
- Rear Derailleur- Shimano Sora 9-Speed
- Grips/Bartape- Marin Comfort Bar Tape, Shock Absorbing Gel Pads

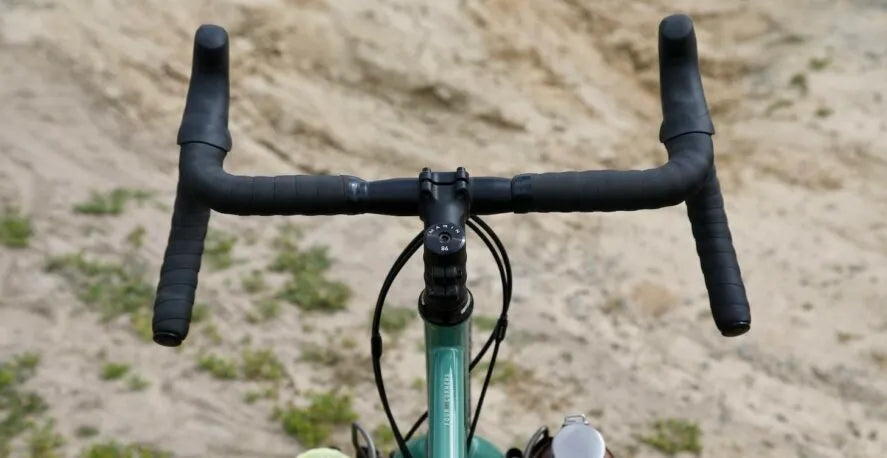

- Handlebar- Marin Butted Alloy, Compact 12º Flared Drop
- Stem- Marin 3D Forged Alloy
- Saddle- Marin MTB
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Rear Brake- Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
- Front Wheel- Marin Aluminum, Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum, Double Wall, Disc Specific
- Tire- WTB Resolute, 650B/700Cx42mm, Puncture Protection
- Pedal- Trekking Platform
Geometry
| XS | S | M | L | XL | |
| A STACK | 560 | 580 | 617 | 646.3 | 677.6 |
| B REACH | 376.7 | 381 | 403.3 | 412.6 | 426.6 |
| C HEADTUBE ANGLE | 70.5° | 70.5° | 71.5° | 71.5° | 71.5° |
| D HEADTUBE LENGTH | 177 | 198 | 198 | 229 | 262 |
| E SEATTUBE ANGLE | 74.5° | 73.5° | 73.5° | 72.5° | 72° |
| F SEATTUBE LENGTH | 381 | 422 | 462 | 495 | 528 |
| G TOPTUBE EFFECTIVE | 532 | 552.8 | 586.1 | 616.4 | 646.8 |
| H BB HEIGHT | 285 | 285 | 285 | 285 | 285 |
| I BB DROP | 53.5 | 53.5 | 72 | 72 | 72 |
| J CHAINSTAY | 432 | 432 | 450 | 450 | 450 |
| K WHEELBASE | 1030.4 | 1041.8 | 1081 | 1100 | 1125.1 |
| L STANDOVER HEIGHT | 666.55 | 706.38 | 744.53 | 777.26 | 809.8 |
| M FORK OFFSET | 43 | 43 | 49 | 49 | 49 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 400 | 400 | 420 | 440 | 440 |
| STEM LENGTH | 70 | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
