Description

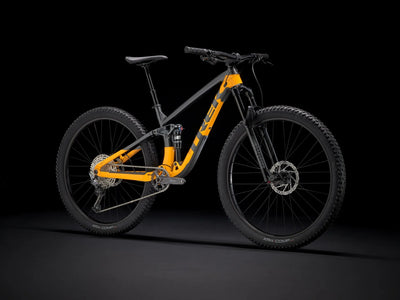

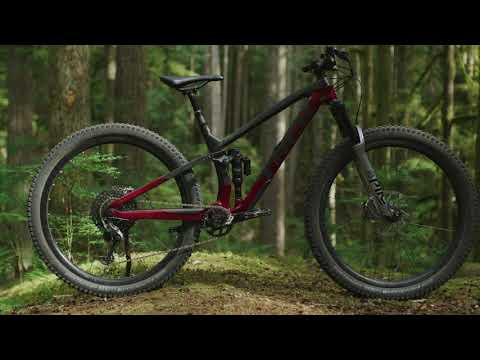

The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming front and rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
Features

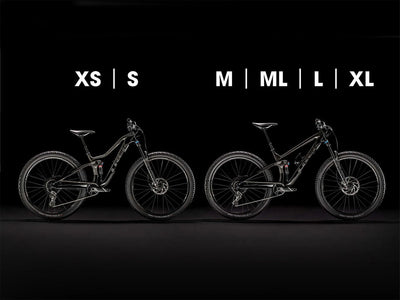

Will my bike have a curved top tube?
Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

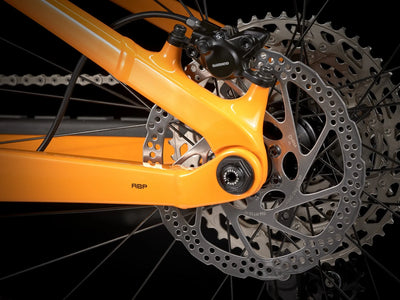

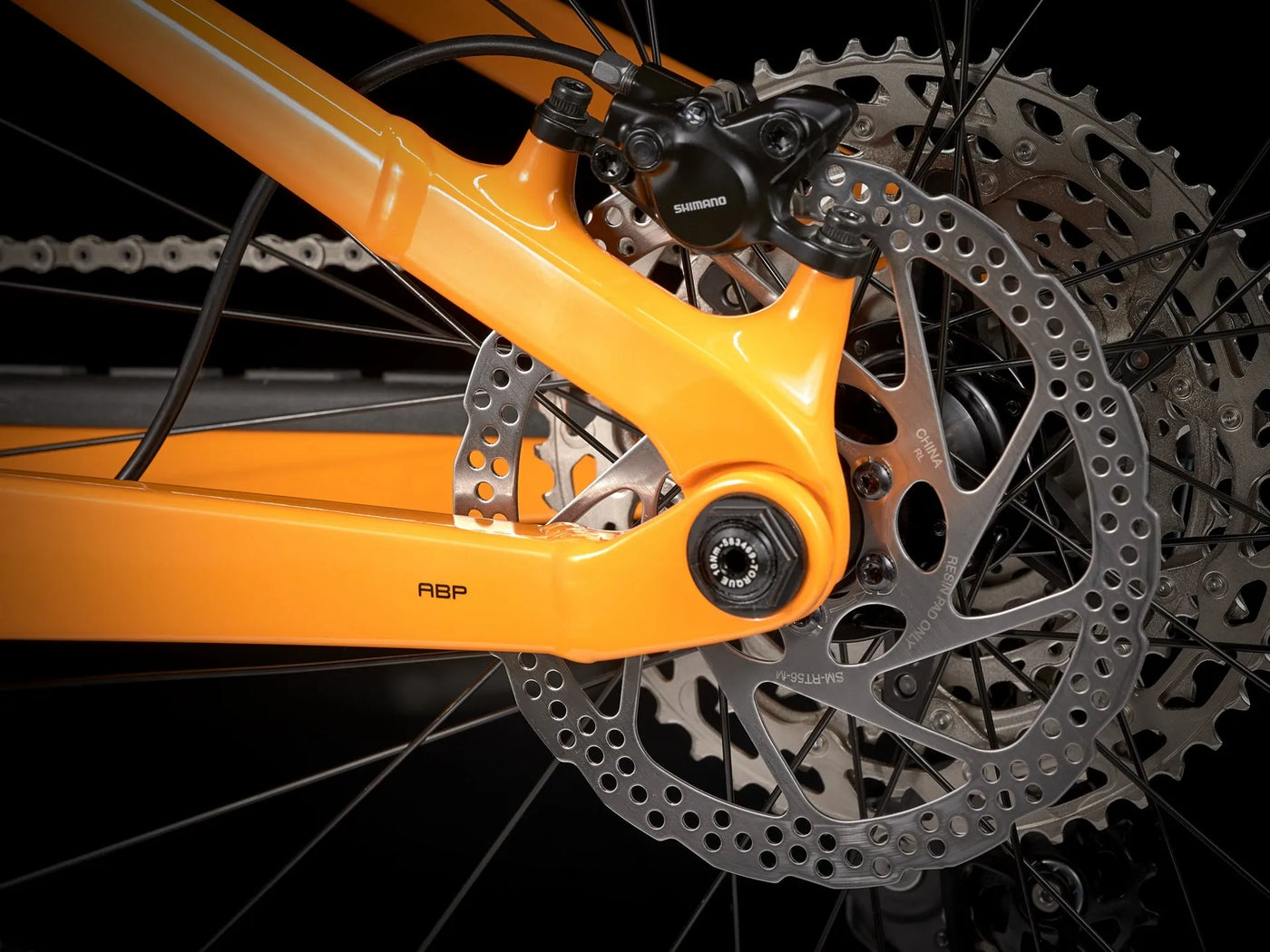

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

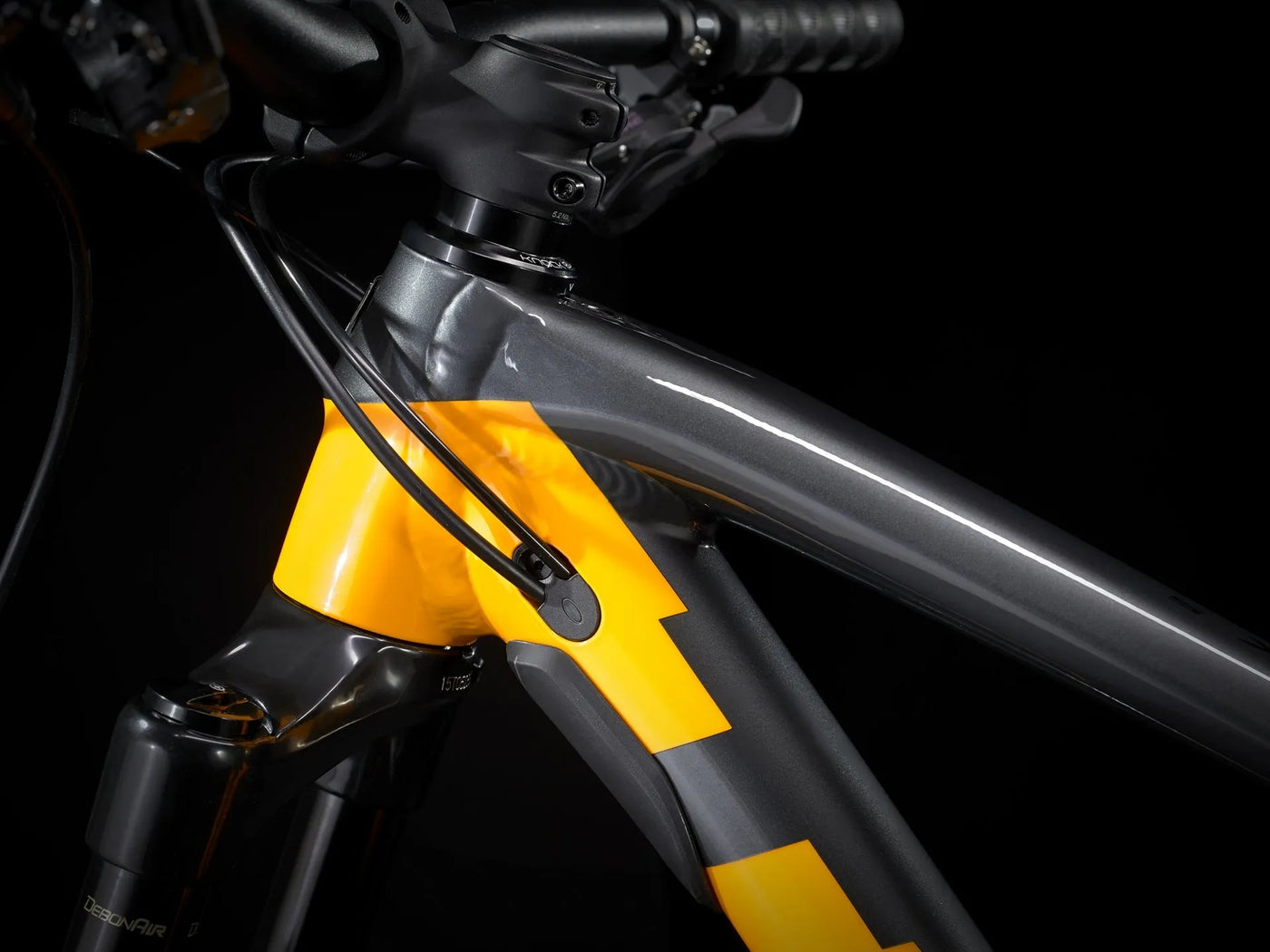

Straight Shot w/Knock Block
Trek's Straight Shot frame design optimises the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough
Specification
FRAMESET
| FRAME |

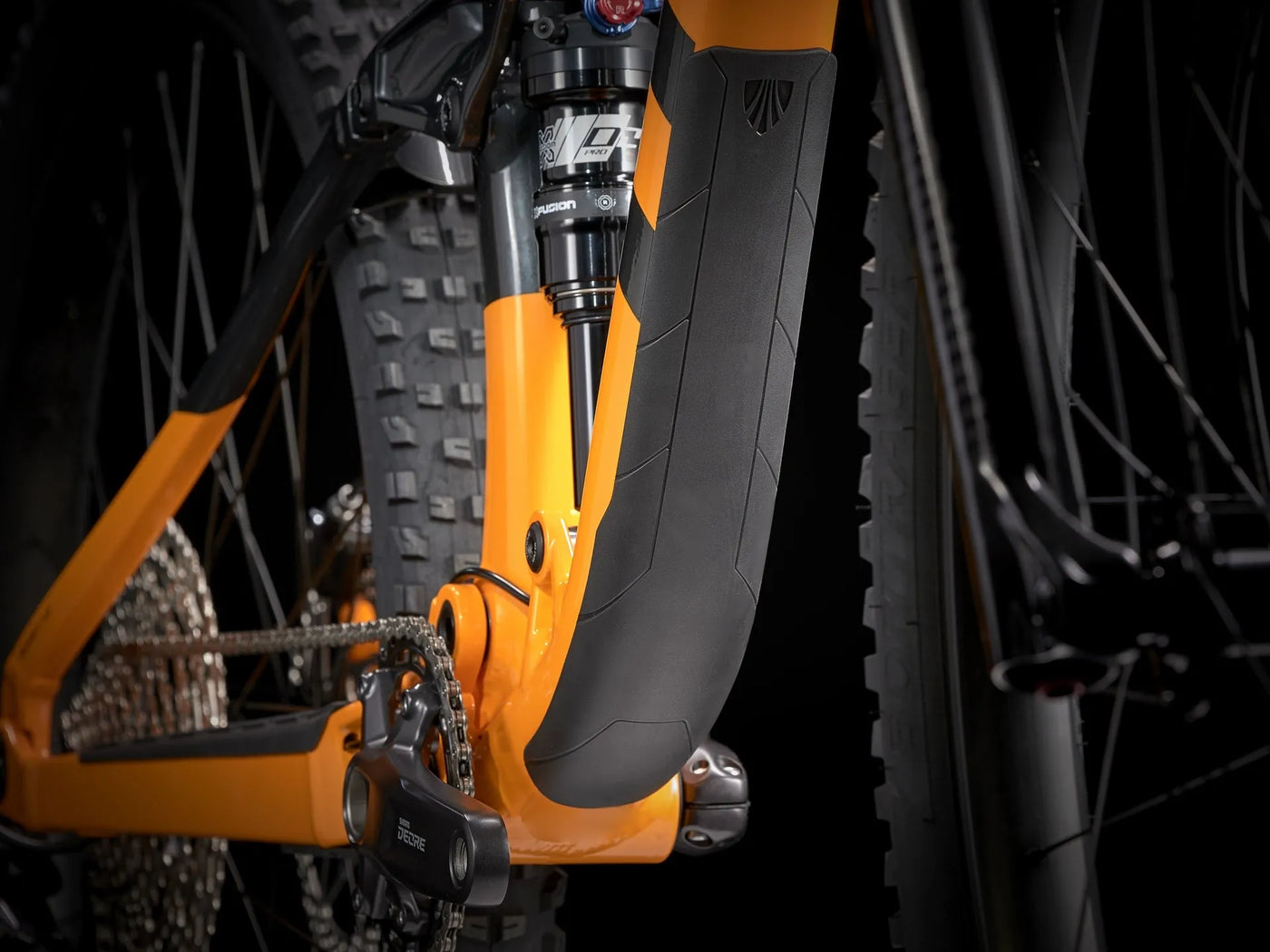

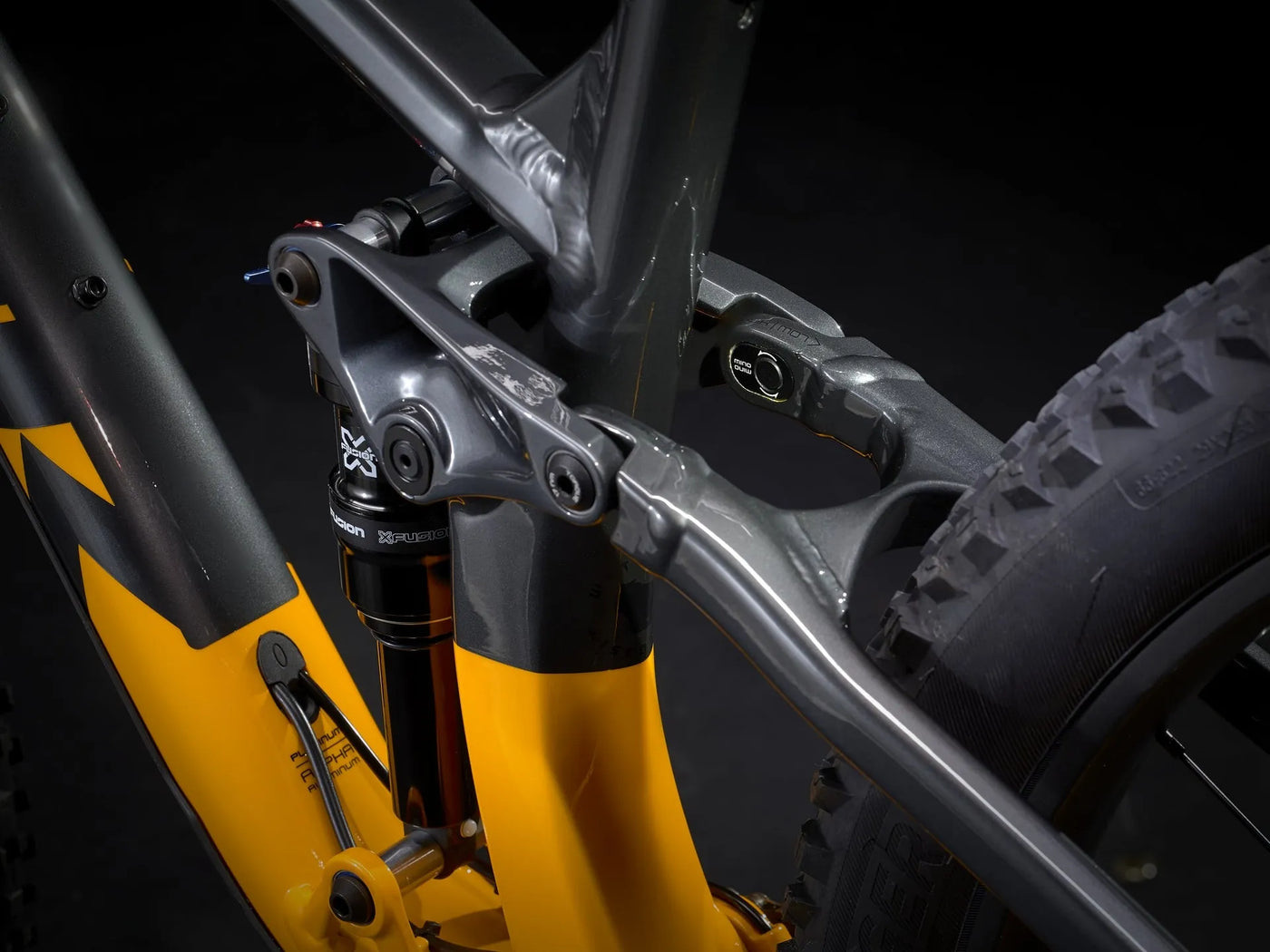

Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
|
SUSPENSION
| FORK |
RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel
|
| SHOCK |
- Size: M , ML , L
X-Fusion Pro 2, 2-position damper, 210mm x 55mm
- Size: M , ML , L
X-Fusion Pro 2, 2-position damper, 210x55 mm
|
DRIVETRAIN
| BOTTOM BRACKET |
Shimano MT500, 92 mm, PressFit
|
| CHAIN |
Shimano Deore M6100, 12-speed
|
| CRANK |
- Size: M , ML , L

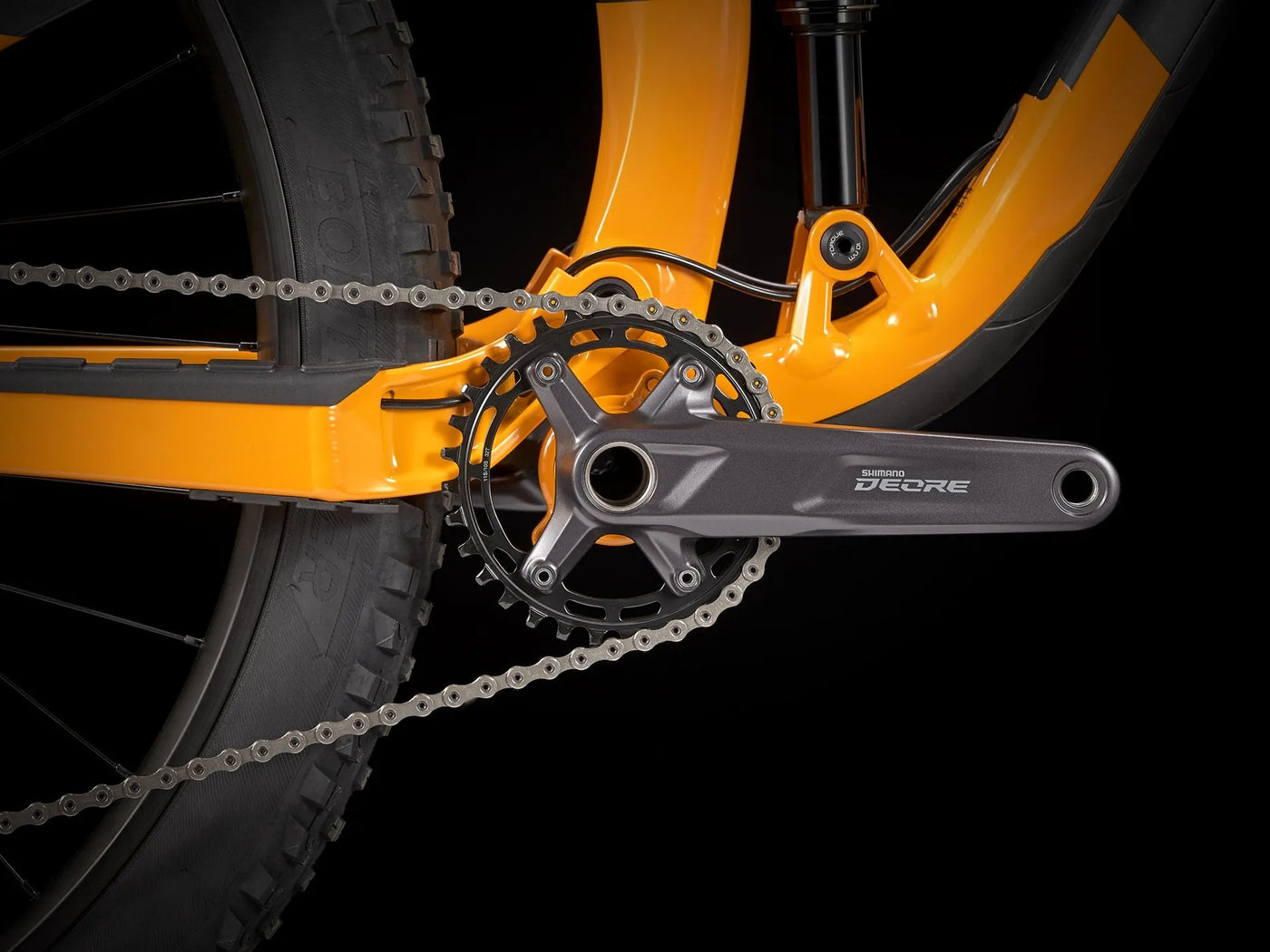

Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length
- Size: M , ML , L
Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length
|
| SHIFT LEVERS |
Shimano Deore M6100, 12-speed
|
| FRONT DERAILLEUR |
- |
| CASSETTE |
Shimano Deore M6100, 10-51, 12-speed
|
| REAR DERAILLEUR |
Shimano Deore M6100, long cage
|
COCKPIT
| GRIP/TAPE |
Bontrager XR Trail Comp, nylon lock-on
|
| HANDLEBAR |
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
| STEM |
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
|
| SADDLE |

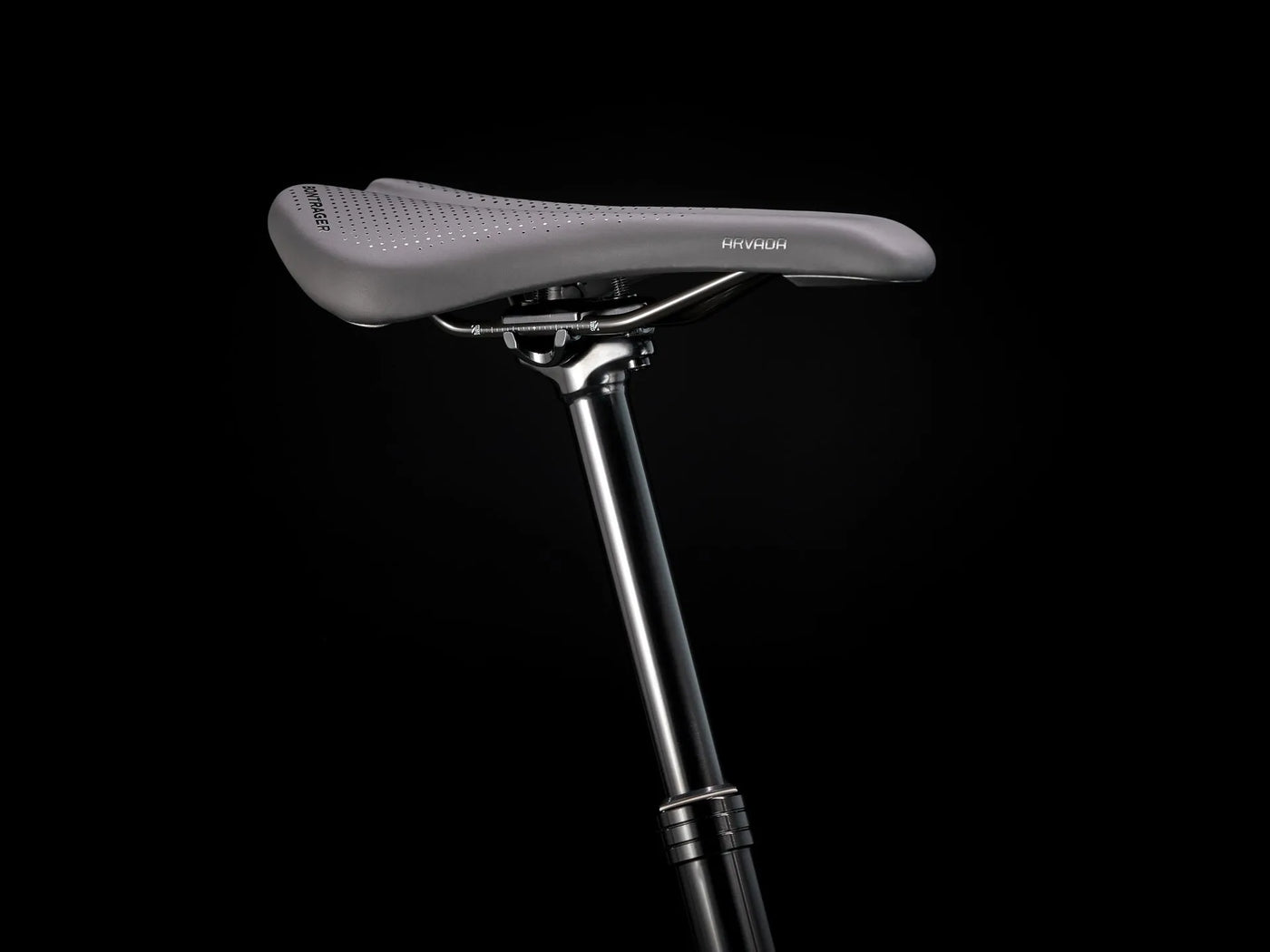

Bontrager Arvada, steel rails, 138 mm width
|
| SEATPOST |
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
|
BRAKES
| FRONT BRAKE |
Shimano hydraulic disc, MT201 lever, MT200 calliper
|
| REAR BRAKE |
Shimano hydraulic disc, MT201 lever, MT200 calliper
|
WHEELS & TIRES
| FRONT WHEEL |
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
|
| REAR WHEEL |
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
|
| FRONT TIRE |
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
|
| REAR TIRE |
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
|
ACCESSORIES

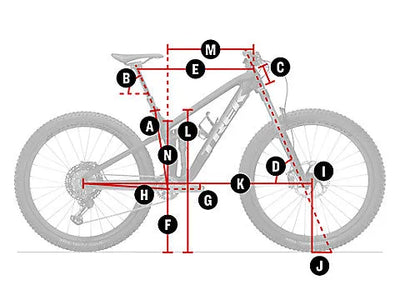

Geometry
| Frame size number |
17.5 |
17.5 |
18.5 |
18.5 |
19.5 |
19.5 |
| Frame size letter |
M |
M |
ML |
ML |
L |
L |
| Geometry position |
Low |
High |
Low |
High |
Low |
High |
| Wheel size |
29" |
29" |
29" |
29" |
29" |
29" |
| A — Seat tube |
42 |
42 |
43.5 |
43.5 |
45 |
45 |
| B — Seat tube angle |
67.5° |
68.0° |
67.5° |
68.0° |
67.5° |
68.0° |
| Effective seat tube angle |
75.0° |
75.5° |
75.0° |
75.5° |
75.0° |
75.5° |
| C — Head tube length |
10 |
10 |
10.5 |
10.5 |
10.5 |
10.5 |
| D — Head angle |
66.0° |
66.5° |
66.0° |
66.5° |
66.0° |
66.5° |
| E — Effective top tube |
60.3 |
60.2 |
61.9 |
61.8 |
63.4 |
63.3 |
| F — Bottom bracket height |
34 |
34.6 |
34 |
34.6 |
34 |
34.6 |
| G — Bottom bracket drop |
3.4 |
2.8 |
3.4 |
2.8 |
3.4 |
2.7 |
| H — Chainstay length |
43.7 |
43.6 |
43.7 |
43.6 |
43.7 |
43.6 |
| I — Offset |
4.3 |
4.3 |
4.3 |
4.3 |
4.3 |
4.3 |
| J — Trail |
11.9 |
11.6 |
11.9 |
11.6 |
11.9 |
11.6 |
| K — Wheelbase |
117.9 |
117.8 |
119.6 |
119.5 |
121.1 |
121 |
| L — Standover |
74.2 |
74.8 |
74.5 |
75.1 |
75 |
75.6 |
| M — Frame reach |
44 |
44.5 |
45.5 |
46 |
47 |
47.5 |
| N — Frame stack |
60.9 |
60.5 |
61.3 |
60.9 |
61.3 |
60.9 |
