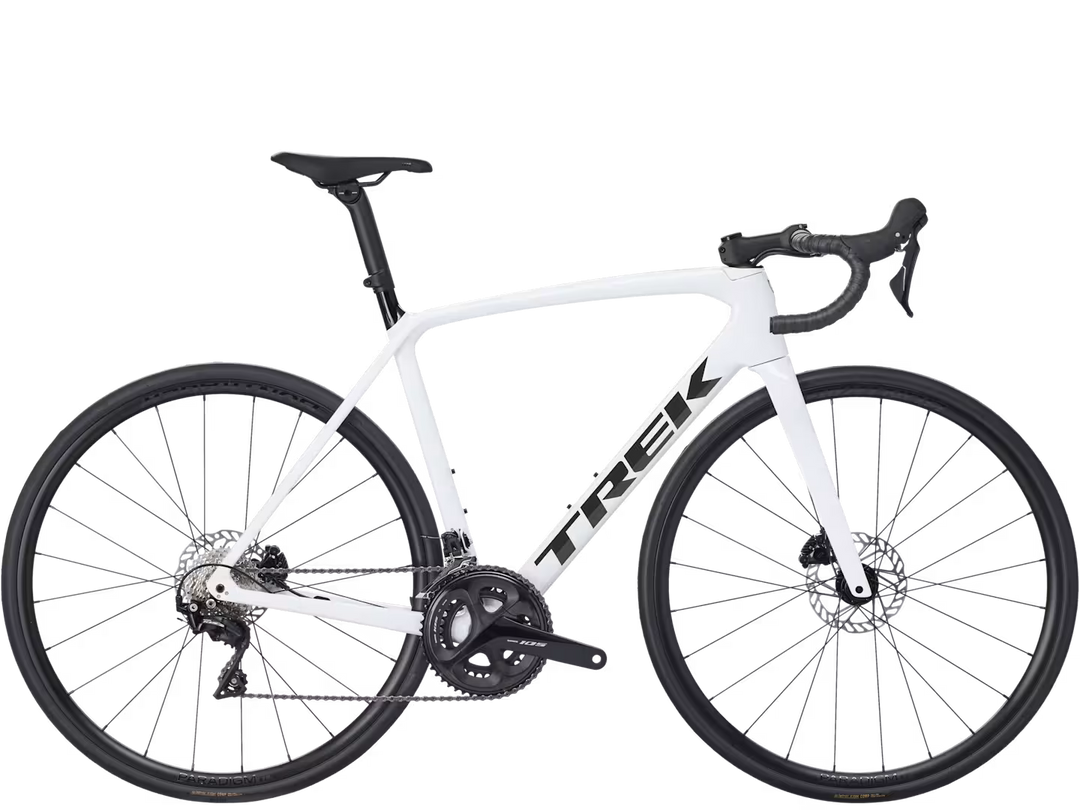

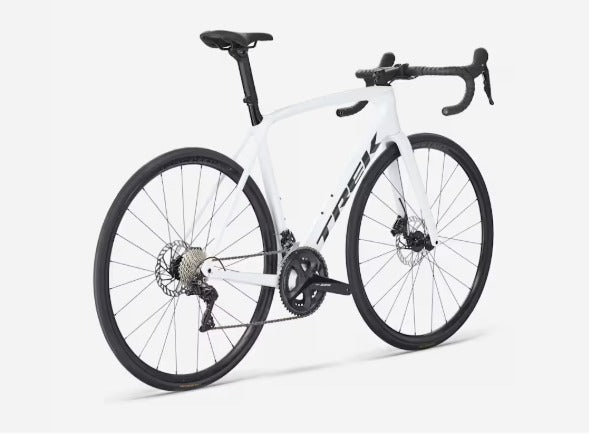

Trek Emonda SL 5 (Trek White)
5342178
This product cannot be added to your cart online. Please contact our Product Specialists on WhatsApp at (+91) 80471 83232 and we'll be happy to assist you with availability, sizing, compatibility, and any questions you may have.
An ultralight carbon road bike for riders who love climbing and want Shimano 105 11-speed shifting, disc brakes and a frame built to be light and lively.
Overview
The Émonda SL 5 is built on an ultralight 500 Series OCLV Carbon frame with Ride Tuned performance tube optimisation, a tapered head tube, internal routing and DuoTrap S compatibility, paired with a full carbon fork with a tapered carbon steerer.
The drivetrain is a 2x11 Shimano 105 R7000 setup with 50/34 compact chainrings and an 11-30 cassette. Bontrager Paradigm SL tubeless-ready rims carry 700x28 mm tyres, and disc brakes with 160 mm rotors handle stopping.
In Trek White it suits riders who want a light, responsive road bike for climbs, group rides and sportives.
Why You'll Like It
An ultralight carbon frame
The 500 Series OCLV Carbon frame is tuned for low weight and a lively feel, so the bike climbs and accelerates readily.
Dependable Shimano 105
Shimano 105 R7000 shifting with a compact 50/34 crankset and an 11-30 cassette gives a well-spaced gear range for climbs and fast flats.
Disc braking
Disc brakes with 160 mm rotors give controlled stopping in dry and wet conditions.
Ready for sensors
DuoTrap S compatibility lets you add a speed and cadence sensor.
Who Is It For?
Road riders who like to climb and want a light carbon bike for hilly rides, group rides and sportives, and riders stepping up from an aluminium road bike.
The compact gearing and 28 mm tyres suit hilly Indian roads and patched tarmac.
Good to Know
- Available in 50, 52, 54 and 56. Crank length, handlebar width and stem length change with frame size, so check the size chart before ordering.
- The frame fits tyres up to 28 mm (as measured; see the manual for details).
- Regular chain cleaning and lubrication keeps the 11-speed drivetrain shifting smoothly.
Technical Specifications
- Intended Use: Race
- Wheel Size: 700c
- Braking System: Hydraulic Disc
- Frame Material: Carbon
- Fork Material: Carbon
- Frame: Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
- Fork: Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
- Shock: N/A - rigid frame and fork
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Chain: Shimano 105 HG601, 11-speed
- Crank: Size 47, 50, 52, 54: Shimano 105 R7000, 50/34 (compact), 165 mm length. Size 56, 58: Shimano 105 R7000, 50/34 (compact), 175 mm length
- Shift Levers: Shimano 105 R7020, 11-speed
- Cassette: Shimano 105 R7000, 11-30, 11 speed
- Front Derailleur: Shimano 105 R7000, braze-on
- Rear Derailleur: Shimano 105 R7000, short cage, 30T max cog
- Grip/Tape: Bontrager Supertack Perf tape
- Handlebar: Size 47, 50, 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width. Size 54, 56, 58: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
- Stem: Size 47: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length. Size 50: 80 mm length. Size 52, 54: 90 mm length. Size 56: 100 mm length. Size 58: 110 mm length (all Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree)
- Saddle: Verse Short, steel rails, 145 mm width
- Seatpost: Size 47, 50, 52, 54: Bontrager alloy seat mast cap, 10 mm offset, short length. Size 56, 58: Bontrager alloy seat mast cap, 10 mm offset, tall length
- Front Brake: Brake rotor: Tektro, 6-bolt, 160mm
- Rear Brake: Brake rotor: Tektro, 6-bolt, 160mm
- Front Wheel: Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve; Hub front: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle; Skewer front: Bontrager Switch thru axle; Spokes: 14 g stainless steel, black
- Rear Wheel: Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve; Hub rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle; Skewer rear: Bontrager Switch thru axle, removable lever; Spokes: 14 g stainless steel, black
- Front Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm; or Bontrager Aeolus Comp, Hardcase Lite, wire bead, 60 tpi, 700x28 mm
- Rear Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm; or Bontrager Aeolus Comp, Hardcase Lite, wire bead, 60 tpi, 700x28 mm
- Weight: 56 - 9.10 kg / 20.07 lbs
