Description

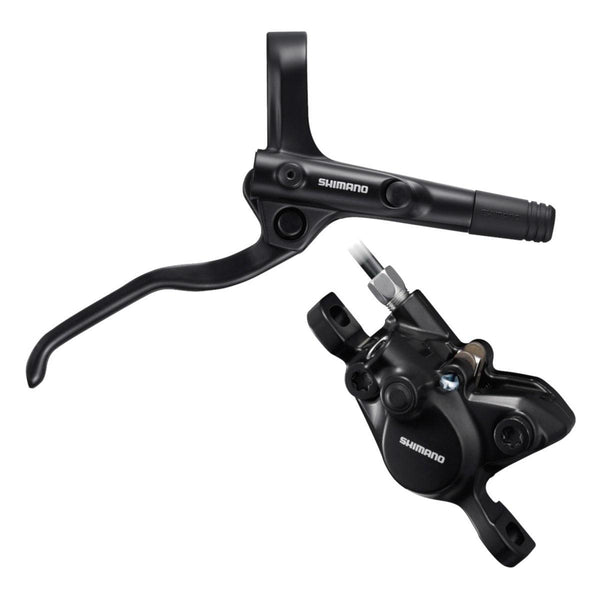

SHIMANO - Hydraulic Disc Brake Lever - 3-Finger - Steel Lever

With braking power tuned for entry level riders and a lever reach designed for smaller hands, the SHIMANO ALTUS BL-MT200 is ideal for a wide variety of flat bar bicycles.

Feature

SHIMANO Hydraulic Disc Brake performance
Versatile design matches numerous bike styles
Slender steel 2/3-finger brake lever
Braking power adjusted for entry level riders
90% of MT400 kit
Accessible lever reach designed for small hands
Minimum reach 75 mm
Reliable braking performance with less noise
Easy, quick and clean installation
Funnel bleeding

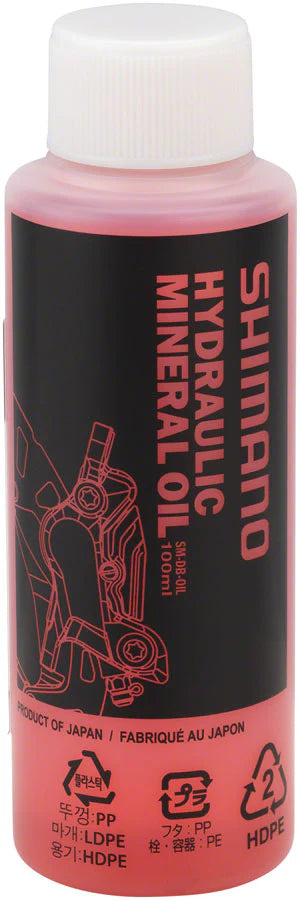

SHIMANO Hydraulic Mineral Oil
Less pad rattling noise
40% wider pad clearance
Cable Length 170 cm.

Specification BL-MT200

Series		SHIMANO
Model no.		BL-MT200
Brake type		Hydraulic disc brake
Lever size (Finger)		3
Color	1	Black
	2	-
	3	-
Brake hose (Kit)		SM-BH59-JK-SS
Hose joint		Straight
Brake hose color (kit)	1	Black
Brake hose color (kit)	2	-
J-Kit spec (for OEM)		-
SERVOWAVE		-
Reach adjust	Toolless	-
Reach adjust	Tool	X
Free stroke adjust		-
Compatible shifting lever mount	Clamp band	-
	I-SPEC B	-
	I-SPEC II	-
	I-SPEC EV	-
Clamp band	Open clamp	-
Recommended brake caliper		BR-MT200 / BR-UR300
Oil		SHIMANO Mineral
Funnel bleeding		X
Clamp bolt	Material	Steel
Clamp bolt	Finish	Plated
Brake lever	Material	Steel
Brake lever	Finish	Painted
Master cylinder	Material	Aluminum
Master cylinder	Finish	Painted
Average weight (kit for front 800 mm, w/160 mm recommend RT, w/lockring, w/o adapter, w/2bolts, w/Resin pad)		-
Note		-

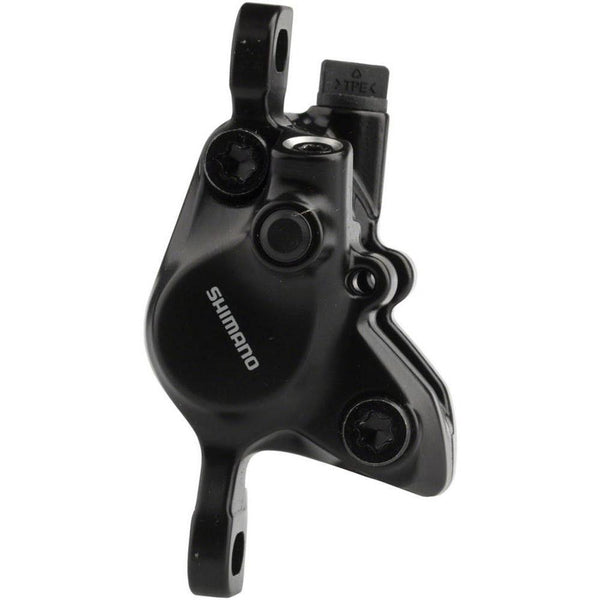

Specification BR-MT200

Series		SHIMANO
Model no.		BR-MT200
Color	1	Black
	2	-
	3	-
Brake type		Hydraulic disc brake
Brake hose (kit)		SM-BH59-JK-SS
Hose joint		Straight
Brake hose color (kit)	1	Black
Brake hose color (kit)	2	-
J-Kit spec (for OEM)		X
ICE TECHNOLOGIES pad compatible caliper		-
Pad	Standard 1	B01S Resin
	Standard 2	-
	Option 1	-
	Option 2	-
Fixing BT Spec for rear mount	10 mm mount	-
	15 mm mount	-
	20 mm mount	-
	25 mm mount	-
	30 mm mount	-
	35 mm mount	-
Recommended brake lever		BL-MT201 BL-MT200

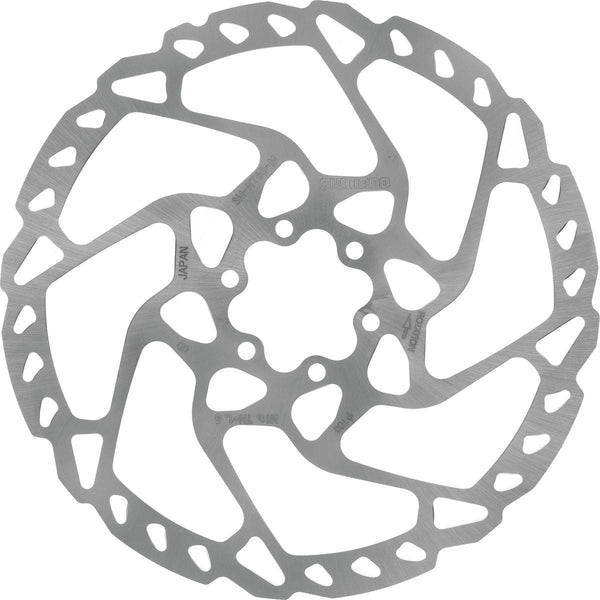

Recommended disc brake rotor		SM-RT10 SM-RT26
Oil		SHIMANO Mineral
ONE WAY BLEEDING		X

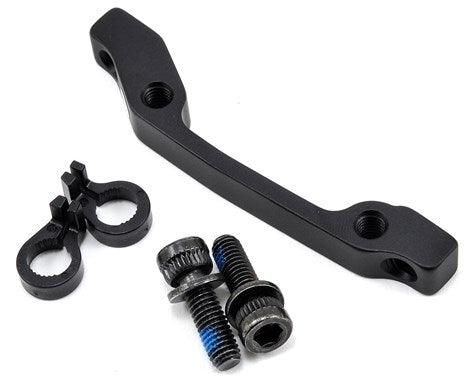

Mount type (available for IS mount with mount adapter)		Post-type
Piston		2
Piston material		Resin
Caliper	MONO-BODY	-
	Material	Aluminum
	Finish	Painted
Caliper fixing bolt	Material	Steel
	Tool size	5 mm
	Anti loosen method	Snap ring
Pad mount		Split pin
Average Weight (kit for front 800mm, w/160mm recommend RT, w/lock ring, w/o adapter, w/2bolts, w/Resin pad)		-
Note		-
