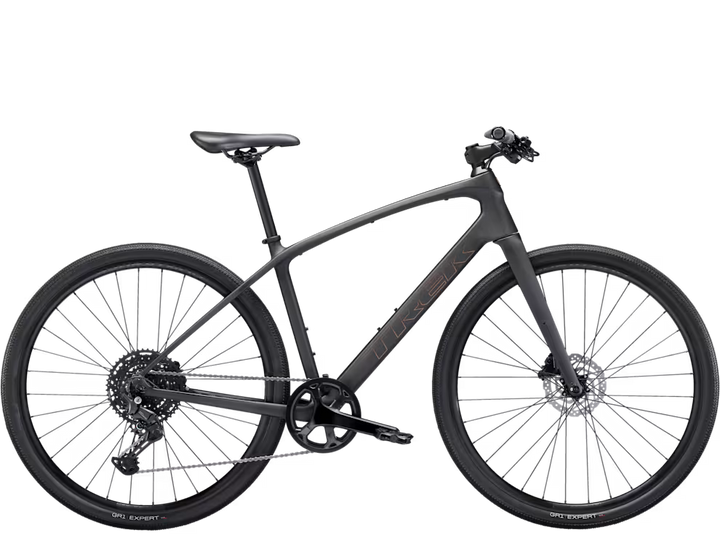

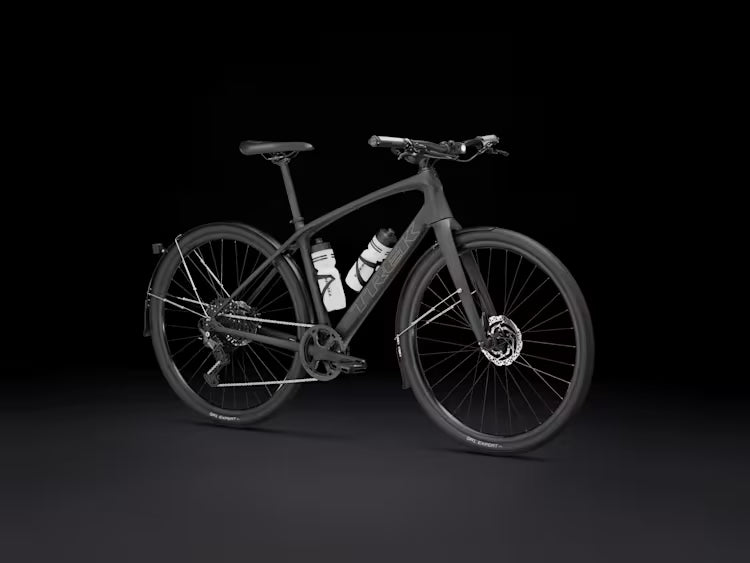

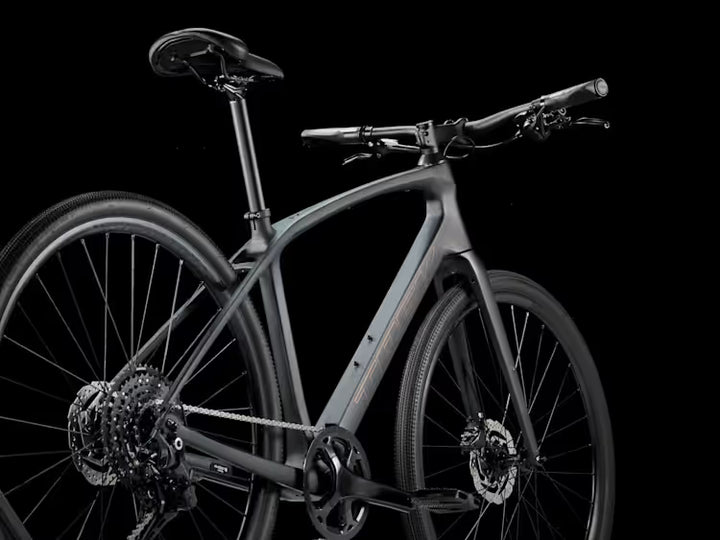

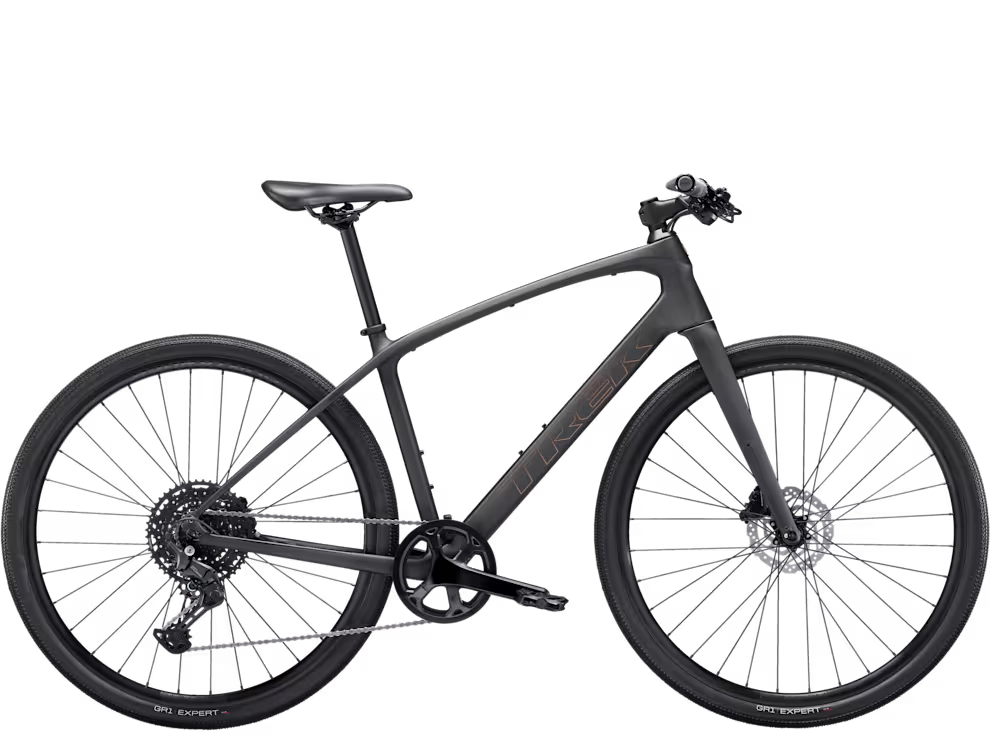

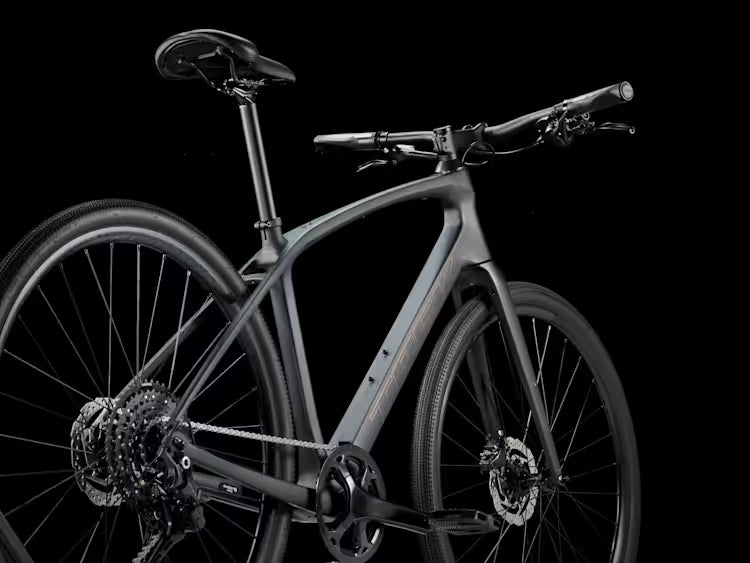

Trek FX Sport SL 4 (Matte Onyx Carbon)
5323694
This product cannot be added to your cart online. Please contact our Product Specialists on WhatsApp at (+91) 80471 83232 and we'll be happy to assist you with availability, sizing, compatibility, and any questions you may have.
A lightweight carbon fitness bike for riders who want flat-bar comfort with quick, efficient speed, with a 1x10 Shimano CUES drivetrain and hydraulic disc brakes for everyday fitness and commuting.
Overview
The FX Sport SL 4 is built around a 400 Series OCLV Carbon frame and a carbon fork, with internal cable routing, a 3S chain keeper and hidden mudguard mounts. It is designed to give fitness riders and commuters a light, lively bike with upright flat-bar handling.
The drivetrain is a 1x10 Shimano CUES setup with an 11-48 LINKGLIDE cassette and a 42T narrow-wide chainring. Shimano hydraulic disc brakes with 160 mm CenterLock rotors handle stopping, and Bontrager Paradigm tubeless-ready wheels carry GR1 Expert 700x40 mm tyres.
In Matte Onyx Carbon it suits riders who want a fast, comfortable bike that can handle a daily commute and a longer weekend fitness ride.
Why You'll Like It
A carbon frame and fork
The 400 Series OCLV Carbon frame and carbon fork keep the bike light and take the edge off rough roads.
A wide-range 1x10 drivetrain
Shimano CUES shifting with an 11-48 LINKGLIDE cassette gives you a wide range of gears from one shifter, without a front derailleur.
Hydraulic disc brakes
Shimano hydraulic discs with an MT201 lever give strong, controllable stopping in dry and wet conditions.
Tubeless-ready wheels and wider tyres
Paradigm rims and 700x40 mm GR1 Expert tyres add comfort and grip, and the rims are tubeless-ready.
Ready for accessories and sensors
Mudguard mounts and DuoTrap S compatibility let you add mudguards and a speed and cadence sensor.
Who Is It For?
Fitness riders who want a light bike with upright handling for fast loops and longer rides, and commuters who want to keep up pace through city traffic. Hydraulic discs and mudguard mounts suit wet monsoon roads.
It also suits road riders who prefer a flat bar, and anyone stepping up from an aluminium hybrid who wants a carbon frame and a modern drivetrain.
Good to Know
- Handlebar width and stem length change with frame size, so check the size chart before ordering.
- The tyres fit up to 42 mm without mudguards, or 40 mm with mudguards.
- Bontrager City pedals are included, and the rims use Presta valves, so a Presta-compatible pump head is needed for pressure checks.
- Regular chain cleaning and lubrication keeps the 1x10 CUES drivetrain shifting smoothly.
Technical Specifications
- Intended Use: Fitness
- Wheel Size: 700c
- Braking System: Hydraulic Disc
- Frame Material: Carbon
- Fork Material: Carbon
- Frame: 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew
- Fork: Carbon, hidden mudguard mounts, flat mount disc, 100x5 mm thru-skew
- Shock: N/A - rigid frame and fork
- Chain: Shimano LG500
- Crank: Prowheel alloy, 42T narrow-wide ring, 175 mm length
- Shift Levers: Shimano CUES U6000 w/optical gear display, 10-speed
- Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Front Derailleur: N/A - 1x drivetrain
- Rear Derailleur: Shimano CUES U6000 GS
- Grip/Tape: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
- Handlebar: Size S: Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width. Size M, L: Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
- Stem: Size S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length. Size L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
- Saddle: Bontrager H1
- Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
- Front Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper; Brake rotor: Shimano RT10, CenterLock, 160 mm
- Rear Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper; Brake rotor: Shimano RT10, CenterLock, 160 mm
- Front Wheel: Rim: Bontrager Paradigm, Tubeless-Ready, 32-hole, 21 mm width, Presta valve; Hub front: Formula CL-51 alloy, 100x5 mm; Skewer front: 135x5 mm bolt-on; Spokes: 14 g stainless steel, black
- Rear Wheel: Rim: Bontrager Paradigm, Tubeless-Ready, 32-hole, 21 mm width, Presta valve; Hub rear: Formula CL-52 alloy, 135x5 mm; Skewer rear: 169x5 mm bolt-on; Spokes: 14 g stainless steel, black
- Front Tire: Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
- Rear Tire: Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
- Pedal: Bontrager City pedals
- Weight: M - 10.50 kg/23.15 lb
Additional Information
- Country of Origin: Taiwan
- Imported By: Trek Bicycle India Pvt Ltd, Ground Floor, Unit 17 & 18, Bestech Business Center, Badshahpur Sohna Rd Hwy, Sector 48c, Gurugram, Haryana - 122001, India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Bicycles
