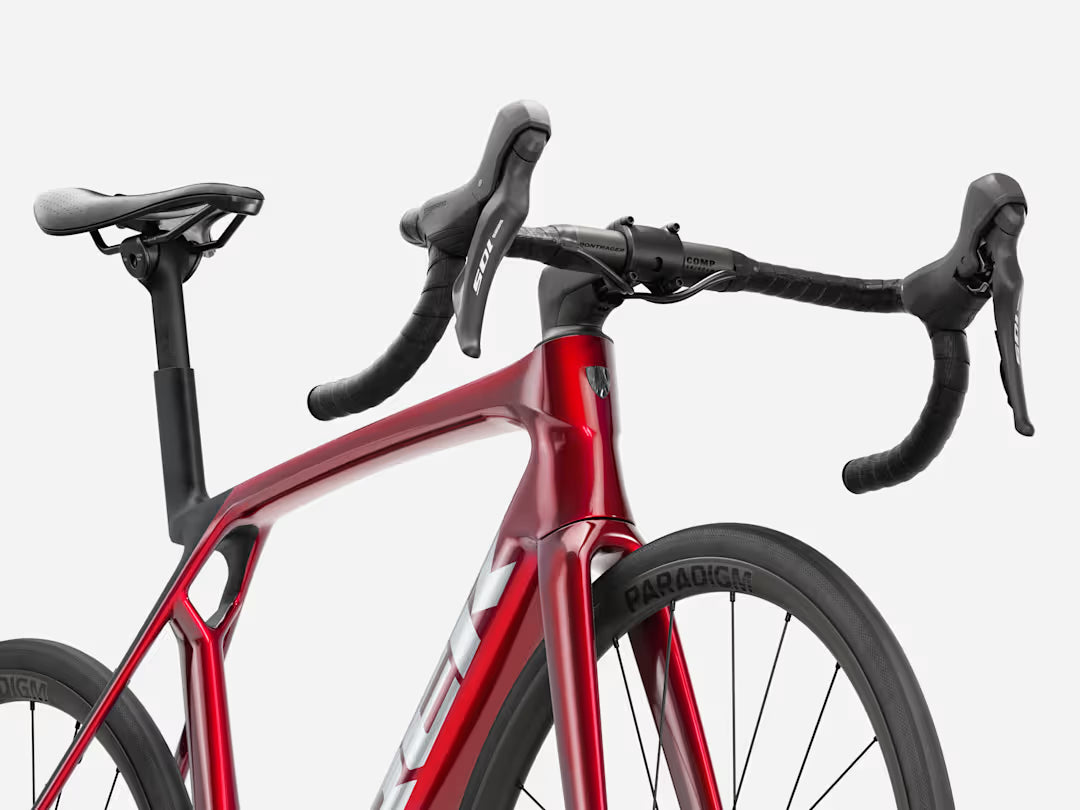

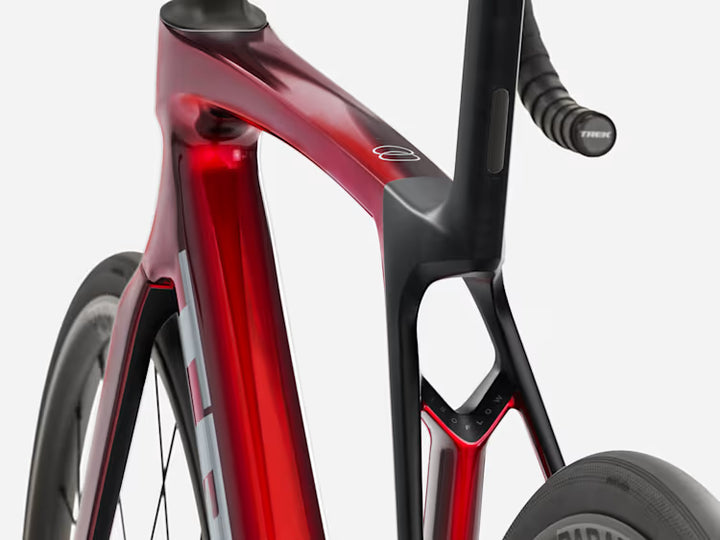

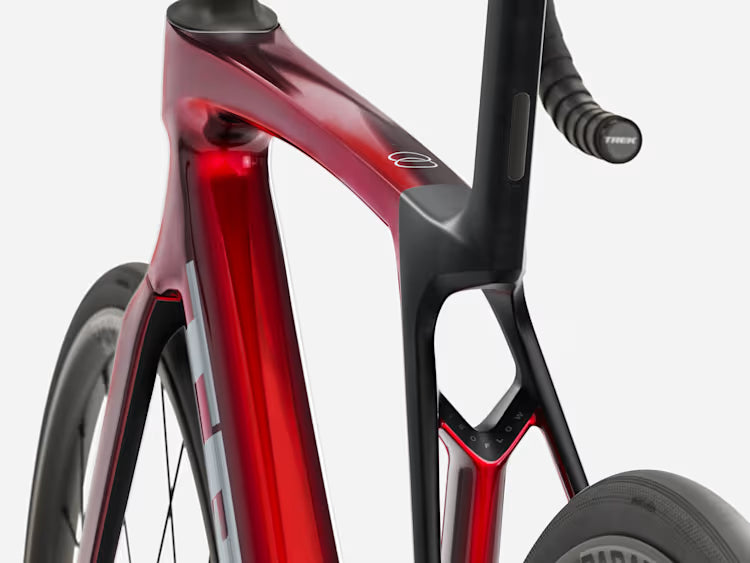

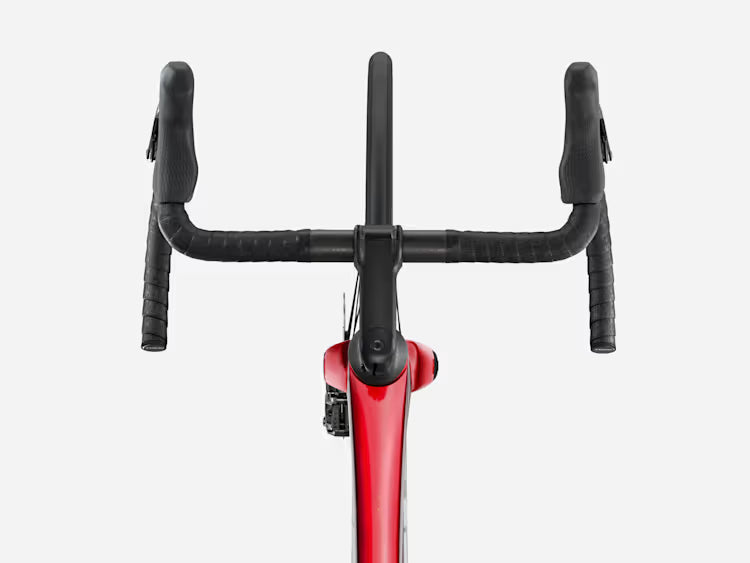

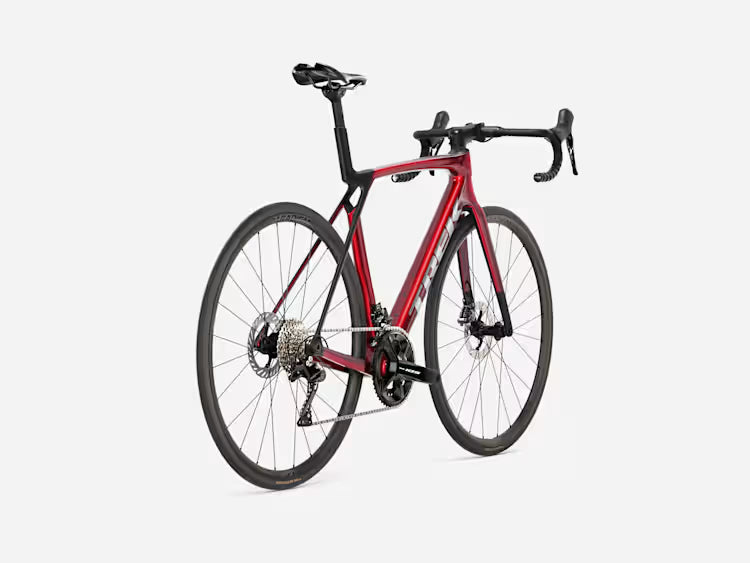

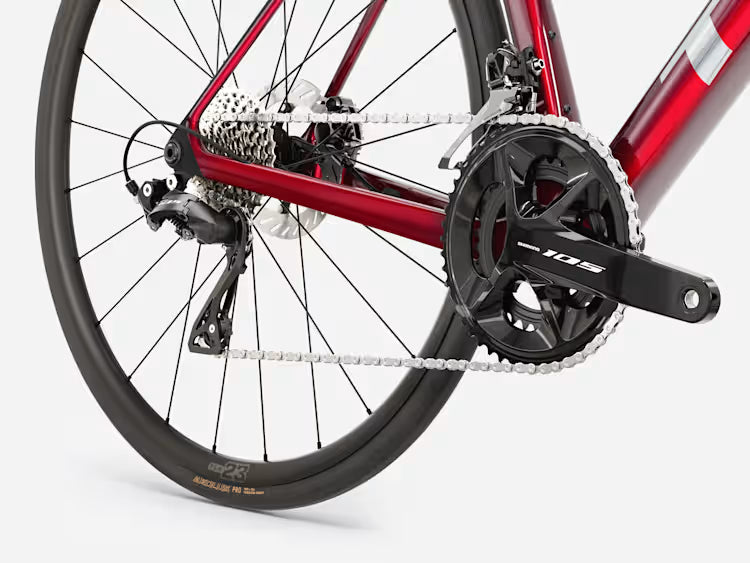

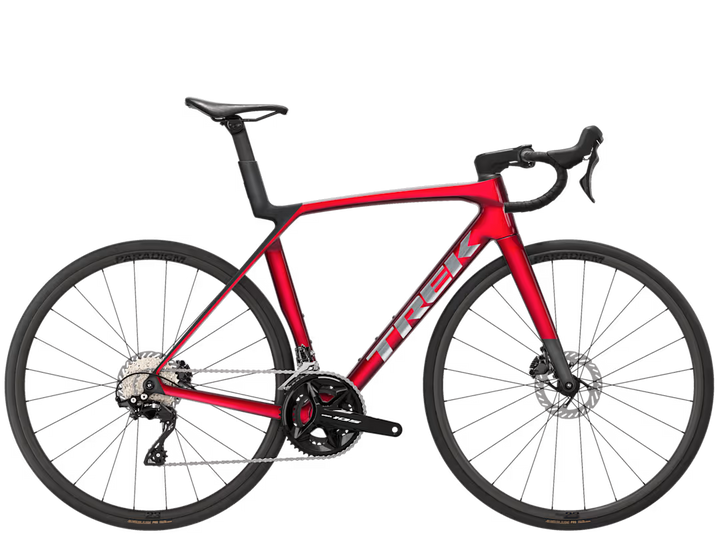

Trek Madone SL 5 Gen 8 (Gloss Fury Red/Matte Deep Smoke)
5337869
This product cannot be added to your cart online. Please contact our Product Specialists on WhatsApp at (+91) 80471 83232 and we'll be happy to assist you with availability, sizing, compatibility, and any questions you may have.
An aero carbon road bike for riders who want race-derived speed with Shimano 105 12-speed shifting and hydraulic disc brakes, in a frame designed to stay fast and composed over long distances.
Overview
The Madone SL 5 Gen 8 is built on a 500 Series OCLV Carbon frame with Full System Foil tube shaping, an IsoFlow seat tube and a full carbon fork with a tapered carbon steerer. Internal brake routing and the RCS Headset System keep the front end clean, and the frame supports electronic or mechanical routing.
The drivetrain is a 2x12 Shimano 105 setup with 50/34 chainrings and an 11-34 cassette, paired with Shimano 105 hydraulic disc brakes and 160 mm CL700 CentreLock rotors. Bontrager Paradigm 23 tubeless-ready wheels carry Aeolus Pro 700x28 mm tyres.
In Gloss Fury Red / Matte Deep Smoke it is aimed at riders who want an aero road bike for fast group rides, sportives and racing.
Why You'll Like It
Aero shaping
Full System Foil tube shaping and an IsoFlow seat tube are designed to cut through the air while keeping the frame comfortable.
Reliable Shimano 105 shifting
12-speed Shimano 105 shifters and derailleurs with an 11-34 cassette give you a wide, well-spaced gear range for climbs and fast flats.
Hydraulic disc brakes
Shimano 105 hydraulic discs with 160 mm CentreLock rotors give strong, controllable stopping in dry and wet conditions.
Tubeless-ready wheels and tyres
Paradigm 23 rims and Aeolus Pro 700x28 mm tyres are tubeless-ready, so you can run lower pressures for comfort and grip.
A clean, integrated front end
Internal brake routing, the RCS Headset System and a Trek RCS Pro stem give a tidy, aerodynamic cockpit.
Who Is It For?
Road riders who want a fast, aero bike for group rides, sportives and racing, and enthusiasts who value a carbon frame with modern disc brakes. Tubeless-ready tyres and hydraulic discs suit changing road conditions and wet monsoon-season rides.
It also suits riders stepping up from an aluminium road bike who want a proper race-inspired carbon frame and a full Shimano 105 groupset.
Good to Know
- Available in XS, S, M, M/L, L and XL. Crank length, handlebar width and stem length change with frame size, so check the size chart before ordering.
- The frame fits tyres up to 32 mm (as measured; see the manual for details).
- The wheels use Presta valves and Shimano 11-speed freehubs, and the rotors are removed with a standard CentreLock lockring tool.
- Regular chain cleaning and lubrication keeps the 12-speed drivetrain shifting smoothly.
Technical Specifications
- Intended Use: Aero Race
- Wheel Size: 700c
- Braking System: Hydraulic Disc
- Frame Material: Carbon
- Fork Material: Carbon
- Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle
- Shock: N/A - rigid frame and fork
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Chain: Shimano SLX M7100, 12-speed
- Crank: Size XS, S: Shimano 105 R7100, 50/34, 165 mm length. Size M, ML: Shimano 105 R7100, 50/34, 170 mm length. Size L, XL: Shimano 105 R7100, 50/34, 172.5 mm length
- Shift Levers: Shimano 105 R7120, 12-speed
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Front Derailleur: Shimano 105 R7100, braze-on, down swing
- Rear Derailleur: Shimano 105 R7100, 36T max cog
- Grip/Tape: Trek EcoTack
- Handlebar: Size XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width. Size S, M: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width. Size ML, L: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width. Size XL: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
- Stem: Trek RCS Pro, -7-degree. Size XS: 80 mm length. Size S, M: 90 mm length. Size ML, L: 100 mm length. Size XL: 110 mm length
- Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
- Seatpost: Madone aero carbon seat post, 0 mm offset, short length
- Front Brake: Shimano 105 hydraulic disc, flat mount; Brake rotor: Shimano CL700, CentreLock, 160 mm
- Rear Brake: Shimano 105 hydraulic disc, flat mount; Brake rotor: Shimano CL700, CentreLock, 160 mm
- Front Wheel: Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve; Hub front: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle; Skewer front: Bontrager Switch chamfered thru axle
- Rear Wheel: Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve; Hub rear: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle; Skewer rear: Bontrager Switch chamfered thru axle, removable lever
- Front Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Rear Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Weight: ML - 8.64 kg/19.05 lb (with tubes)
