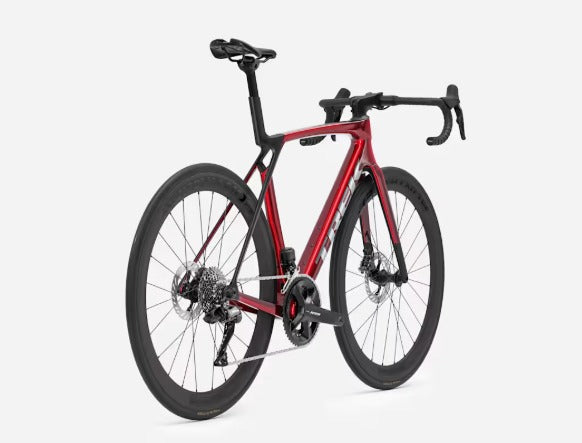

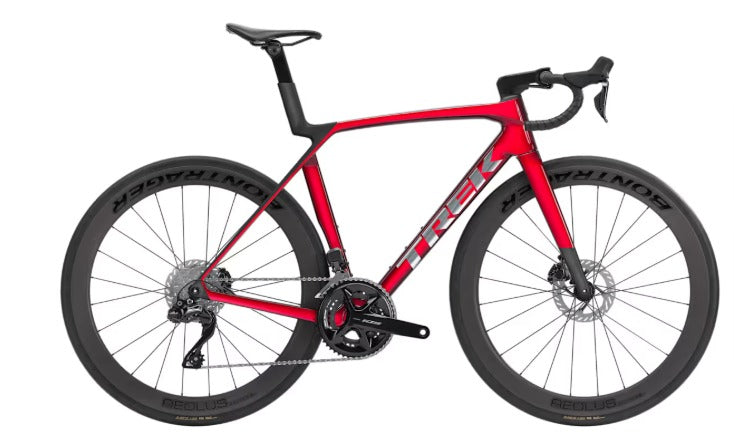

Trek Madone SL 6 Gen 8 (Gloss Fury Red/Matte Deep Smoke)
5337951
This product cannot be added to your cart online. Please contact our Product Specialists on WhatsApp at (+91) 80471 83232 and we'll be happy to assist you with availability, sizing, compatibility, and any questions you may have.
An aero carbon road bike for riders who want race-derived speed with Shimano 105 Di2 electronic shifting, carbon wheels and hydraulic disc brakes.
Overview
The Madone SL 6 Gen 8 is built on a 500 Series OCLV Carbon frame with Full System Foil tube shaping, an IsoFlow seat tube and a full carbon fork with a tapered carbon steerer. Internal brake routing and the RCS Headset System keep the front end clean, and the frame supports electronic or mechanical routing.
The drivetrain is a 2x12 Shimano 105 Di2 electronic setup with 50/34 chainrings and an 11-34 cassette, with hydraulic disc braking and 160 mm RT70 CentreLock rotors. Bontrager Aeolus Elite 35 OCLV Carbon wheels carry Bontrager R3 Hard-Case Lite tubeless-ready 700x28 mm tyres.
In Gloss Fury Red / Matte Deep Smoke it is aimed at riders who want a fast aero road bike for group rides, sportives and racing.
Why You'll Like It
Electronic shifting
Shimano 105 Di2 R7170 shifters and R7150 derailleurs give crisp 12-speed shifts with an 11-34 cassette.
Aero shaping
Full System Foil tube shaping and an IsoFlow seat tube are designed to cut through the air while keeping the frame comfortable.
Carbon wheels
Aeolus Elite 35 OCLV Carbon wheels with a 35 mm rim depth are tubeless-ready and built for fast rolling.
Disc brakes
Hydraulic disc braking with 160 mm CentreLock rotors gives strong, controllable stopping in dry and wet conditions.
A clean front end
Internal brake routing, the RCS Headset System and a Trek RCS Pro stem give a tidy, aerodynamic cockpit.
Who Is It For?
Road riders who want a fast, aero bike with electronic shifting for group rides, sportives and racing, and enthusiasts who value carbon wheels and modern disc brakes. Disc brakes and tubeless-ready tyres suit changing road conditions and wet monsoon-season rides.
It also suits riders stepping up from a mechanical road bike who want electronic shifting and a proper race-inspired carbon frame.
Good to Know
- Check the size chart before ordering. Crank length, handlebar width and stem length change with frame size.
- The Di2 system uses a Shimano BT-DN300 battery, and the frame fits tyres up to 32 mm (as measured; see the manual for details).
- The wheels use Shimano 11/12-speed freehubs, and the rotors are removed with a standard CentreLock lockring tool.
- Regular chain cleaning and lubrication keeps the 12-speed drivetrain shifting smoothly.
Technical Specifications
- Intended Use: Race
- Wheel Size: 700c
- Braking System: Hydraulic Disc
- Frame Material: Carbon
- Fork Material: Carbon
- Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle
- Shock: N/A - rigid frame and fork
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Chain: Shimano SLX M7100, 12-speed
- Crank: Size XS, S: Shimano 105 R7100, 50/34, 165 mm length. Size M: Shimano 105 R7100, 50/34, 170 mm length. Size ML, L: Shimano 105 R7100, 50/34, 172.5 mm length
- Shift Levers: Shimano 105 R7170 Di2, 12-speed
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Front Derailleur: Shimano 105 R7150 Di2, braze-on, down swing
- Rear Derailleur: Shimano 105 R7150 Di2, 36T max cog
- Grip/Tape: Trek EcoTack, black
-
Handlebar: Size: S
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm width
Size: M, ML, L
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm width - Stem: Trek RCS Pro, -7-degree. Size XS: 80 mm length. Size S, M: 90 mm length. Size ML, L: 100 mm length
- Saddle: Size XS, S: Bontrager Aeolus Comp, steel rails, 155 mm width. Size XS, S, M, ML, L: Verse Short, steel rails, 145 mm width. Size M, ML, L: Bontrager Aeolus Comp, steel rails, 145 mm width
- Seatpost: Madone aero carbon seat post, 0 mm offset. Size XS, S, M: short length. Size ML, L: long length
- Front Brake: Brake rotor: Shimano RT70, CentreLock, 160 mm
- Rear Brake: Brake rotor: Shimano RT70, CentreLock, 160 mm
- Front Wheel: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
- Rear Wheel: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
- Front Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Rear Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Weight: ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
Additional Information
- Country of Origin: Taiwan
- Imported By: Trek Bicycle India Pvt Ltd, Ground Floor, Unit 17 & 18, Bestech Business Center, Badshahpur Sohna Rd Hwy, Sector 48c, Gurugram, Haryana - 122001, India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Bicycles
