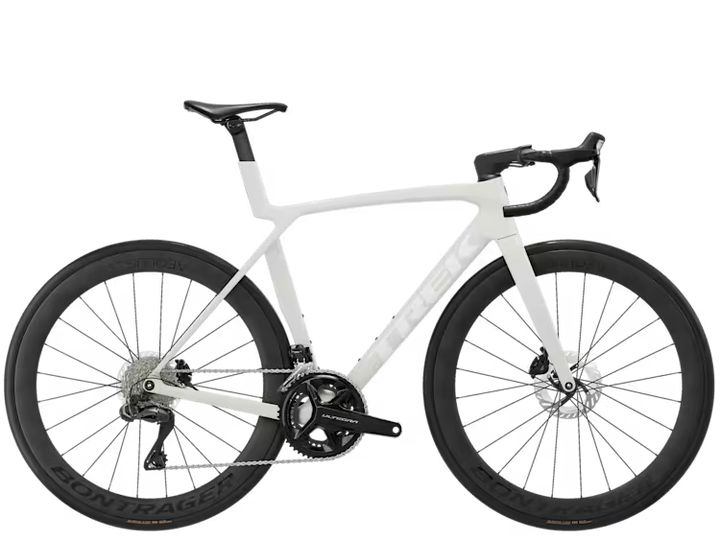

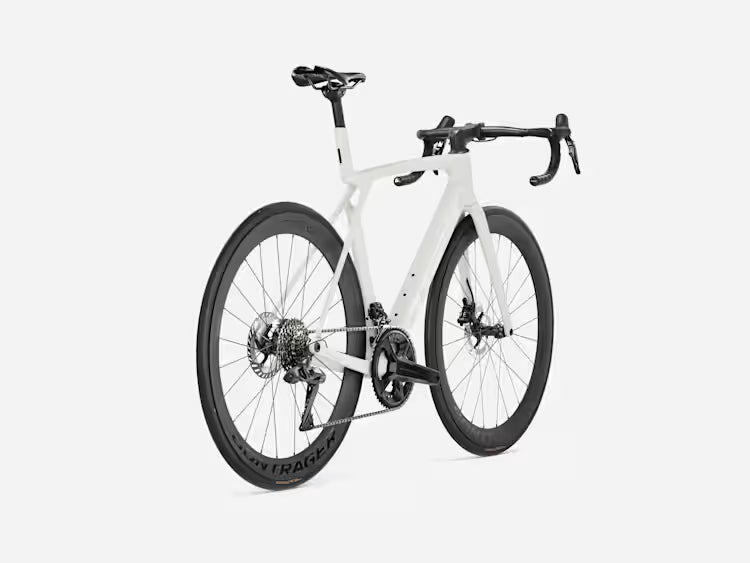

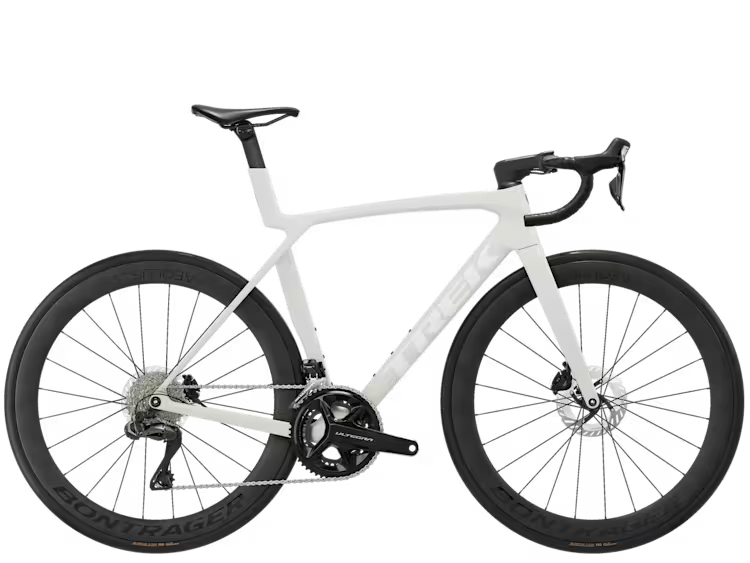

Trek Madone SL 7 Gen 8 (Era White)
5346722
This product cannot be added to your cart online. Please contact our Product Specialists on WhatsApp at (+91) 80471 83232 and we'll be happy to assist you with availability, sizing, compatibility, and any questions you may have.
A race-ready aero carbon road bike for riders who want Shimano Ultegra Di2 electronic shifting, deep carbon wheels and an integrated Aero Pro cockpit for maximum speed.
Overview
The Madone SL 7 Gen 8 is built on a 500 Series OCLV Carbon frame with Full System Foil tube shaping, an IsoFlow seat tube and a full carbon fork with a tapered carbon steerer. Internal brake routing and the RCS Headset System keep the front end clean, and the frame supports electronic or mechanical routing.
The drivetrain is a 2x12 Shimano Ultegra R8100 Di2 electronic setup with 50/34 chainrings and an 11-34 cassette. Bontrager Aeolus Pro 51 OCLV Carbon wheels carry Aeolus Pro 700x28 mm tubeless-ready tyres, and the Bontrager Aero Pro carbon handlebar has Di2 routing.
In Era White it is aimed at riders who want a race-focused aero road bike for fast group rides, sportives and competition.
Why You'll Like It
Ultegra Di2 electronic shifting
Shimano Ultegra R8170 Di2 shifters and R8150 Di2 derailleurs give crisp, precise 12-speed shifts with an 11-34 cassette.

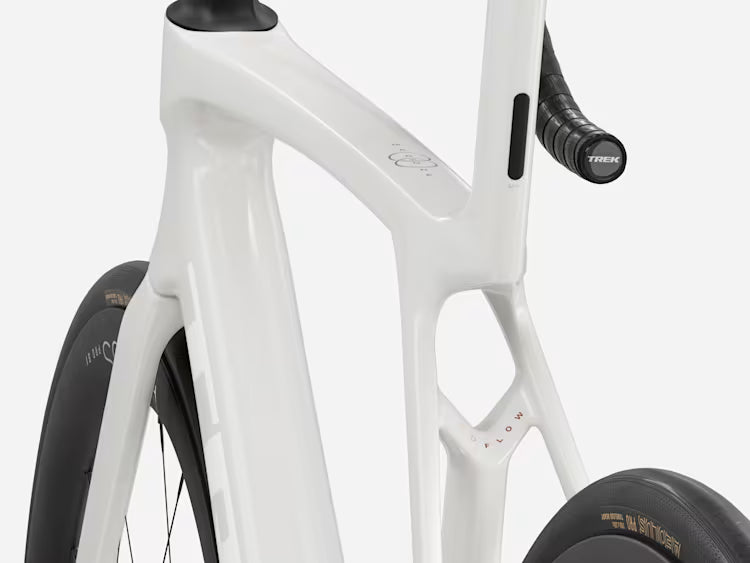

Aero shaping
Full System Foil tube shaping and an IsoFlow seat tube are designed to cut through the air while keeping the frame comfortable.
Deep carbon wheels
Aeolus Pro 51 OCLV Carbon wheels are tubeless-ready and built for fast rolling at speed.
Disc braking
Shimano CL800 CentreLock 160 mm rotors give strong, controllable stopping in dry and wet conditions.

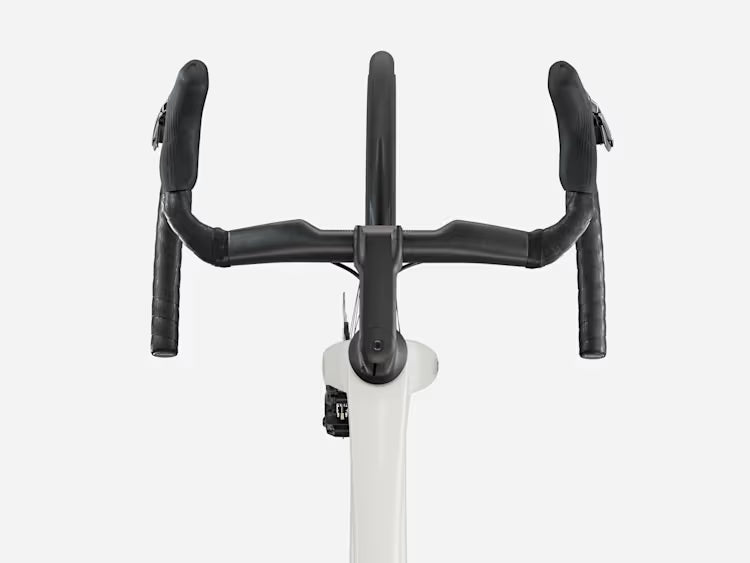

An integrated cockpit
The Aero Pro carbon handlebar with Di2 routing and a Trek RCS Pro stem give a tidy, aerodynamic front end.
Who Is It For?
Road riders and racers who want a top-tier aero bike with electronic shifting for fast group rides, sportives and events, and enthusiasts who value carbon wheels and modern disc brakes. Tubeless-ready tyres and disc brakes suit changing road conditions and wet monsoon-season rides.
It also suits experienced riders stepping up from a mechanical road bike who want Ultegra Di2 and a race-inspired carbon frame.
Good to Know
- Available in S, M, M/L and L. Crank length, handlebar width and stem length change with frame size, so check the size chart before ordering.
- The Di2 system uses a Shimano BT-DN300 battery, and the frame fits tyres up to 32 mm (as measured; see the manual for details).
- The wheels use Shimano 11/12-speed freehubs, and the rotors are removed with a standard CentreLock lockring tool.
- Regular chain cleaning and lubrication keeps the 12-speed drivetrain shifting smoothly.
Technical Specifications
- Intended Use: Aero Race
- Wheel Size: 700c
- Braking System: Hydraulic Disc
- Frame Material: Carbon
- Fork Material: Carbon
- Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle
- Shock: N/A - rigid frame and fork
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Chain: Shimano Ultegra/XT M8100
- Crank: Size XS, S, M, ML: Shimano Ultegra R8100, 50/34, 165 mm length. Size S: Shimano Ultegra R8100, 50/34, 160 mm length. Size M, ML, L: Shimano Ultegra R8100, 50/34, 170 mm length. Size L, XL: Shimano Ultegra R8100, 50/34, 172.5 mm length
- Shift Levers: Size XS, S, M, ML, L, XL: Shimano Ultegra R8170 Di2, 12-speed. Size S, M, ML, L: Shimano Ultegra R8171 Di2, 12-speed
- Cassette: Shimano Ultegra R8101, 11-34, 12-speed
- Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
- Rear Derailleur: Shimano Ultegra R8150 Di2, 34T max cog
- Grip/Tape: Size XS, S, M, ML, L, XL: Trek EcoTack. Size S, M, ML, L: Trek gel cork
- Handlebar: Size XS: Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm width. Size S: same, 37 cm control width, 40 cm width. Size M, ML, L: same, 39 cm control width, 42 cm width. Size XL: same, 41 cm control width, 44 cm width
- Stem: Trek RCS Pro, -7-degree. Size XS: 80 mm length. Size S, M: 90 mm length. Size ML, L: 100 mm length. Size XL: 110 mm length
- Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
- Seatpost: Madone aero carbon seat post, 0 mm offset, short length
- Front Brake: Brake rotor: Shimano CL800, CentreLock, 160 mm
- Rear Brake: Brake rotor: Shimano CL800, CentreLock, 160 mm
- Front Wheel: Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle; Skewer front: Bontrager Switch chamfered thru axle
- Rear Wheel: Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle; Skewer rear: Bontrager Switch chamfered thru axle, removable lever
- Front Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Rear Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
- Weight: ML - 7.87 kg/17.36 lb (with TLR sealant, no tubes)
Additional Information
- Country of Origin: Taiwan
- Imported By: Trek Bicycle India Pvt Ltd, Ground Floor, Unit 17 & 18, Bestech Business Center, Badshahpur Sohna Rd Hwy, Sector 48c, Gurugram, Haryana - 122001, India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Bicycles
