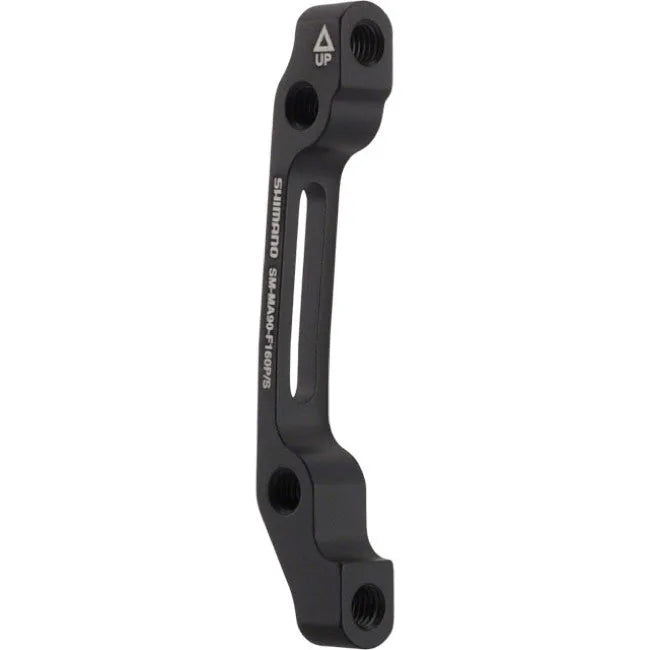

Shimano XTR MA90 Disc Brake Adapters
ISMMA90F160PS
Estimated Shipping Widget will be displayed here!
Adaptor to use a a Postmount brake in combination with a IS2000 Mount. The included wire is used to fix the screw. The adapter can be used as follows:
fork with 160 mm mount:
SM-MA-F160P/S2 for the use of a 160 mm brake disc
frame with 140 mm mount:
SM-MA90-R160P/S for the use of a 160 mm brake disc
SM-MA90-R180P/S for the use of a 180 mm brake disc
SM-MA90-R203P/S for the use of a 203 mm brake disc
Designed for BR-M985 and BR-M988, but can be used on all Shimano 74mm-caliper brakes.
Features
- SM-MA90 series brackets are specifically designed for the new generation XTR-M985/988 disc brakes but can be used on all Shimano 74mm-caliper brakes
- These new adaptors are lighter, optimally machined, and even have areas drilled out to save weight
- Shimano Adapters are listed by: Rotor Size / Caliper Mount / Front or Rear / Bike Mount Tab / Mfg Part Number
Specifications
- For instance a 160mm / 74mm / Front / 51mm IS / SM-MA-F160P/S
- Rotor Size = 160mm
- Caliper mount drill = 74mm
- Bike location = Front
- Mount on bike or fork = 51mm IS
- Shimano's part number = SM-MA-F160P/S
Additional Info
- Country of Origin: Malaysia/Japan
- Imported By: Shimano South Asia Pvt Ltd. , 19 , (Ground Floor) Kumara Krupa Road , Bangalore – 560 001 , Karnataka , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Brake Small Parts
