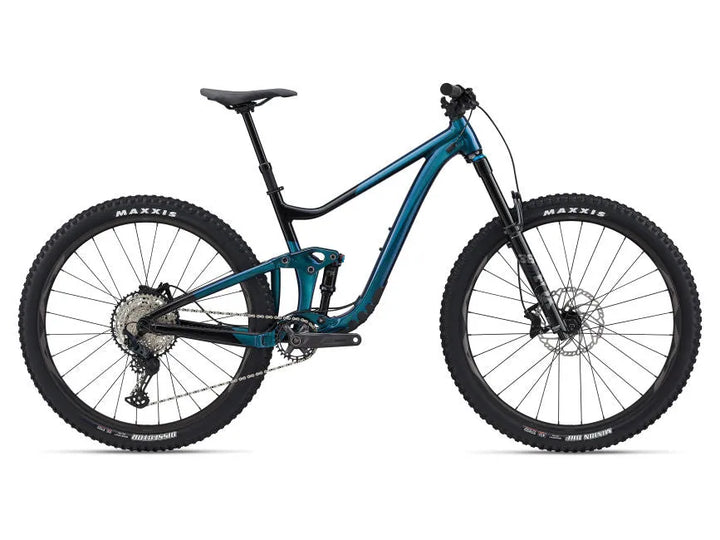

Giant Trance X 29 1 (Chameleon Blue)
2201049204
Estimated Shipping Widget will be displayed here!
CHUNKY ROCK GARDENS, ROOTS AND TECHNICAL CLIMBS. THIS HARD-CHARGING TRAIL BIKE ADAPTS TO THE TERRAIN, GIVING YOU CONFIDENCE AND CONTROL ON ALL TYPES OF SINGLETRACK.
Features
- 29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tires.
- Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
- A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
Specifications
- Intended Use- Trail
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
Components
- Frame- Aluxx SL-Grade Aluminum front and rear triangles Maestro Suspension with flip chip 135mm travel 12x148mm thru-axle
- Fork- Fox 36 Float Performance 150mm Travel Grip Damper Boost 15x110 Kabolt X Tapered
- Bottom Bracket- Shimano PressFit
- Chain- KMC X-12
- Crank- Shimano M511 boost 30T 52mm chainline
- Shift Levers- Shimano SLX M7100 1x12
- Cassette- Shimano SLX M7100 10x51
- Rear Derailleur- Shimano SLX M7100 Shadow +
- Grips/Bartape- 120mm S/M, 130mm L/XL, NEW Trail Grip, size L/XL 130mm Giant Tactal Pro Single Lock-On Grips, size S/M 120mm, VLG 2000
- Handlebar- Giant Contact TR35 780x35mm 20mm rise AL6061
- Stem- Giant Contact SL 35 Diameter 35mm
- Saddle- Giant Romero
- Seatpost- GIANT Contact Switch dropper post with remote lever 30.9mm
- Front Brake- Shimano BR-MT520 4 piston Hydraulic Disc [F] 203mm
- Rear Brake- Shimano BR-MT520 4 piston Hydraulic Disc [R] 180mm
- Front Wheel- GIANT AM 29 tubeless ready sleeve-joint rim 30mm inner width
- Rear Wheel- GIANT AM 29 tubeless ready sleeve-joint rim 30mm inner width
- Tire- [F] Maxxis Minion DHF 29x2.5WT, 60 TPI, EXO, TR, TR [R] Maxxis Dissector 29x2.4WT, Tubeless tires
- Pedal- AL Body/AL Cage Platfrom(GC GT)
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 16.9 | 16.9 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° |
| C | TOP TUBE LENGTH (inch) | 22.3 | 22.2 | 23.5 | 23.4 | 24.8 | 24.7 | 25.8 | 25.7 |
| D | HEAD TUBE LENGTH (inch) | 3.7 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 |
| H | WHEELBASE (inch) | 46.2 | 47.4 | 48.8 | 49.9 |
| I | CHAIN STAY LENGTH (inch) | 17.2 | 17.2 | 17.2 | 17.2 |
| J | BOTTOM BRACKET DROP (inch) | 1.6 | 1.6 | 1.6 | 1.6 |
| K | STACK (inch) | 24.3 | 24.4 | 24.8 | 25.2 |
| L | REACH (inch) | 16.8 | 18 | 19.1 | 20.1 |
| M | STAND OVER HEIGHT (inch) | 28.9 | 28.7 | 29.7 | 30.6 |
| N | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
