Ceramicspeed BB90 TREK Shimano Bottom Bracket (Coated) - BUMSONTHESADDLE

Ceramicspeed BB90 TREK Shimano Bottom Bracket (Coated)

101374

Regular priceRs. 36,100.00
/
incl., of all taxes. Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

BB90 is the Trek oversized bottom bracket standard and is only found on Trek road bikes. The shell is 90.5mm wide and is designed to work with 24mm spindles and road cranks and has bearings inside the shell. The CeramicSpeed Bearings come as two bearings, which are then pressed into the frame.

Those two bearings consist of either CeramicSpeed Standard or Coated Bearings. Both feature super smooth, super round CeramicSpeed Balls contained in hardened-steel races. The Coated version has a metallic coating laid onto the races, making it even smoother and harder, resulting in lower drag and longer life.

Features

Technical Data

BB90 is simple and light. The standard is designed to work with 24mm thru-axle spindles. The bearings work with Shimano and other 24mm thru-axle cranks, like FSA.

The CeramicSpeed Standard Bearings last at least 3 times longer than other bearings. That’s thanks to hardened-steel races and CeramicSpeed Balls that are 100% smoother & 15% harder than the ceramic competition. These bearings have a frictional drag of 0.3-0.4 watts per set, which represents an average 75% drag reduction compared to stock bbs.

The CeramicSpeed Coated Bearings reduce drag by 50% compared to Standard Bearings and an improvement in bearing life of 60%.

To better adjust the performance to your needs, consider the grease you’re using. All Round Grease comes installed but can be changed for lower drag Race Day Grease, or higher durability Long Life Grease, which adds a bit of drag but stays in when riding through messy conditions.

Coated

Our coated products are covered by a lifetime warranty. The unique coating formula is a metallic layer that covers the bearing races and makes them 75% harder than steel. Thanks to this, they are highly resistant to corrosion and the coating provides even lower friction than our standard bearings. Even if the bearing is contaminated with degreaser, water or mud, the risk of bearing failure due to corrosion is negligible if you choose the coated version.

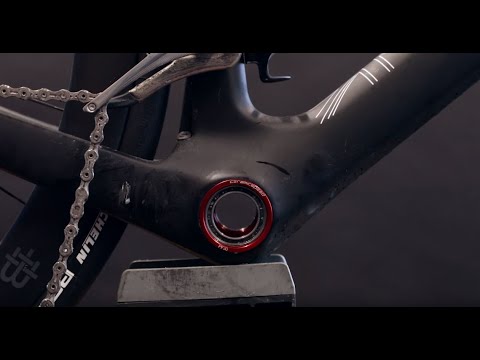

Installation of BB90 Bottom Bracket for Trek Shimano

If you don't have any experience installing bottom brackets and bearings, we recommend that you have your local bike shop fit your new bearings. Find your nearest retailer.

Maintenance of CeramicSpeed BB90 Bottom Bracket for Trek Shimano

We recommend that you follow our instructions on how to maintain your CeramicSpeed Bottom Brackets to achieve the lowest friction and the best longevity.

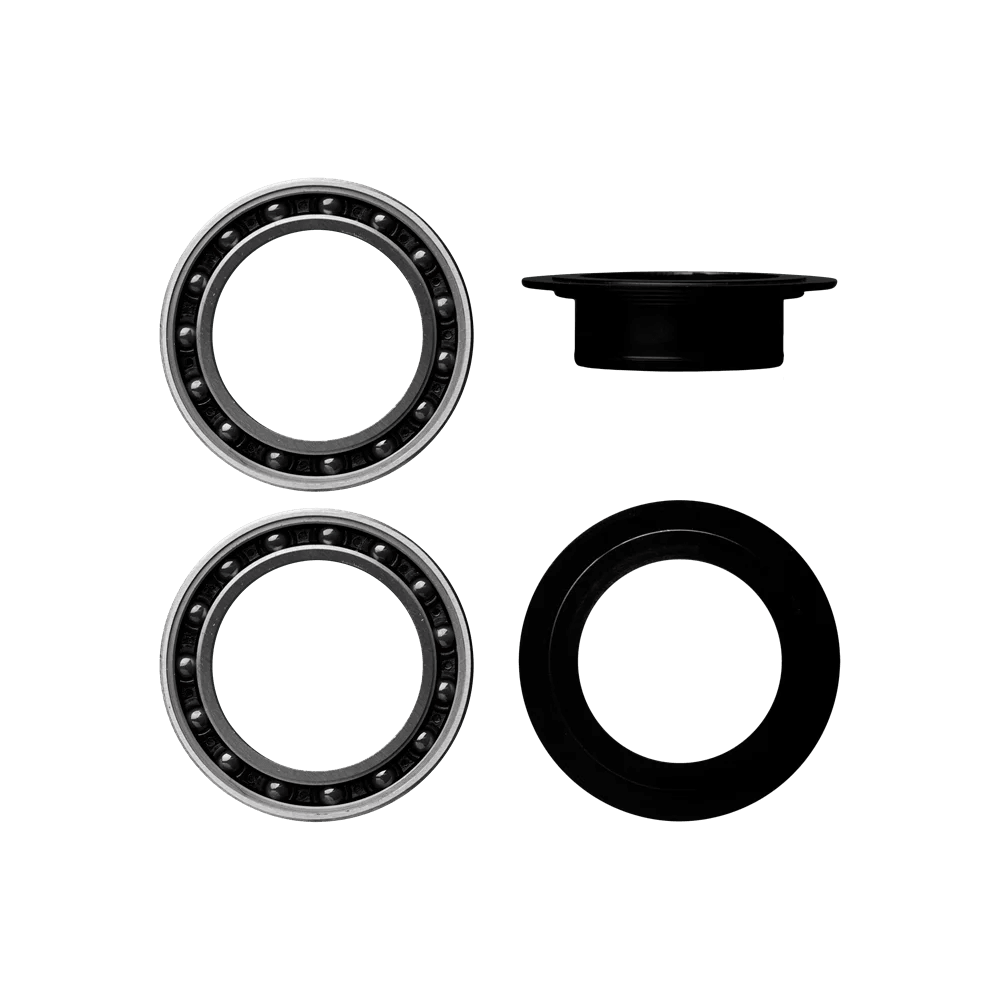

In The Box
  • 2 BB90 bearings.
  • 2 seals.
  • 2 dust covers with integrated spacers.
  • All Round Grease.
  • Sticker Sheet.
Specification
Type PressFit
Bearing Type Ceramic
Length
Shell Width 90.5 mm
Thread type
Spindle Diameter 24 mm
Additional Info
  • Country of Origin: Taiwan
  • Imported By: Ensign Sports , 502 , Hill Glade , Opp. HDFC Bank Pali Road , Bandra , Mumbai - 400050 , Maharashtra , India. (MH-27)
  • Net Quantity: 1N
  • Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
  • Commodity: Bottom Brackets
