NEW

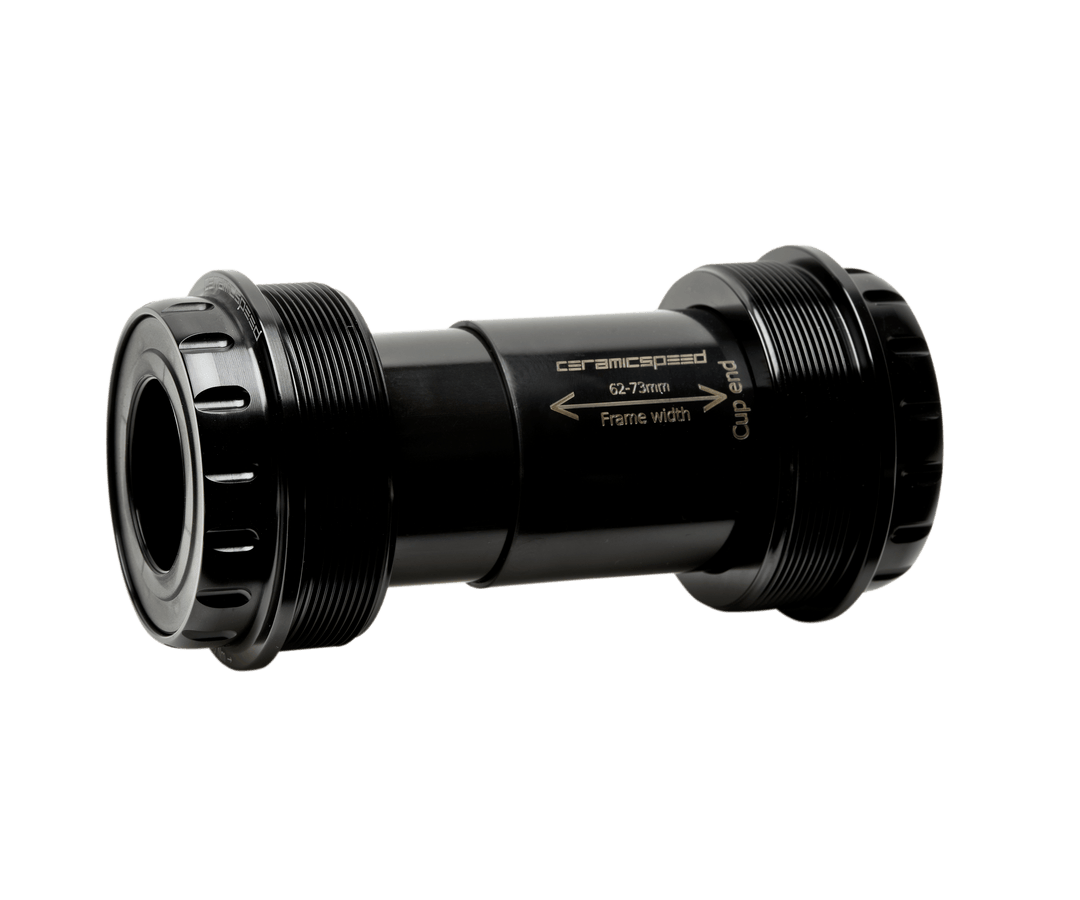

CeramicSpeed T47/68 Outboard Bottom Bracket for Shimano, black

CeramicSpeed T47/68 Outboard Shimano Bottom Bracket (Black)

107832

Rs. 39,000.00
/
incl., of all taxes. Shipping calculated at checkout.

A threaded T47 bottom bracket that pairs oversized-interface stiffness with genuine ceramic bearings — built for Shimano 24mm spindle cranks on road and tri builds.

Overview

T47 was originally developed by custom frame builders looking for a way to combine the stiffness of oversized bottom bracket interfaces like PF30 and EVO386 with the long-term reliability of a threaded design. This CeramicSpeed version takes that T47/68 standard — a 47mm threaded inner diameter across a 68mm-wide shell — and fits it with genuine CeramicSpeed ball bearings for exceptionally low friction.

Because the cups thread directly into the frame rather than pressing into the shell, installation and future removal follow a conventional, creak-resistant threaded approach rather than the press-fit method that's given some oversized standards a reputation for creaking over time. It's built specifically for Shimano's 24mm spindle road cranks and 68mm-wide T47 outboard frames.

Why You'll Like It

Genuine CeramicSpeed bearings
Precision ball bearings and hardened-steel races deliver meaningfully lower friction than a stock bottom bracket.

Threaded, creak-free reliability
A threaded T47 interface avoids the creaking issues some press-fit oversized standards develop over time.

Oversized stiffness, threaded convenience
Combines the structural benefits of PF30/EVO386-style oversized interfaces with a genuinely serviceable threaded design.

Complete installation kit
Comes with everything needed to fit: both threaded cups, dust covers, spacer tube, grease, and decal.

Who Is It For?

This suits road and triathlon riders with a 68mm-wide T47 outboard frame and a Shimano 24mm spindle crank who want a genuine efficiency upgrade over a stock bottom bracket, or who are rebuilding a frame around this specific standard.

It's intended specifically for frames built to the matching T47 outboard standard — have your BOTS mechanic confirm your frame's bottom bracket shell before ordering, since this isn't a universal conversion solution.

Good to Know

Installation requires a BBT-69 bottom bracket tool. Have your BOTS mechanic confirm your frame's exact shell width and your crank's spindle diameter (24mm) before fitting.

Technical Specifications
  • Bottom Bracket Type: T47/68 Outboard, threaded
  • Bearing Type: CeramicSpeed Standard (ceramic balls, hardened-steel races)
  • Shell Width: 68mm
  • Thread Inner Diameter: 47mm
  • Spindle Diameter: 24mm (Shimano Hollowtech II)
  • Net Weight: 118g
  • In The Box: 2 threaded cups with bearings installed, 2 dust covers, spacer tube, grease, decal
Additional Information
  • Country of Origin: China
  • Imported By: Ensign Sports IGL
  • Net Quantity: 1N
  • Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
  • Commodity: Bottom Bracket
Warranty

This is a genuine product and is covered by a 1-month warranty from the date of original purchase against manufacturing defects in materials and workmanship.


Exclusions
  • Misuse or Negligence: The warranty does not cover damages resulting from misuse, abuse, or negligent handling of the products, including but not limited to improper installation, disassembly, or modification.
  • Unauthorized Repairs or Alterations: Any attempt to repair or alterations by individuals or service providers not authorized by the manufacturer will void the warranty.
  • Natural Wear and Tear: Normal wear and tear, including cosmetic deterioration, scratches, dents and fading over time, are excluded from the warranty coverage.
  • Accidents or External Forces: Damages caused by accidents, improper packing, collisions, unauthorized tampering or exposure to extreme external forces (e.g., impacts, falls, or severe weather conditions) are not covered under this warranty.
  • Incompatible Use: The warranty does not extend to damages resulting from using the products in ways inconsistent with their intended purpose or specifications.
  • Failure to Follow Instructions: Damages arising from a failure to follow the product's operating instructions, guidelines, or recommended practices as outlined in the user manual are not covered.
  • Battery Exclusions: For products with rechargeable Lithium-ion batteries, the warranty may exclude battery degradation over time or failures caused by non-compliance with proper charging procedures.
  • Third-Party Accessories: Damages caused by the use of third-party accessories, components, or modifications not explicitly approved by the manufacturer are not covered.
  • Failure to Provide Proof of Purchase: Warranty claims may require proof of purchase, and failure to provide such documentation may result in the exclusion of the product from warranty coverage.
  • Exclusion for Water Damage: Any damage relating to damage caused by water because some products are water repellant but not Water Proof
  • Non-specified conditions: Not includes damaged caused to products by improper accessories or improper fittings or for use in non specified conditions
Terms & Conditions
  • The warranty is available only to the Original purchaser/buyer of products
  • Service must be performed by Brand or an authorized reseller.
  • Insurance, handling and transportation charges to Brand Distributor shall be borne by Customer.
  • For some products registration is required to extend the warranty. Failure to register voids extended warranty
  • The decision to replace or repair a product is influenced by the brand and various factors
