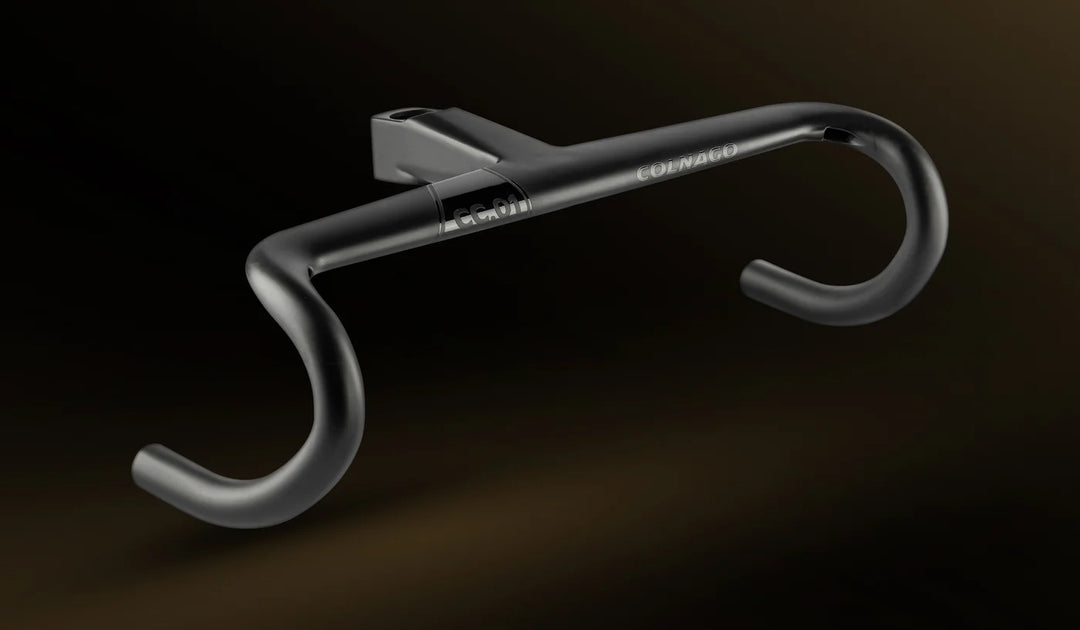

Colnago Y1RS Integrated Cockpit (Black)
1CCBK.CPT.Y1RS.000.095
A one-piece carbon aero cockpit for riders who want the clean, cable-hidden look and stiffness of an integrated bar-stem on their Colnago Y1RS.
Overview
The Y1RS Integrated Cockpit combines the handlebar and stem into a single carbon fibre unit, designed specifically for the Y1RS's aero frame and internal cable routing. A one-piece design removes the bar-to-stem interface entirely, giving a stiffer, more aerodynamic front end than a separate bar-and-stem setup.
It's built in carbon fibre throughout, matching the material and construction quality of the Y1RS frame itself, with fully internal, electronic-groupset-compatible cable routing. It bolts directly to the Y1RS's dedicated fork and steerer rather than clamping a standard round steerer tube like a conventional stem, so it's sized to this specific SKU's stem length and bar width combination only.
This is the cockpit for a Y1RS owner replacing a damaged original, or building up a frameset with the correct factory-matched aero cockpit.
Why You'll Like It
A genuine one-piece aero design
Combining bar and stem into a single carbon unit removes a joint entirely, for a stiffer and more aerodynamic front end than a two-piece setup.
Carbon fibre construction
Matches the build quality and material of the Y1RS frame itself, rather than mixing in an aftermarket aluminium component.
Fully internal cable routing
Brake and shift lines run completely hidden through the cockpit, compatible with electronic groupsets, for the cleanest possible front-end look.
A factory-correct fit
Sized specifically for the Y1RS, so it bolts straight on without compatibility guesswork.
Who Is It For?
This cockpit suits a Colnago Y1RS owner who needs to replace a damaged original cockpit, or someone building up a Y1RS frameset who wants the correct factory-matched component rather than an aftermarket substitute. It's a straightforward fit for riders maintaining a race-ready setup for club and competitive road riding.
Good to Know
An integrated cockpit should be fitted by someone familiar with internal cable routing, since cable and hose paths run through the unit itself rather than along the outside of a conventional bar and stem.
This cockpit bolts directly to the Y1RS's own dedicated fork and spacers rather than clamping a separate round steerer tube, so it's only compatible with the Y1RS frameset it's sized for — check your stem length and bar width match this listing before ordering.
Technical Specifications
- Material: Carbon Fibre (monocoque, UD finish)
- Stem Length: 9.5cm (95mm)
- Bar Width: 37cm (377mm, centre-to-centre at the hoods)
- Reach: 79mm
- Drop: 130mm
- Width at Drops: approx. 400mm (flared out from the 377mm hood width)
- Cable Routing: Fully internal, electronic groupset compatible
- Stem Clamp Diameter: N/A — proprietary direct-mount system, bolts to the Y1RS's dedicated fork/steerer rather than clamping a standard round steerer tube
Additional Information
- Country of Origin: China
- Imported By: We Snap India, M. No. 5/0626 Pune Nagar Road, Wagholi, Pune - 412207
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Drop Handlebars
