Giant Trance 29 2 (Slate Gray)
2201043204




No reviews
Estimated Shipping Widget will be displayed here!
TURN UP THE HEAT ON TECHNICAL TRAILS, AND DO IT WITH MORE CONFIDENCE AND CONTROL. FEATURING UPDATED SUSPENSION AND ADJUSTABLE GEOMETRY, THIS FEISTY 29ER ADAPTS TO THE TERRAIN.
Features
- New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
- Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

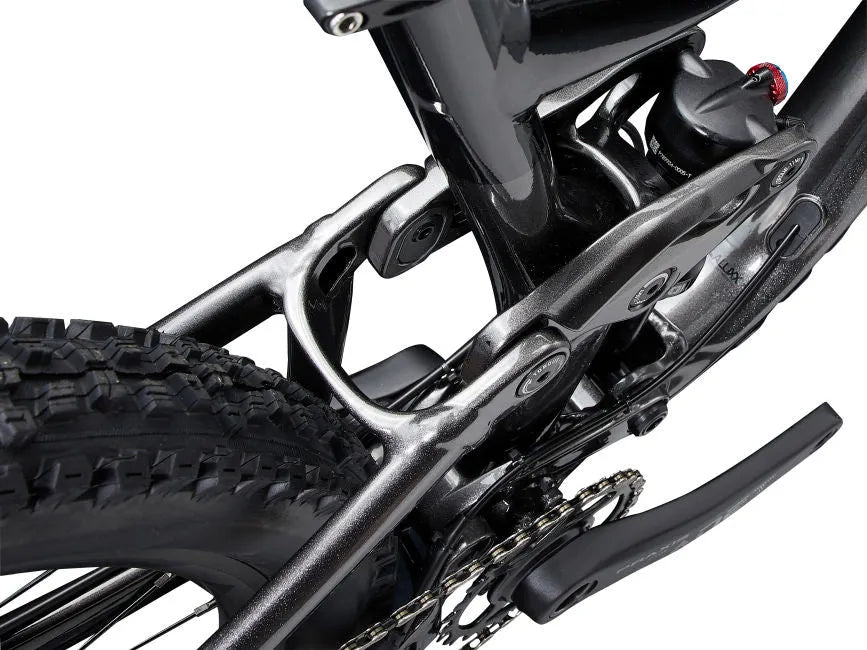

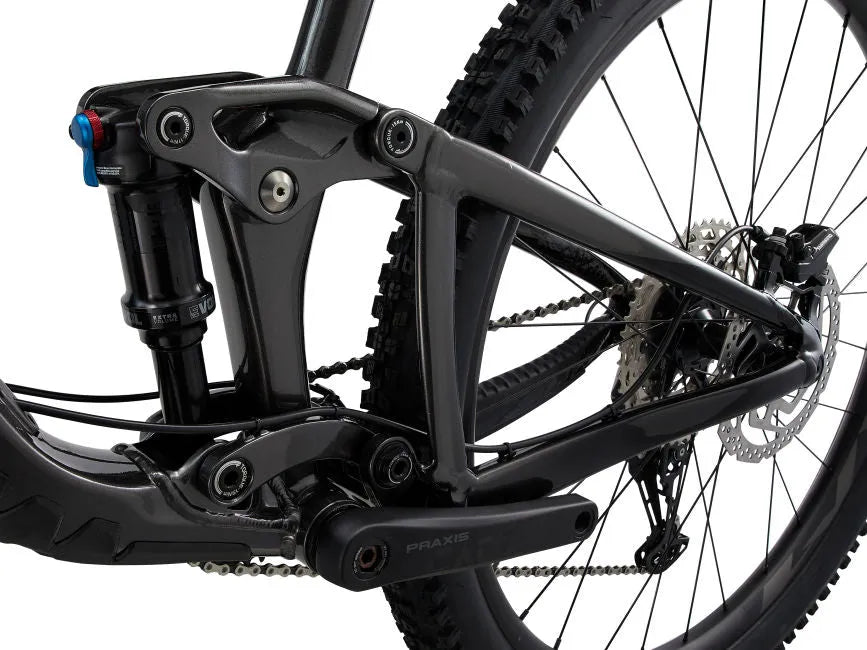

- Lightweight ALUXX SL aluminum frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.
Specifications
- Intended Use- Trail
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
Components
- Frame- Aluxx SL-Grade Aluminum front and rear triangles, Maestro Suspension with flip chip, 120mm travel, 12x148mm thru-axle
- Fork- Marzocchi Z2, 130mm, 44mm offset, GRIP damper, Boost 15x110 Kabolt TA,tapered
- Bottom Bracket- Praxis PressFit
- Chain- KMC X-12
- Crank- Praxis Cadet M24 Boost, 30T,55mm chainline, steel chainring
-
Cassette- Shimano Deore M6100, 10-51
-
Rear Derailleur- Shimano Deore, Shadow +
- Grips/Bartape- 120mm S/M, 130mm L/XL, NEW Trail Grip, size L/XL 130mm Giant Tactal Pro Single Lock-On Grips, size S/M 120mm, VLG 2000
- Handlebar- Giant Contact TR35, 780x35mm, 20mm rise, AL6061
- Stem- Giant Contact SL 35, Diameter 35mm
- Saddle- Giant Romero
- Seatpost- GIANT Contact Switch dropper post with remote lever 30.9mm
- Front Brake- Shimano BR-MT420, 4 piston, Hydraulic Disc [F] 180mm
- Rear Brake- Shimano BR-MT420, 4 piston, Hydraulic Disc [R] 180mm
- Front Wheel- GIANT AM 29 tubeless ready sleeve-joint rim, 30mm inner width.
- Rear Wheel- GIANT AM 29 tubeless ready sleeve-joint rim, 30mm inner width.
- Tire- [F] Maxxis Minion DHF 29x2.5 WT, 60 TPI, 3CMaxTerra, EXO, TR, [R] Maxxis Aggressor 29x2.5WT, 60 TPI, Dual, EXO, TR, Tubeless tires
- Pedal- AL Body/AL Cage Platfrom(GC GT)
Geometry
S | M | L | XL | ||
---|---|---|---|---|---|
A | Seat Tube Length (mm) | 420 | 430 | 465 | 496 |
B | Seat Tube Angle | 77.2° | 76.3° | 76.3° | 76.3° |
C | Top Tube Length (mm) | 561 | 559 | 599 | 597 | 626 | 624 | 663 | 661 |
D | Head Tube Length (mm) | 100 | 110 | 120 | 130 |
E | Head Tube Angle | 65.4° | 65.5° | 65.5° | 65.5° |
F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
G | Trail (mm) | 126 | 120 | 126 | 120 | 126 | 120 | 126 | 120 |
H | Wheelbase (mm) | 1166 | 1165 | 1195 | 1194 | 1224 | 1223 | 1263 | 1262 |
I | Chain Stay Length (mm) | 439 | 437 | 439 | 437 | 439 | 437 | 439 | 437 |
J | Bottom Bracket Drop (mm) | 45 | 35 | 45 | 35 | 45 | 35 | 45 | 35 |
K | Stack (mm) | 610 | 604 | 619 | 613 | 628 | 622 | 637 | 631 |
L | Reach (mm) | 422 | 431 | 447 | 456 | 472 | 480 | 507 | 515 |
M | Stand Over Height (mm) | 730 | 738 | 725 | 734 | 749 | 759 | 771 | 780 |
N | Handlebar Width (mm) | 780 | 780 | 780 | 780 |
O | Stem Length (mm) | 40 | 40 | 50 | 50 |
P | Crank Length (mm) | 165 | 170 | 170 | 170 |
Q | Wheel Size | 29 | 29 | 29 | 29 |
