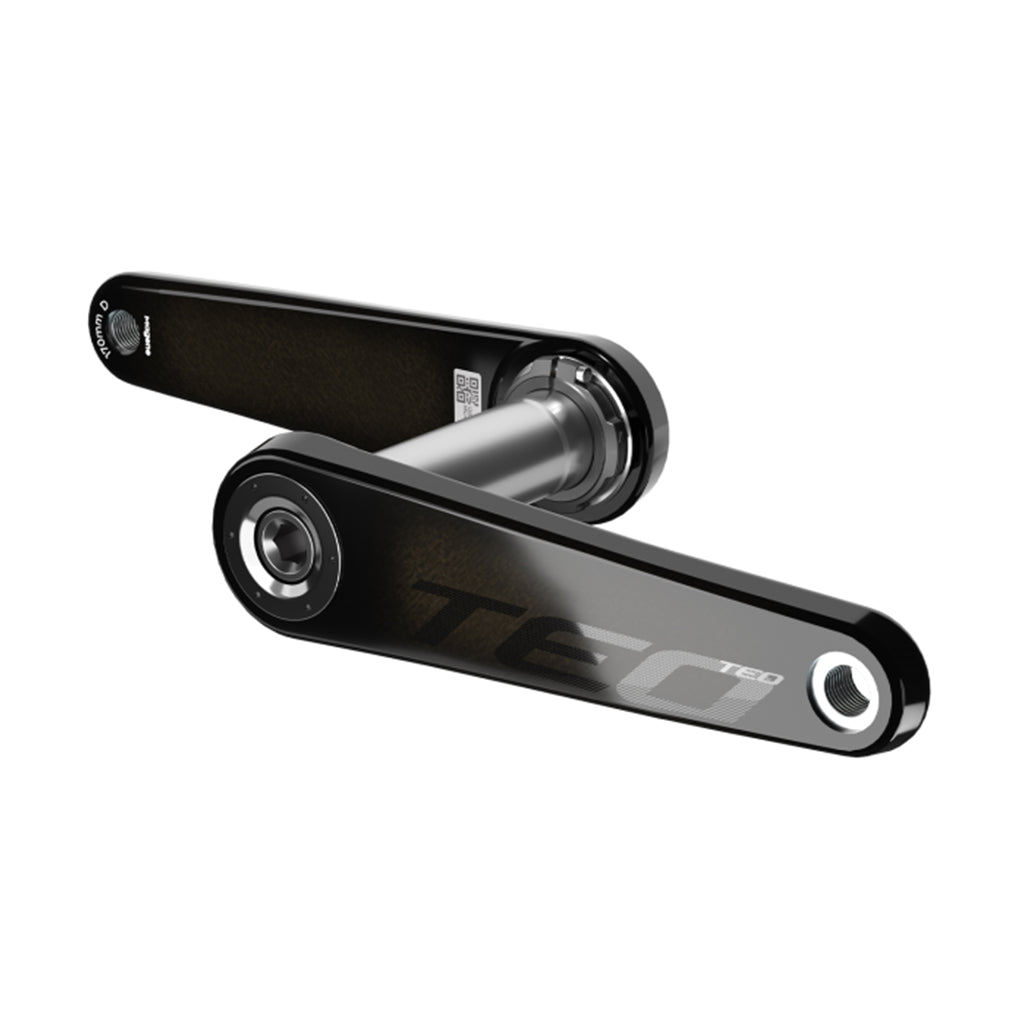

Magene TEO Carbon Crank (Black)
TEO-CRANK_CL-165mm
A carbon crank upgrade for riders building out Magene's spider-based power meter platform, built to pair with the brand's P505 or P515 sensor for a lighter, stiffer, race-ready crankset.
Overview
The TEO is Magene's dedicated carbon crank for its spider-based power meter platform — it's the crank arms only, with no power meter electronics built in, and carries a dedicated card slot that's designed specifically to take Magene's P505 or P515 spider power meters, sold separately. It swaps in a HI-MOD carbon fibre crank arm in place of a standard alloy one while keeping the same spider interface those power meters already use.
The crank arm is HI-MOD carbon fibre, built with a dual-channel high-pressure forming process, running on a 29mm DUB spindle in 7075 aluminium. Geometry is tuned for modern road groupsets, with a 148mm Q-factor and 44.25mm chainline, and the crank is rated to hold its shape under a 1500N test load applied at the pedal.
It's built for riders already running, or planning to run, a Magene P505 or P515 spider power meter who want to shave weight off the crank arm itself rather than stay on the standard aluminium version.
Why You'll Like It
HI-MOD Carbon Fibre Crank Arms
A lighter crank arm than Magene's standard aluminium option, built with a dual-channel high-pressure forming process for a stiff, race-ready feel.
Dedicated Card Slot for Magene Power Meters
Built specifically to take a Magene P505 or P515 spider power meter, so there's no compatibility guesswork when pairing the two.

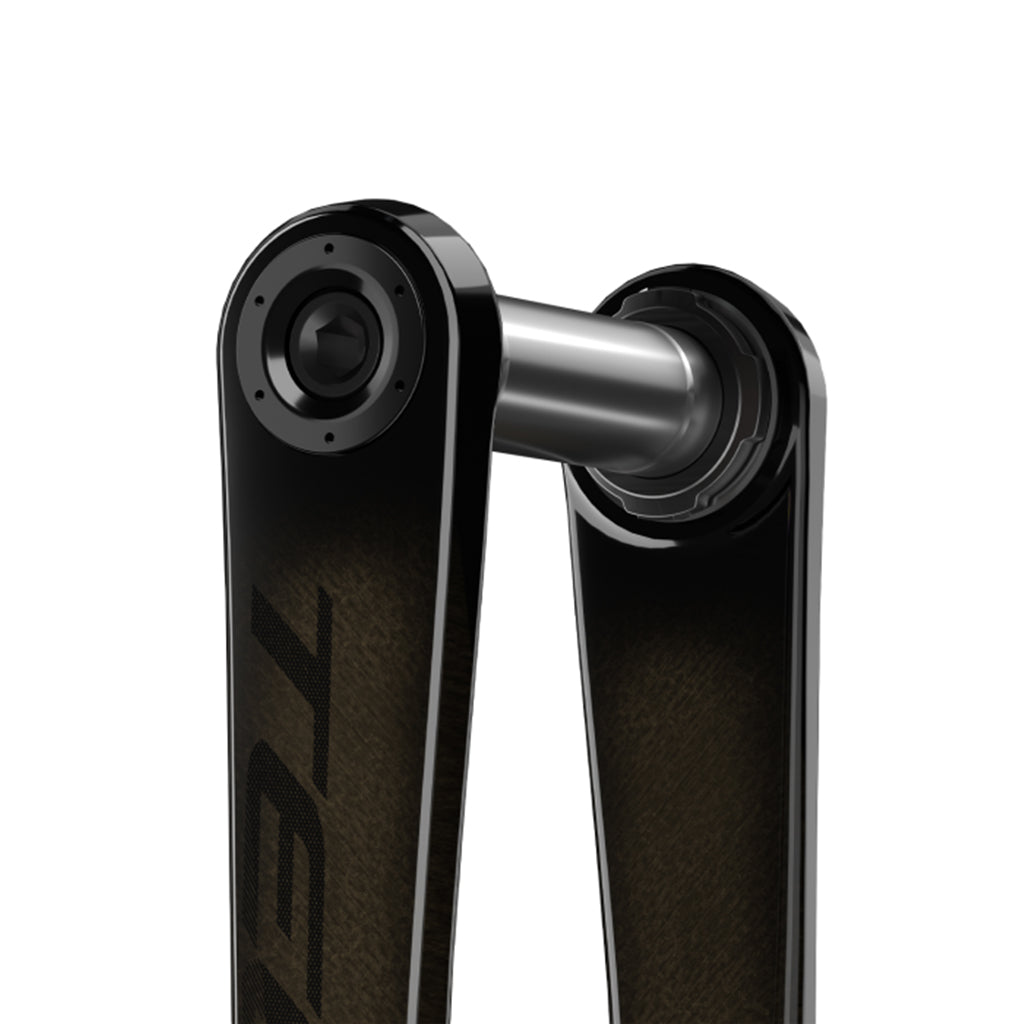

29mm DUB Spindle
A 29mm DUB spindle in 7075 aluminium, with a conversion kit lock ring included for fitting to compatible bottom brackets.
Road-Tuned Geometry
A 148mm Q-factor and 44.25mm chainline are dialled in for modern road groupsets, so the crank sits where a road drivetrain expects it to.
Who Is It For?
This is built for riders already running, or planning to build out, a Magene P505 or P515 spider-based power meter who want a lighter carbon crank arm rather than the standard aluminium one — club racers and serious weekend riders chasing marginal weight gains on a bike they already train and race on.
It also suits anyone upgrading an existing Magene-equipped bike piece by piece, since the spider interface and card slot carry over directly — a common approach among Indian riders building up a power meter setup gradually rather than buying a complete groupset at once.
Good to Know
- This is the crank arm only — pair it with a Magene P505 or P515 spider-based power meter (sold separately) for a complete power-measuring crankset.
- A conversion kit lock ring and washers are included in the box to help fit the 29mm DUB spindle to compatible bottom brackets.
- Shares its spider interface and card slot with the rest of Magene's P505/P515 crank line, so spare spiders and accessories from that platform are interchangeable.
Technical Specifications
- Item Code: TEO-CRANK
- Crank Arm Material: HI-MOD Carbon Fibre
- Spindle: 29mm DUB, 7075 Aluminium
- Crank Length: 165mm
- Weight: 325g ± 10g (170mm reference; may vary slightly at 165mm)
- Chainline: 44.25mm
- Q-Factor: 148mm
- Power Meter Compatibility: Dedicated card slot for Magene P505 / P515 spider-based power meters (sold separately) — no power meter electronics included on this crank
- In The Box: 2x TEO carbon crank arms, conversion kit lock ring, 5x washers, quick start guide
Additional Information
- Country of Origin: China
- Imported By: Sign In Retails, Plot-16, Sector-33, Gurgaon - 12201, Haryana, India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Power Meters
