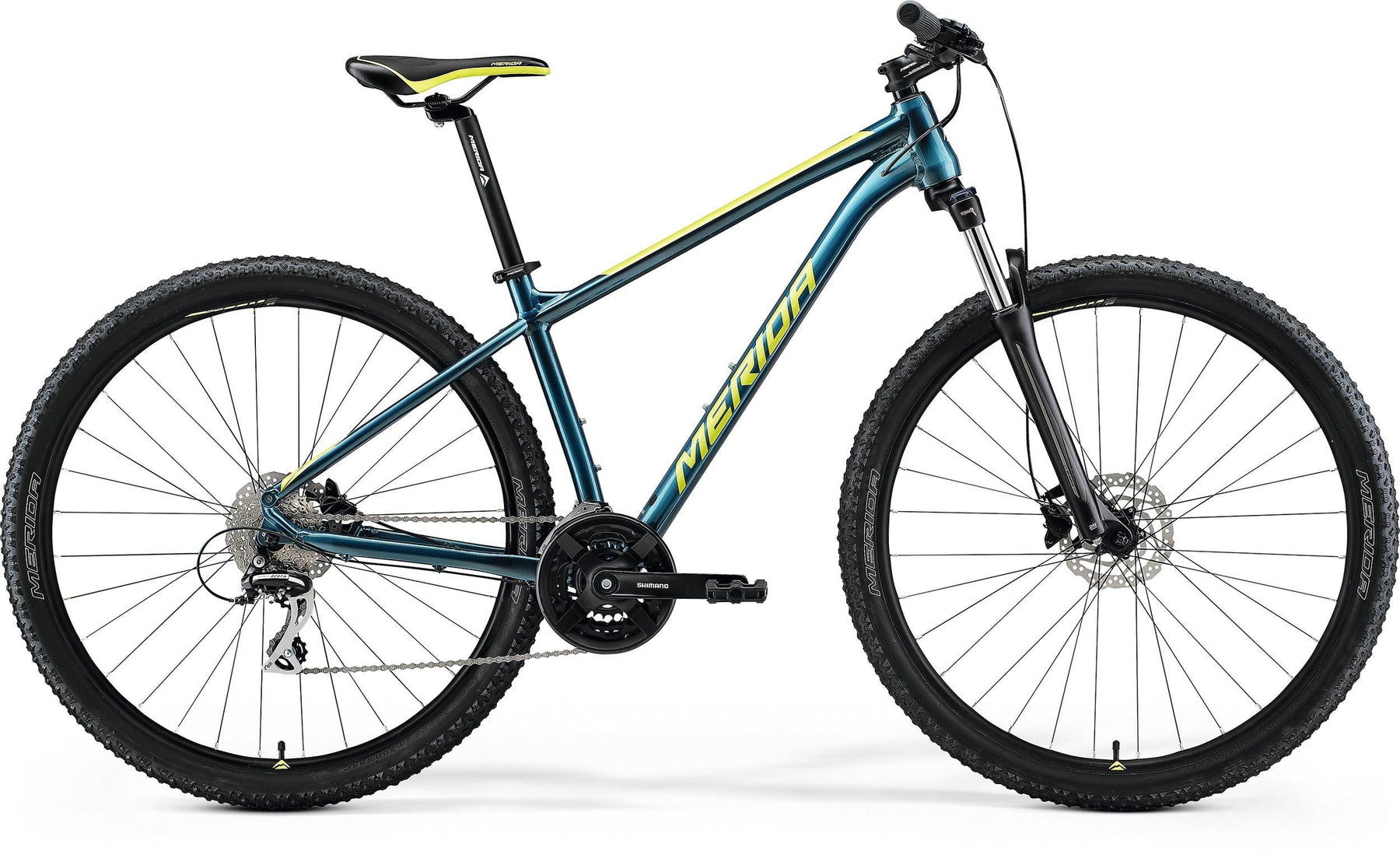

Merida Big.Nine 20-3x (Teal-Blue/Lime)

Merida Big.Nine 20-3x (Teal-Blue/Lime)

A62211A01540

Regular priceRs. 54,990
/
Tax included. Shipping calculated at checkout.

Size

🚚 Delivery Estimated between 30 March and 04 April.


Description

Aluminium hardtail, sporting fast-rolling 29er wheels, 100 mm of front suspension and a triple chainset setup, giving you plenty of gears to choose from and lots of comfort and control out on the trails

Triple chainring equipped entry-level 29er aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

Features
  • Double butted aluminium frame with 29er wheels
  • Less aggressive and more upright geometry for maximum control and comfort
  • SR Suntour 100 mm travel suspension fork with lockout
  • Shimano 8-speed drivetrain with triple chainring setup
  • Hydraulic disc brakes. Internal cable routing
Specifications
  • Wheel Size- 29"
  • Braking System- Hydraulic Disc
  • Frame Material- Aluminium
  • Fork Material- Aluminium
Components
  • Frame- BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
  • Fork- SR Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout, 29x2.25" max. wheelsize
  • Bottom Bracket- FSA TH-7420ST-W, CARTRIDGE BEARING
  • Chain- SUNRACE M84
  • Crank- Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL
  • Shift Levers- Micro Shift TS39-L / Micro Shift TS39-8R
  • Front Derailleur- Shimano FD-TY700
  • Rear Derailleur- Shimano RD-M360
  • Grips/Bartape- MERIDA EC
  • Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
  • Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • Saddle- MERIDA SPORT COMFORT
  • Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
  • Front Brake- Power DS100, 2 piston, hydraulic disc brake
  • Rear Brake- Power DS100, 2 piston, hydraulic disc brake
  • Front Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Rear Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Tire- MERIDA K1080, 29x2.2", wire
  • Pedal- VP VPE-891
Geometry
FRAME SIZE S M L XL XXL
TYRE SIZES 29" 29" 29" 29" 29"
ST SEAT TUBE [MM] 370 430 470 510 560
TT TOP TUBE [MM] 570 590 610 630 650
CS CHAIN STAY LENGTH [MM] 440 440 440 440 440
HTA HEAD TUBE ANGLE [°] 70 70 70 70 70
STA SEAT TUBE ANGLE [°] 73 73 73 73 73
BD BOTTOM BRACKED DROP [MM] 60 60 60 60 60
HT HEAD TUBE [MM] 100 115 130 145 160
FL FORK LENGTH [MM] 506 506 506 506 506
R REACH [MM] 382 398 414 429 445
S STACK [MM] 614 628 642 656 670
WB WHEEL BASE [MM] 1069 1090 1110 1131 1152
SH STAND OVER HEIGHT [MM] 679 727 763 800 843
