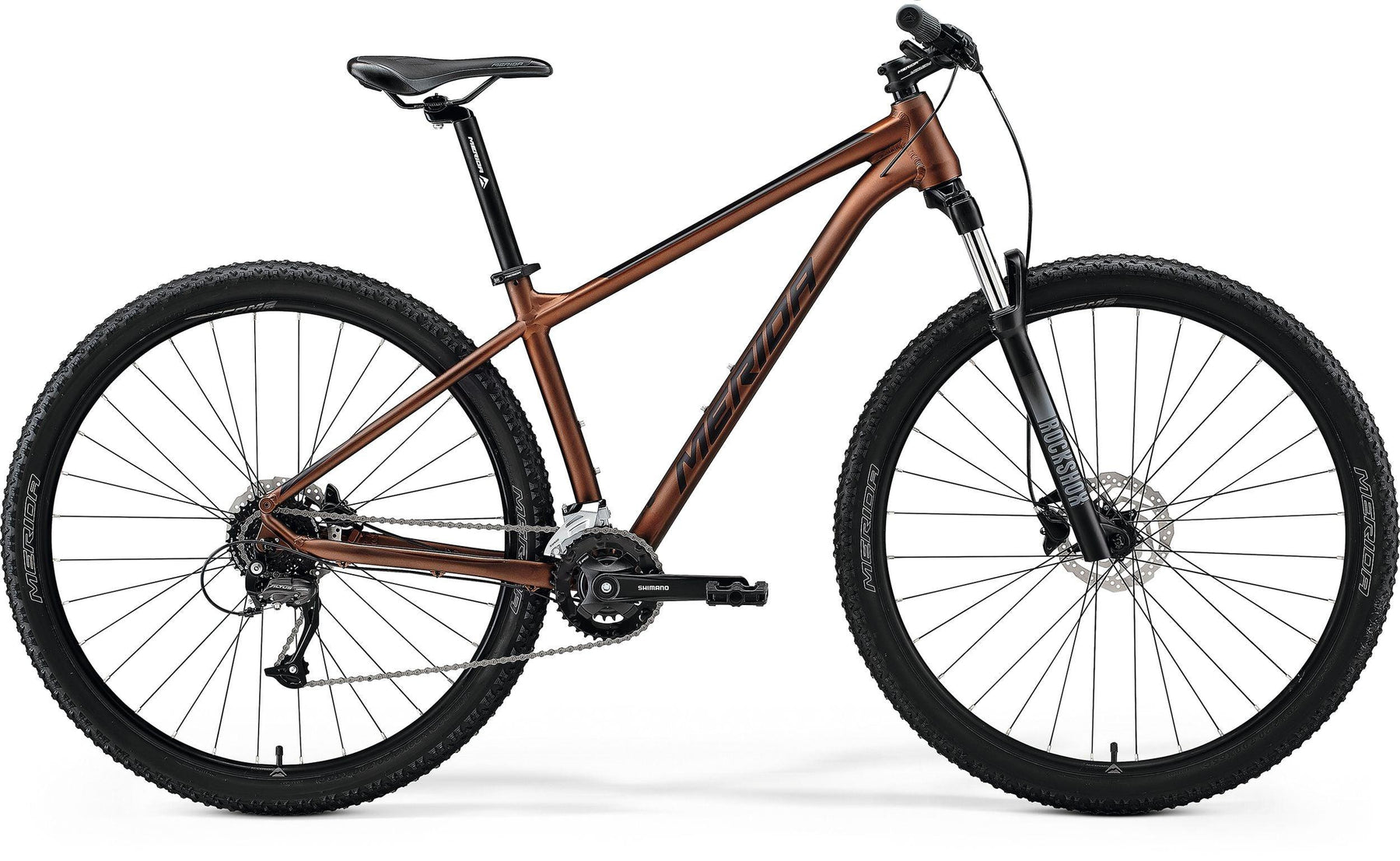

Merida Big.Nine 60-3x (Matt Bronze/Black)

Merida Big.Nine 60-3x (Matt Bronze/Black)

A62211A01535

Regular priceRs. 65,990
/
Tax included. Shipping calculated at checkout.

Size

🚚 Delivery Estimated between 31 March and 05 April.



Specifications
  • Wheel Size- 29"
  • Braking System- Hydraulic Disc
  • Frame Material- Aluminium
  • Fork Material- Aluminium
Components
  • Frame- BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
  • Fork- Rock Shox Judy TK, Coil, 100mm suspension travel Lockout, 46mm fork offset, 29x2.25" max. wheelsize,
  • Bottom Bracket- Shimano BB-UN100
  • Chain- KMC M99
  • Crank- 170 mm-S, 175 mm-M/XXL
  • Shift Levers- Shimano ST-EF505
  • Front Derailleur- Shimano FD-M2000
  • Rear Derailleur- Shimano RD-M370
  • Grips/Bartape- MERIDA EC
  • Handlebar- MERIDA CC, material: aluminium, 690mm width, 15mm rise
  • Stem- MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle. 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • Saddle- MERIDA Sport comfort
  • Seatpost- MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
  • Front Brake- Shimano ST-EF505, BR-MT200 brake caliper
  • Rear Brake- Shimano ST-EF505, BR-MT200 brake caliper
  • Front Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Rear Wheel- MERIDA CC, 17mm inner width, material: aluminium
  • Tire- MERIDA K1080, 29x2.2", wire
  • Pedal- VP VPE-891
Geometry
FRAME SIZE S M L XL XXL
TYRE SIZES 29" 29" 29" 29" 29"
ST SEAT TUBE [MM] 370 430 470 510 560
TT TOP TUBE [MM] 570 590 610 630 650
CS CHAIN STAY LENGTH [MM] 440 440 440 440 440
HTA HEAD TUBE ANGLE [°] 70 70 70 70 70
STA SEAT TUBE ANGLE [°] 73 73 73 73 73
BD BOTTOM BRACKET DROP [MM] 60 60 60 60 60
HT HEAD TUBE [MM] 100 115 130 145 160
FL FORK LENGTH [MM] 506 506 506 506 506
R REACH [MM] 382 398 414 429 445
S STACK [MM] 614 628 642 656 670
WB WHEEL BASE [MM] 1069 1090 1110 1131 1152
SH STAND OVER HEIGHT [MM] 679 727 763 800 843

NO Exchanges or Returns on this product.

Please check our detailed Returns Policy for more information.

Merida Bicycles are covered by the following warranty terms ensuring freedom from defects in materials and workmanship.Models from 2011 onwards are covered by the following warranty
Frameset:

  • Limited Lifetime Warranty for the Frameset only against structural defects in material or workmanship.
  • A rider and equipment weight limit of 120kg applies; 140kg for performance and hybrid eBikes.
  • Category 5 models carry a 5 year warranty

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase.

  1. Merida branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
  2. Bikes used for Racing are excluded.

All other original parts shall be covered exclusively by the stated warranty of their original manufacturer

Exclusions

  • Misuse or Negligence: The warranty does not cover damages resulting from misuse, abuse, or negligent handling of the products, including but not limited to improper installation, disassembly, or modification.

  • Unauthorized Repairs or Alterations: Any attempt to repair or alter the bicycle lights by individuals or service providers not authorized by the manufacturer will void the warranty.

  • Natural Wear and Tear: Normal wear and tear, including cosmetic deterioration, scratches, and fading over time, are excluded from the warranty coverage.

  • Accidents or External Forces: Damages caused by accidents, collisions, or exposure to extreme external forces (e.g., impacts, falls, or severe weather conditions) are not covered under this warranty.

  • Incompatible Use: The warranty does not extend to damages resulting from using the bicycle lights & Computers in ways inconsistent with their intended purpose or specifications.

  • Failure to Follow Instructions: Damages arising from a failure to follow the product's operating instructions, guidelines, or recommended practices as outlined in the user manual are not covered.

  • Battery Exclusions: For products with rechargeable batteries, the warranty may exclude battery degradation over time or failures caused by non-compliance with proper charging procedures.

  • Third-Party Accessories: Damages caused by the use of third-party accessories, components, or modifications not explicitly approved by the manufacturer are not covered.

  • Failure to Provide Proof of Purchase: Warranty claims may require proof of purchase, and failure to provide such documentation may result in the exclusion of the product from warranty coverage.

Terms & Conditions

  • Service must be performed by an authorized retailer.
  • Insurance, handling and transportation charges to Distributor shall be borne by Customer.
