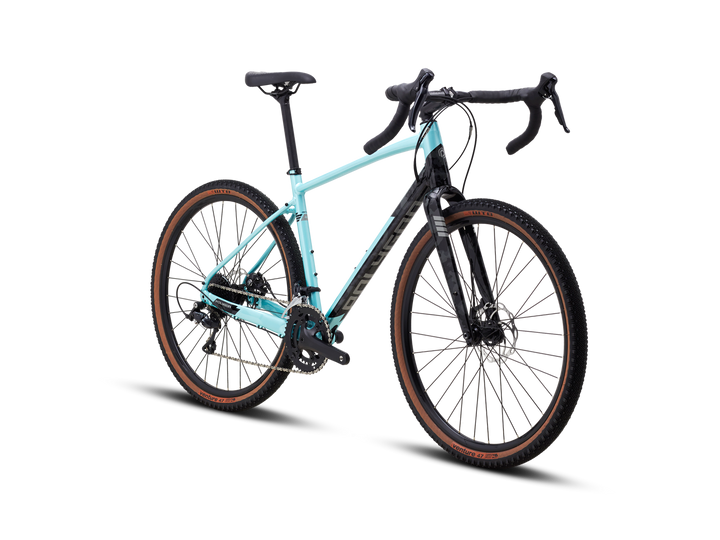

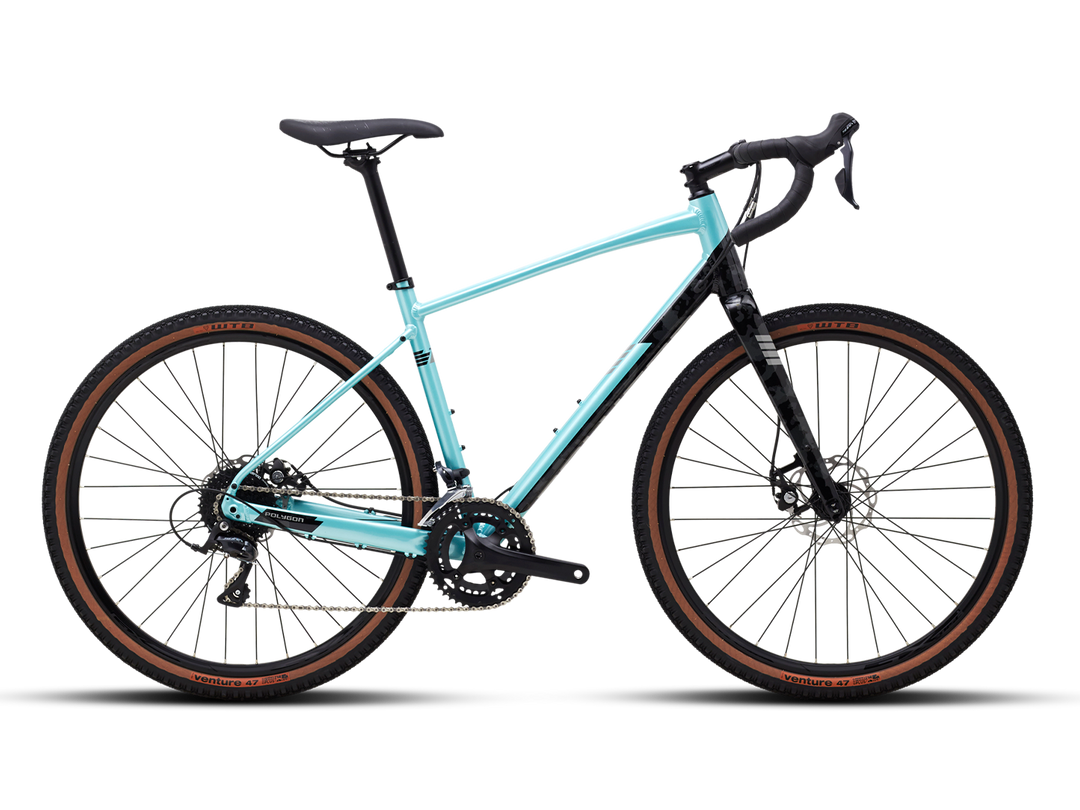

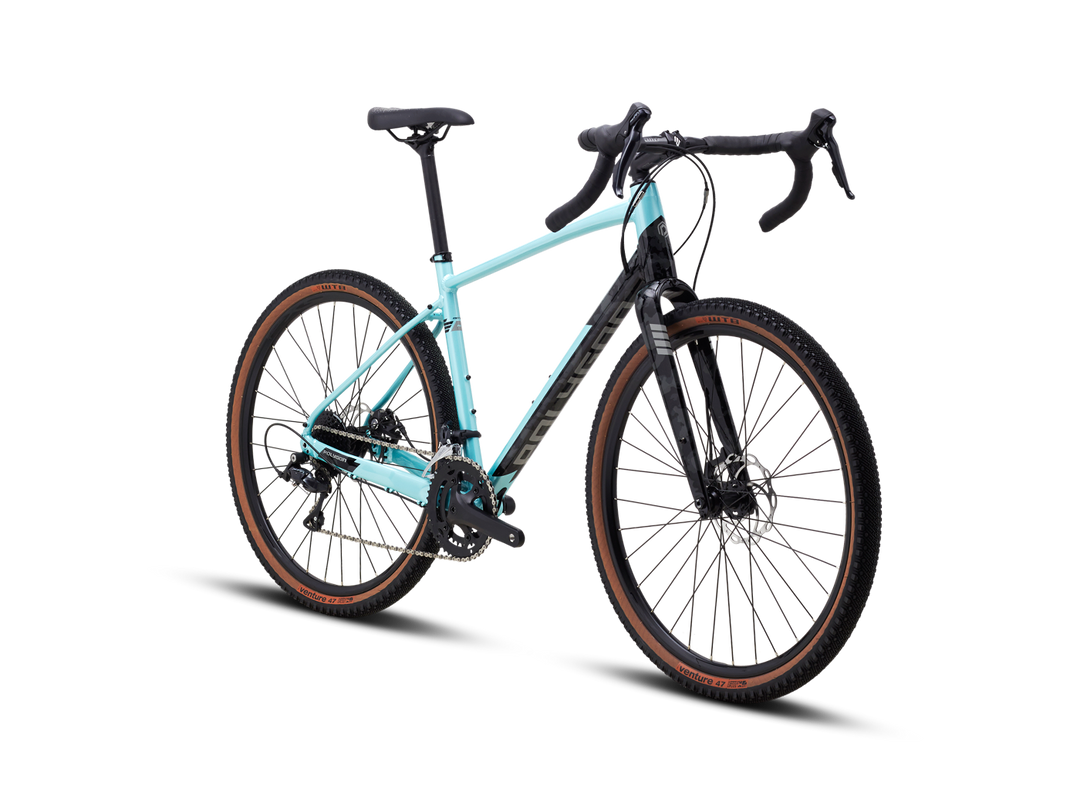

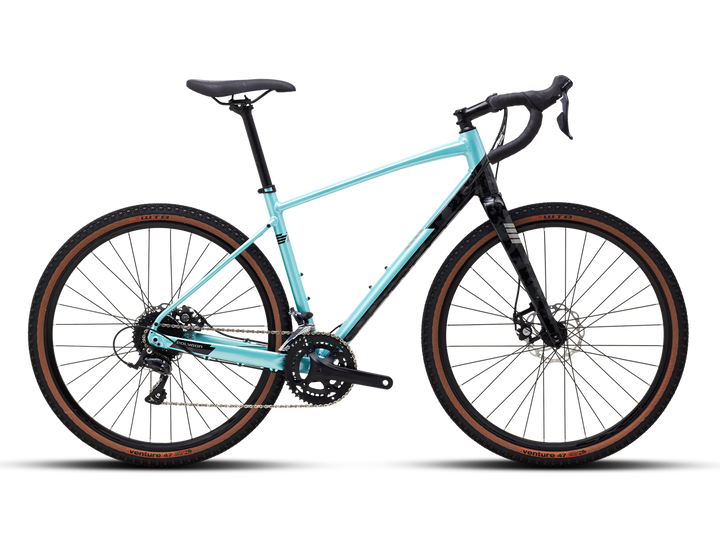

Polygon Bend R2 (Blue/Black)
Polygon Bend R2 (Blue/Black)
Polygon Bend R2 (Blue/Black)
Polygon Bend R2 (Blue/Black)
Polygon Bend R2 (Blue/Black)
Polygon Bend R2 (Blue/Black)

Polygon Bend R2 (Blue/Black)

502610002

Regular priceRs. 84,990
/
Tax included. Shipping calculated at checkout.

🚚 Delivery Estimated between 29 February and 05 March.

Description

The Polygon Bend R was designed with a taller head tube for greater comfort and a more upright riding position. This gravel bike features a lightweight ALX frame with specific off-road geometry, extra tire clearance, and disc brakes. The Bend R was built to accommodate a wider tire that gives the rider the option to ride tarmac, explore the forest, or ride miles of untraveled farming roads. This bike is the ultimate blend of comfort and versatility for further exploration.

Features
  • ALX Alloy
  • Internal Routing
Specifications
  • Intended Use- Gravel
  • Wheel Size- 27.5"
  • Braking System- Mechanical Disc
  • Frame Material- Aluminium
  • Fork Material- Carbon
Components
  • Frame- ALX GRAVEL FRAME - CARRIER & FENDER READY
  • Fork- CARBON RIGID FORK W/FLATMOUNT - CARRIER & FENDER READY
  • Bottom Bracket- CARTRIDGE BB
  • Chain- KMC X9
  • Crank- ALLOY CRANKSET
  • Shift Levers- SHIMANO SORA ST-R3000
  • Cassette- SHIMANO CS-HG200
  • Rear Derailleur- SHIMANO SORA RD-R3000
  • Handlebar- ENTITY EXPERT, ALLOY
  • Stem- ENTITY EXPERT, ALLOY
  • Saddle- ENTITY SADDLE
  • Seatpost- ENTITY EXPERT, ALLOY
  • Front Brake- TEKTRO C400 MECHANICAL DISC BRAKE
  • Rear Brake- TEKTRO C400 MECHANICAL DISC BRAKE
  • Front Wheel- ALLOY DOUBLE WALL WHEELSET 32H
  • Rear Wheel- ALLOY DOUBLE WALL WHEELSET 32H
  • Tire- PERFORMANCE TIRE 650X47C TUBELESS READY
Geometry
S M L
Height (cm) 150-163 163-175 175-188
Seat Tube Length (A) 430 480 535
Seat Tube Angle (B) 74 74 74
Effective Seat Tube Angle (C) 74 74 74
Head Tube Length (D) 140 170 200
Head Tube Angle (E) 71 71.5 72.5
Effective Top Tube (F) 528.2 551.9 576.2
Bb Height (G) 261.5 261.5 261.5
Bb Offset (H) 80 80 80
Chainstay Length (I) 420 420 420
Wheelbase (J) 999 1019 1034
Frame Reach (K) 365 380 395
Frame Stack (L) 569.1 599.5 632
Standover Height (M) 677.4 720.3 767



NO Exchanges or Returns on this product.

Check our detailed Return Policy for more information.
