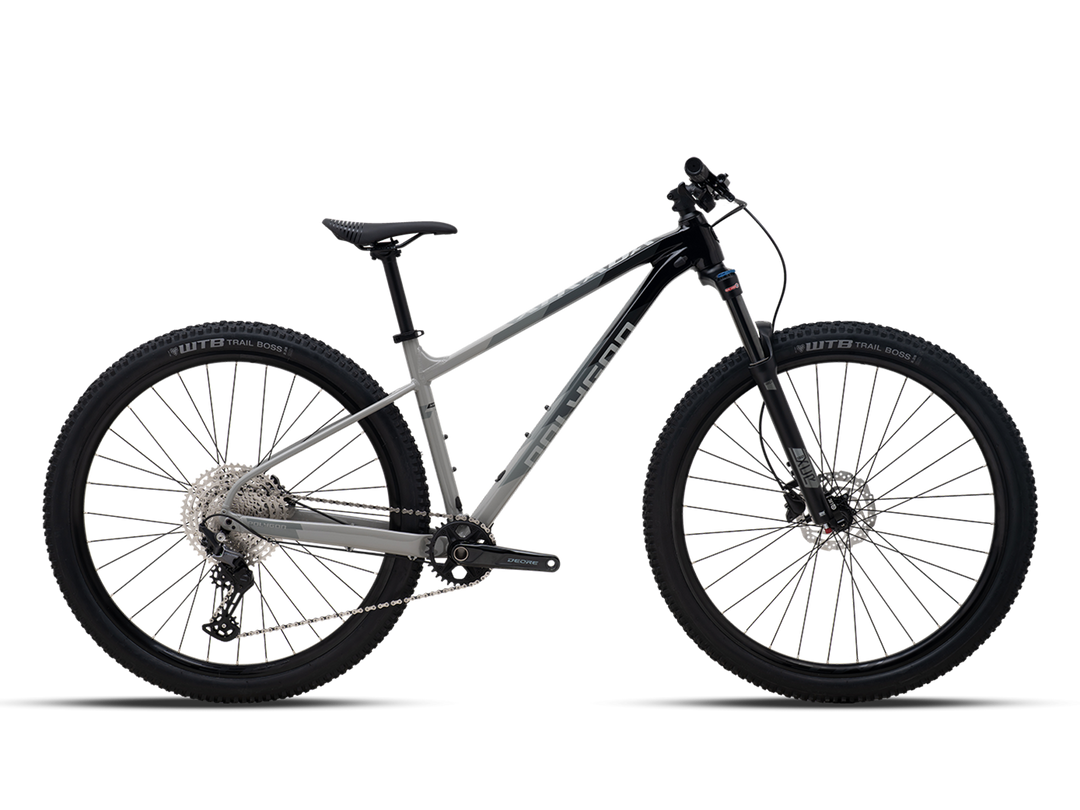

Polygon Xtrada 7 (Purple White)
87000788
🚚 Delivery Estimated between 12 May and 17 May.
Description
The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure. It is Impeccably versatile, effortlessly fast, and obsessively comfortable.
Features
- Perfectly fits the rider for an efficient ride and optimum riding experience with Wheel Fit Size System
- Better acceleration and cornering with short chainstay
- Accompanied with suspension fork to smooth out the ride on rough terrains.
- Steady handling with Tapered Headtube
- Easier shift with 1x Groupset
Specifications
- Intended Use- Cross Country
- Wheel Size- 27.5"/29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- ALX XC TRAIL
- Fork- SR SUNTOUR XCR32 AIR LOR 120mm (27.5" & 29") TRAVEL
- Bottom Bracket- SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm
- Chain- KMC X-12
- Crank- SHIMANO MT-510-1 BOOST 32T, 170mm (S, M) / 175mm (L, XL)
- Shift Levers- SHIMANO DEORE SL-M6100-R, 1x12-SPEED TRIGGER
- Cassette- 12 SPEED 11-51T
- Rear Derailleur- SHIMANO DEORE RD-M6100-SGS DIRECT ATTACH
- Handlebar- ENTITY XPERT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree
- Stem- ENTITY XPERT ALLOY, EXT: 40mm, BAR BORE: 31.8mm, RISE/DROP: 7degree
- Saddle- ENTITY VOID, STEEL ø 7mm
- Seatpost- ENTITY XPERT ALLOY, DXL: 27.2 x 350mm, SEAT CLAMP: 31.8mm W/ QR
- Front Brake- SHIMANO SM-RT10 160mm CENTER-LOCK
- Rear Brake- SHIMANO SM-RT10 160mm CENTER-LOCK
- Front Wheel- ENTITY XL2 DISC
- Rear Wheel- ENTITY XL2 DISC
- Tire- WTB TRAIL BOSS COMP 27.5"x2.25" / 29"x2.25"
| S (27.5″) | M (27.5″) | L (27.5″) | M (29″) | L (29″) | XL (29”) | |
|---|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 385 | 425 | 460 | 425 | 460 | 500 |
| Seat Tube Angle (B) | 75 | 75 | 75 | 75 | 75 | 75 |
| Effective Seat Tube Angle (C) | 75 | 75 | 75 | 75 | 75 | 75 |
| Head Tube Length (D) | 95 | 100 | 105 | 95 | 100 | 105 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 590 | 612 | 598 | 619 | 640 |
| Bb Height (G) | 310 | 310 | 310 | 309 | 309 | 309 |
| Bb Offset (H) | 45 | 45 | 45 | 65 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106 | 1128 | 1150 | 1147 | 1169 | 1191 |
| Frame Reach (K) | 410 | 430 | 450 | 430 | 450 | 470 |
| Frame Stack (L) | 593.8 | 599.3 | 603 | 629.3 | 633.2 | 637.8 |
| Standover Height (M) | 663 | 697 | 726 | 693 | 715 | 751 |
