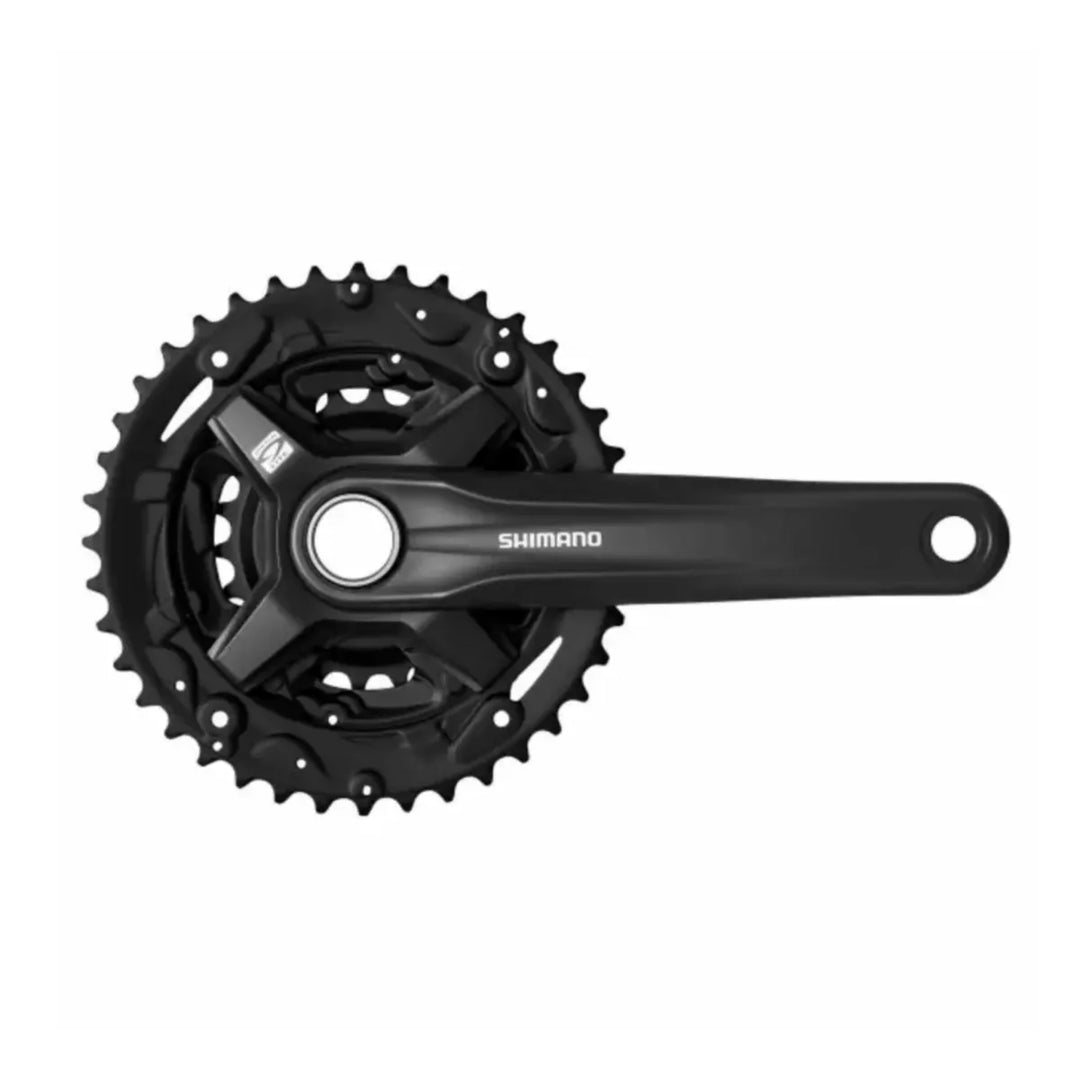

Shimano Acera FC-MT210-3 Pressfit Crankset (Black)
EFCMT2103CX002XL
Estimated Shipping Widget will be displayed here!
Description
SHIMANO - 2-PIECE CRANKSET - MTB - 3x9-speed
With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-3 is designed for 3x9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.
Feature
- Smooth and precise shifting performance for trail focused riders
- Narrow Q-factor provides comfortable MTB riding
- HYPERDRIVE
- Cascading higher series MTB image
- Anodized crank
- 2-Piece Crankset
2-piece crank set
- Integrated crank arm and bottom bracket
- Increased rigidity with less weight
- Wider bearing positioning
- Rigidity is enhanced and pedaling force is efficiently transmitted
- Precision Bearings
- Low maintenance and simplified installation
HG Sprockets
The distinctively designed HYPERGLIDE sprockets incorporate specially positioned shift ramps and tooth profiles for improved chain control during shifting. Fast and responsive indexed shifting is the result.
The HG cassette sprocket, which was developed for the MTB 10-speed system, underwent comprehensive optimization to achieve super-highly efficient shifting.
Specification
| Rear speeds | 9 | ||
|---|---|---|---|
| Compatible chain | HG 9-speed | ||
| Chainline (mm) | 50 | ||
| P.C.D. (mm) | Riveted | ||
| Gear arms | 4 arm | ||
| Chainring combination | 44-32-22T 40-30-22T |
||
| Q-factor (mm) | 176 | ||
| Crank arm length (mm) | 165.0 | - | |
| 167.5 | - | ||
| 170.0 | X | ||
| 172.5 | - | ||
| 175.0 | X | ||
| 177.5 | - | ||
| 180.0 | - | ||
| Optional chain guard | With bash guard | - | |
| With chain guard | X | ||
| Without chain / bash guard | X | ||
| HOLLOWTECH II | - | ||
| 2-PIECE CRANKSET | X | ||
| HOLLOWTECH crank arm | - | ||
| OCTALINK | - | ||
| HOLLOWGLIDE | - | ||
| Compatible BB type | Outboard | X | |
| OCTALINK | - | ||
| Square | - | ||
| Recommended BB | Threaded (normal) | BB-MT500 | |
| Threaded (E-type) | - | ||
| Threaded (chain case) | - | ||
| Pressfit | BB-MT500-PA | ||
| Axle length of BB-UN / ES (mm) | Threaded (normal) | - | |
| Threaded (E-type) | - | ||
| Threaded (chain case) | - | ||
| Threaded BB shell width | 68mm | X | |
| 73mm | X | ||
| 83mm | - | ||
| Chain case compatible | - | ||
| Crank arm | Material | Aluminum | |
| Finish | Anodized | ||
| Crank axle | Material | Steel | |
| Finish | Plated | ||
| Outer ring | Material | Steel | |
| Finish | Painted | ||
| Middle ring | Material | Steel | |
| Finish | Painted | ||
| Inner ring | Material | Steel | |
| Finish | Painted | ||
| Stainless chain guard fixing bolt | X | ||
| Crank fixing bolt included | X | ||
Additional Info
- Country of Origin: Malaysia/Japan
- MRP: Rs. 2680.00 incl., of all taxes.
MRP changes as per variant selection - Imported By: Shimano South Asia Pvt Ltd. , 19 , (Ground Floor) Kumara Krupa Road , Bangalore – 560 001 , Karnataka , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: support@bumsonthesaddle.com
- Commodity: Cranksets
