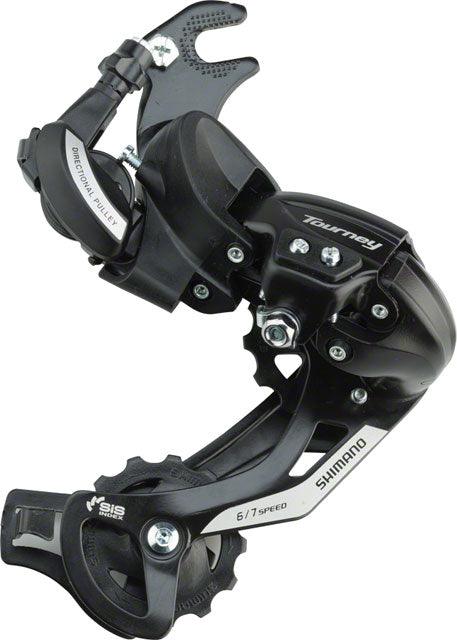

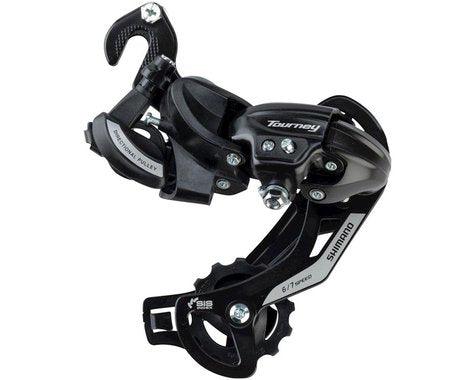

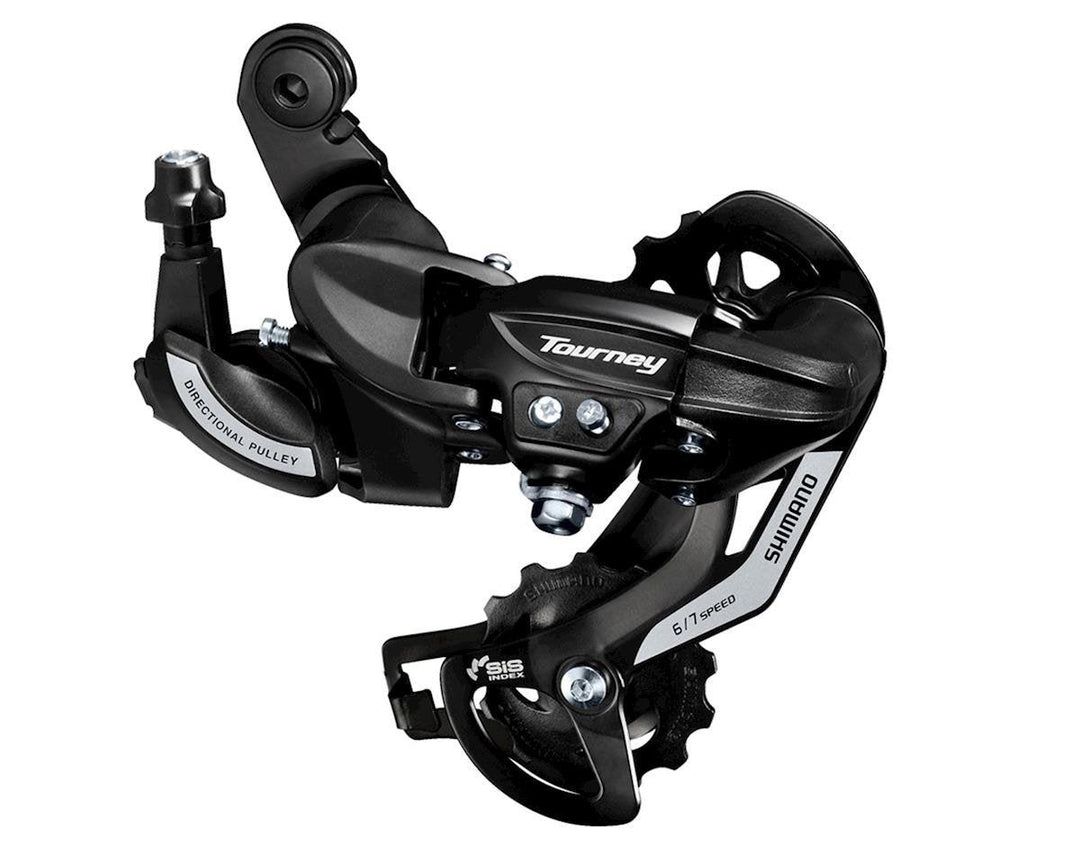

Shimano RD-TY500 Tourney Rear Derailleur - 6/7 Speed
ERDTY500B
Description
SHIMANO TOURNEY TY - Rear Derailleur - Long Cage - 6/7-speed
Compatible with 6 and 7-speed SIS Index Shifting drivetrains, the SHIMANO TOURNEY TY500 derailleur is offered in a wide range of fitments and cage options.
Feature
- Light action shifting for stress-free long riding
- Smooth, light and reliable shifting performance
- Double servo-panta mechanism
- Quick and easy assembly
- Lighter shifting operation and reduced outer cable head distortion
- wheel-type cable guide pulley
- Pre-assembled inner cable fixing nut
- Stringently tested with the highest quality standards
- Created with love for bikes and passion for outdoor adventures
- Made by experienced technicians using cutting-edge technology
Technology
SIS Rear Index Shifting System
The system constituents such as the index mechanism built in the shifting lever, the frictionless SIS rear index shifting cable and the smooth action rear derailleur realize the SHIMANO INDEX SYSTEM.
Double Servo
SHIMANO’s double servo-panta mechanism enables the rear derailleur to move in an optimum path.
The guide pulley tracks the cogs closely while moving front to back, optimizing each shift. Perfect tracking contributes to the most accurate SIS shifting.
Keeps rear derailleur guide pulley an optimum distance from each sprocket.
HG Sprockets
The distinctively designed HYPERGLIDE sprockets incorporate specially positioned shift ramps and tooth profiles for improved chain control during shifting. Fast and responsive indexed shifting is the result.
The HG cassette sprocket, which was developed for the MTB 10-speed system, underwent comprehensive optimization to achieve super-highly efficient shifting.
Specification
|
Pulley cage
|
SGS
|
||
|---|---|---|---|
|
Rear speeds
|
7/6
|
||
|
Compatible chain
|
HG-UG 7/6-speed
|
||
|
Top-Normal spring type
|
Double servo
|
✔
|
|
|
Mount
|
Direct attachment (Conventional)
|
✔
|
|
|
Riveted adapter (Road type)
|
✔
|
||
|
Riveted adapter (BMX-Track type)
|
✔
|
||
|
Cable adjuster
|
✔
|
||
|
Max. front difference
|
20T
|
||
|
Total capacity
|
43T
|
||
|
Low sprocket
|
Max.
|
34T
|
|
|
Min.
|
28T
|
||
|
Top sprocket
|
Max.
|
14T
|
|
|
Min.
|
11T
|
||
|
Pulley
|
Teeth
|
13/13T
|
|
|
Bolts material
|
Steel
|
||
|
B-Axle
|
Material
|
Steel
|
|
|
Finish
|
Zinc plated
|
||
|
Bracket body
|
Material
|
Resin
|
|
|
P-Axle
|
Material
|
Steel
|
|
|
Finish
|
Zinc plated
|
||
|
Plate body
|
Material
|
Resin
|
|
|
Outer link
|
Material
|
Steel
|
|
|
Finish
|
Painted
|
||
|
Inner link
|
Material
|
Resin
|
|
|
Outer plate
|
Material
|
Steel
|
|
|
Finish
|
Painted
|
||
|
Inner plate
|
Material
|
Steel
|
|
|
Finish
|
Painted
|
||
|
Cable fixing Bolt
|
Material
|
Steel
|
|
|
Finish
|
Zinc plated
|
||
|
Stroke Adjusting Screw
|
Material
|
Steel
|
|
|
Finish
|
Zinc plated
|
||
