5259970

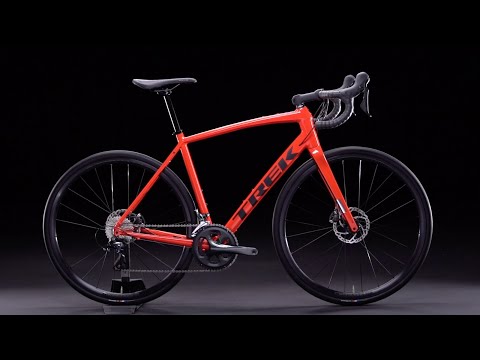

Domane AL 2 Disc is a fabulous pick for your first road bike. The lightweight frame is responsive yet stable for a fun, confidence-inspiring ride. Plus, it's built with reliable parts and disc brakes that provide better stopping power in any weather. Best of all, the comfort-focused design makes every single ride more enjoyable.
Every Domane AL Disc has a lightweight aluminium frame with internal cable routing and smooth welds for race-ready looks and performance.
The endurance geometry, wide tyres and carbon fork keep you comfortable when you’re setting distance records.
The Domane AL Disc is built in Trek's road racing heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.
Disc brakes, extra tyre clearance and mounts for a rack and mudguards give it the versatility for any all-road adventure.
FRAME | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
FORK | Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
SHOCK | - |
BOTTOM BRACKET | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
CHAIN | Shimano Sora HG71, 8-speed |
CRANK |
|
SHIFT LEVERS | Shimano Claris R2000, 8-speed |
FRONT DERAILLEUR | Shimano Claris R2000, 31.8 mm clamp |
CASSETTE | Shimano HG31, 11-32, 8-speed |
REAR DERAILLEUR | Shimano Claris R2000, long cage, 34T max cog |
GRIP/TAPE | - |
HANDLEBAR |
|
STEM |
|
SADDLE |
|
SEATPOST |
|
FRONT BRAKE | Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor |
REAR BRAKE | Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor |
FRONT WHEEL |
|
REAR WHEEL |
|
FRONT TIRE | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
REAR TIRE | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
PEDAL | - |
All measurements are provided in cm unless otherwise stated.
Frame size number | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
Wheel size | 700c | 700c | 700c | 700c | 700c |
A — Seat tube | 47.5 | 50 | 52.5 | 54.8 | 57.6 |
B — Seat tube angle | 74.2° | 73.7° | 73.3° | 73.0° | 72.7° |
C — Head tube length | 14.5 | 16 | 17.5 | 19.5 | 23.5 |
D — Head angle | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° |
E — Effective top tube | 53 | 54.2 | 55.4 | 56.7 | 58.6 |
G — Bottom bracket drop | 8 | 8 | 7.8 | 7.8 | 7.5 |
H — Chainstay length | 42 | 42 | 42 | 42.5 | 42.5 |
I — Offset | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
J — Trail | 5.9 | 5.9 | 6.1 | 6 | 6.3 |
K — Wheelbase | 100.3 | 101 | 100.8 | 102.2 | 103.8 |
L — Standover | 73.5 | 75.4 | 77.6 | 79.6 | 84.2 |
M — Frame reach | 37.1 | 37.4 | 37.7 | 38 | 38.5 |
N — Frame stack | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
Stem length | 90 | 90 | 100 | 100 | 110 |
