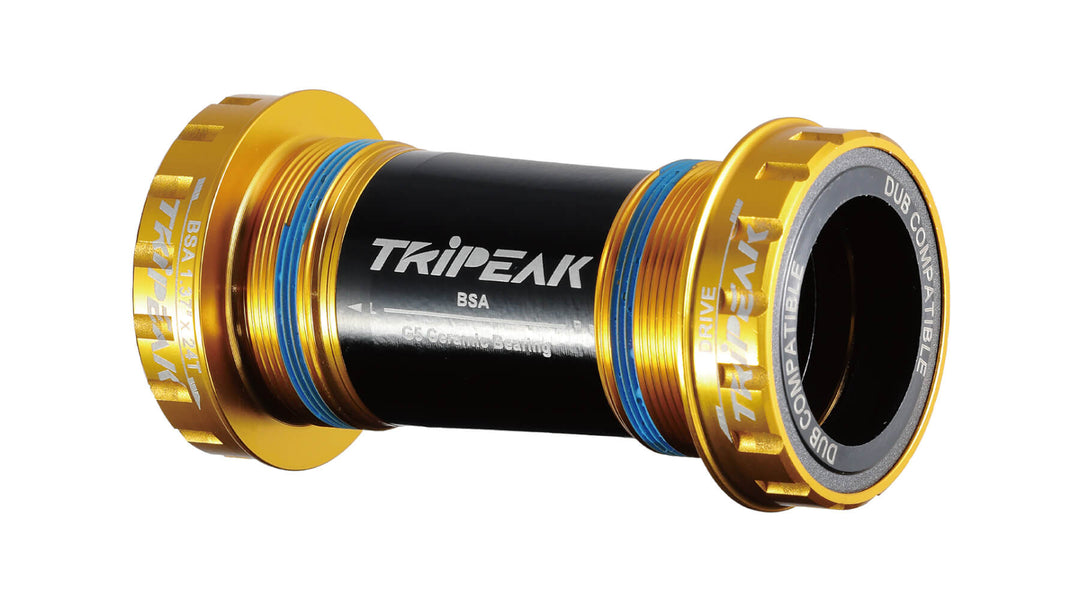

Tripeak 3-in-1 Core System G5 BSA-68MM Bottom Bracket (Gold)
EMA-BSA-SCCB2430GD
A BSA-threaded bottom bracket for riders who don't want their frame locked into one crankset, built around Tripeak's ceramic-grade G5 bearings and a core system that swaps between Shimano, SRAM, and ROTOR spindles without buying a second bottom bracket.
Overview
Tripeak built the 3-in-1 Core System around a simple problem: most bottom brackets lock you into one crank spindle standard, so switching a bike from a Shimano HollowTech II crank to a SRAM DUB or ROTOR 3D+ crank usually means buying a whole new bottom bracket. This BSA version uses the standard 68mm English-threaded shell that most road and gravel frames already have, with a set of swappable inner cores and end caps so the same shell can accept all three spindle standards.
What's actually equipped is a pair of Tripeak's own G5-grade ceramic bearings, running in an Alloy 6061 cup, plus the core and cap set for 24mm (Shimano HollowTech II), 28.99mm (SRAM DUB), and 30mm (ROTOR 3D+) spindles. The cup uses a 16-notch, 44mm-outer-diameter tool interface, so it installs and removes with a standard or universal bottom bracket tool - no specialist tool needed.
In practice, this is the bottom bracket to reach for on any standard BSA-threaded frame where you expect to change cranksets down the line: the shell and cups stay put, only the core changes.
Why You'll Like It
One shell, three crank standards: swap between Shimano HollowTech II, SRAM DUB, and ROTOR 3D+ cranks on the same bottom bracket by changing the core and caps, instead of buying a new unit for every crank standard.
Ceramic-grade smoothness: the G5 bearing grade is Tripeak's ceramic-ball spec, built to spin with less friction than their steel P05 equivalent.
Fits a standard BSA shell: threads straight into the 1.37" x 24 TPI English-threaded shell most road and gravel frames already use, so there's no frame compatibility question to work out first.
Installs with tools you already have: the 16-notch, 44mm-outer-diameter cup design fits a standard or universal bottom bracket tool, so no Tripeak-specific tool is required.
Who Is It For?
Riders on a standard BSA-threaded frame - still the most common bottom bracket standard on road and gravel bikes - who want a bottom bracket that won't limit which crankset they can run down the line. If your frame takes a 68mm English-threaded shell, this is the straightforward upgrade over a stock bearing.
It also suits BOTS customers building up a frame from scratch or swapping groupsets, where not knowing your next crankset in advance is normal - the core-swap system means that decision doesn't have to be made twice.
Good to Know
- Fit the core and cap set that matches your crank's spindle diameter (24mm, 28.99mm, or 30mm) before installing.
- Keep the BSA threads clean and lightly greased for a smooth, quiet install.
- A standard or universal bottom bracket tool (16-notch, 44mm) is all you need - no specialist tool required.
- Wipe the shell down after wet rides to keep the threads and bearing seals in good condition.
Technical Specifications
- Bottom Bracket Type: BSA, threaded, external bearing cups
- Bearing Type: Ceramic (Tripeak G5 grade)
- Thread Type: BSA, 1.37" x 24 TPI (English thread)
- Shell Width: 68mm (34.8mm shell diameter)
- Spindle Compatibility: 24mm (Shimano HollowTech II) / 28.99mm (SRAM DUB) / 30mm (ROTOR 3D+), via swappable cores and caps
- Bearing Set Weight: 79g (per set, without cap)
- Cup Material: Alloy 6061
- Tool Interface: 16-notch, 44mm outer diameter - fits standard/universal bottom bracket tools
- Included Caps: 2x 30mm caps, 2x 28.99mm caps + drive-side spacer, 2x 24mm caps
- Colour: Gold
